Electric Quadricycle

  • Dimensions (L×W×H): 4300×1650×2080mm

  • Wheelbase: 2860mm

  • Number of Wheels: 6

  • Rated Passenger Capacity (including driver): 2 persons

  • Minimum Turning Radius: 5.5m

  • Curb Weight: Approximately 960kg (subject to actual product)

  • Travel Speed (unloaded): 40km/h

  • Braking Distance (unloaded): Approximately 5m

  • Ground Clearance: 180mm

  • Charger: Onboard intelligent charger

  • Range: 80-100km

  • Tire Specification: 155/70-12 tubeless radial tires with rims

  • Electric Control Assembly: 72V Inpower controller

  • Suspension System: Front independent suspension, rear axle-type semi-independent suspension

  • Parking System: Drum hydraulic brake

  • Body: Steel load-bearing frame + stamped metal monocoque body + plastic molded dashboard

  • Battery: 12V 100AH, 6 units, 72V total (maintenance-free dry battery)

  • Front Suspension: MacPherson independent suspension

  • Rear Suspension: Integral rear axle + high-strength steel leaf spring + hydraulic telescopic shock absorber

Description

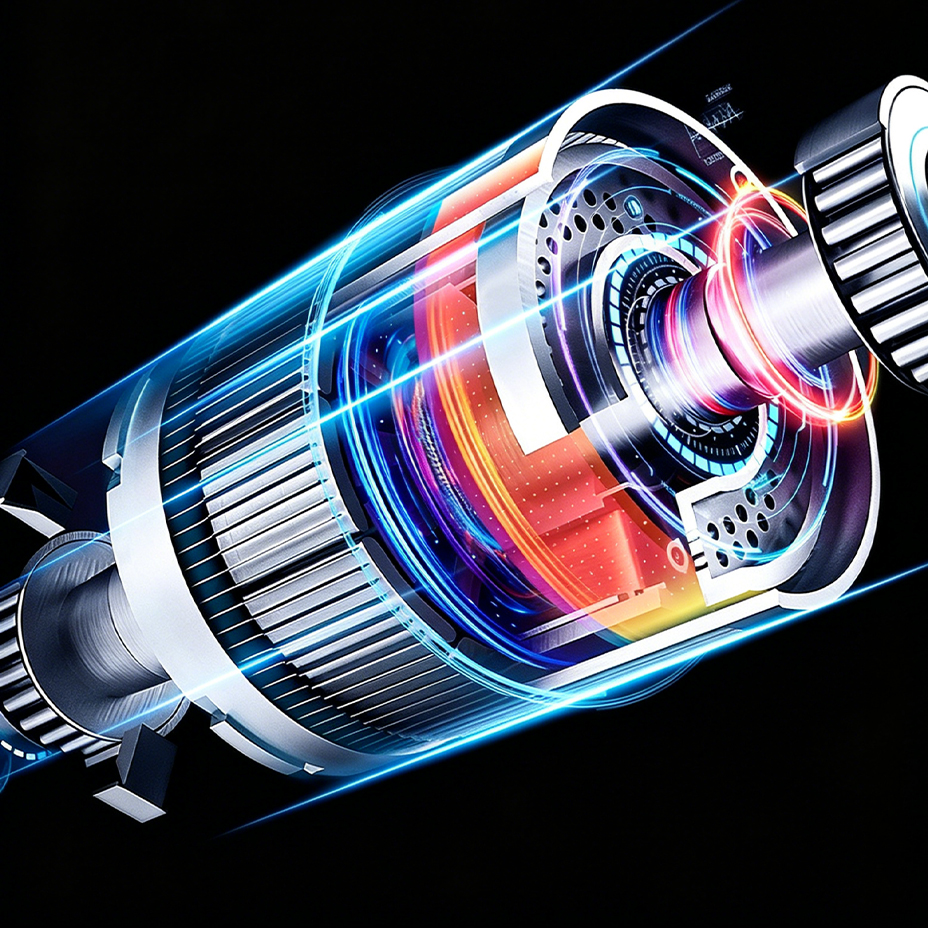

1. 5000W Differential Motor – Easily handles challenging terrains, delivering powerful performance. Fears no slopes and easily manages inclines and bumpy roads.  xp1.jpg

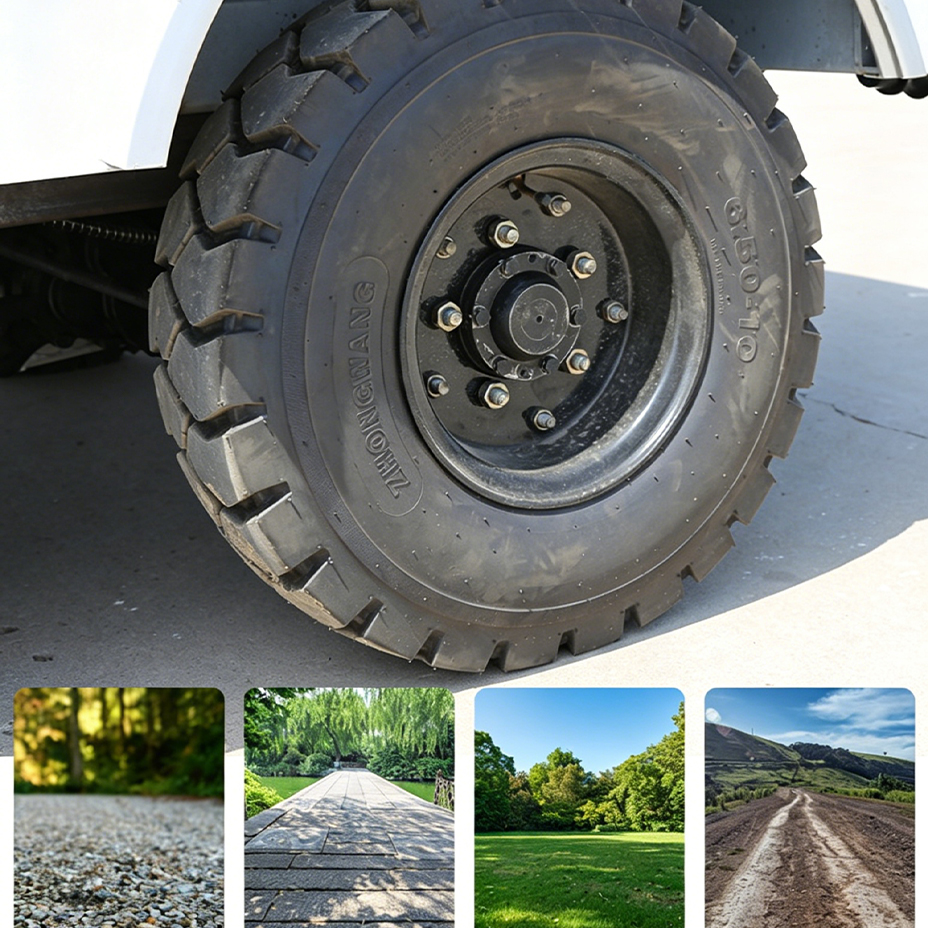

2. Tubeless Tires with Brake Assist – High elasticity, wear-resistant, with reliable grip and heat dissipation. Paired with a brake assist system for enhanced driving safety.  xp2.jpg

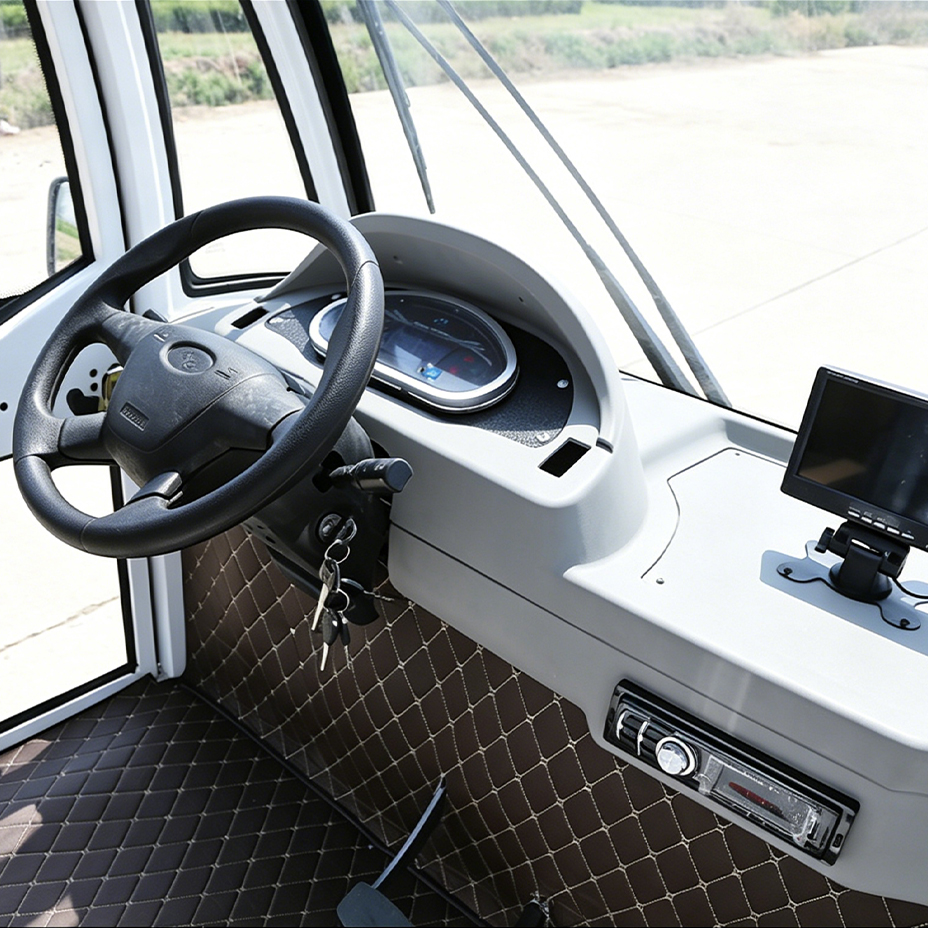

3. Optional Power Steering System – Effortlessly maneuver large vehicles. Short braking distance, equipped with brake assist to prevent rolling on slopes, ensuring high safety.  xp3.jpg

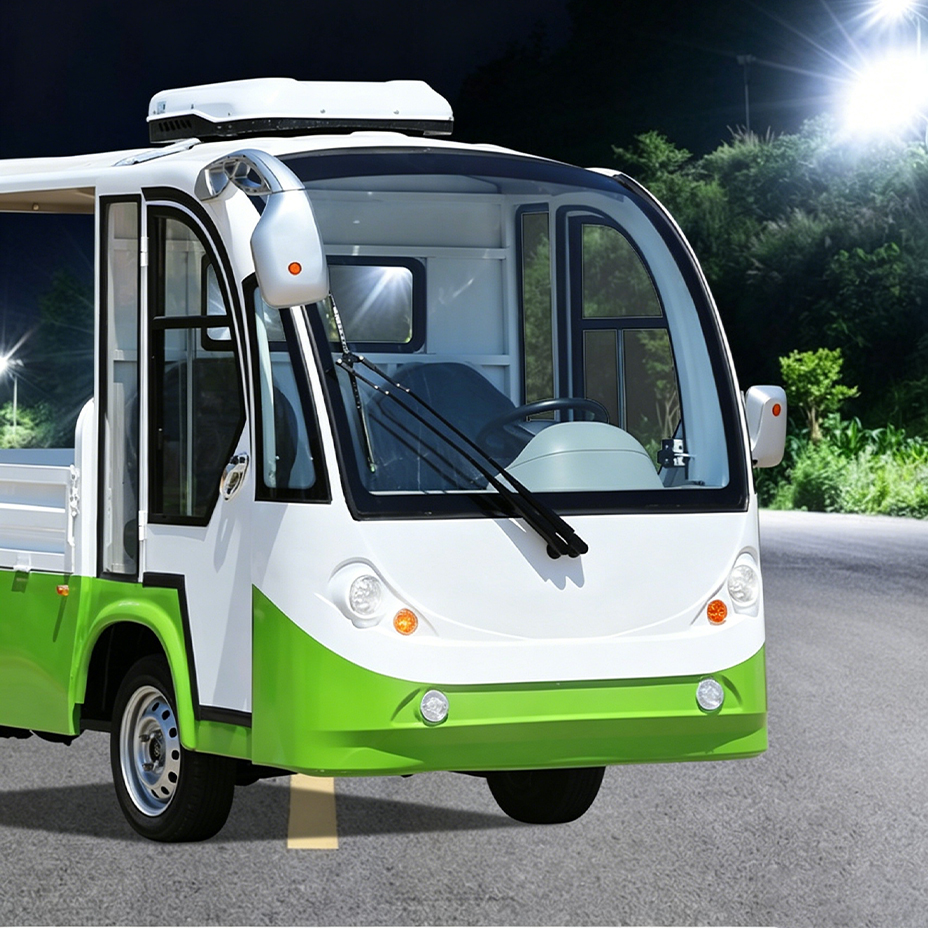

4. High-Brightness Headlights – Illuminates the dark. Automotive-grade lighting controls, complete with headlights, left/right turn signals, and brake lights.
