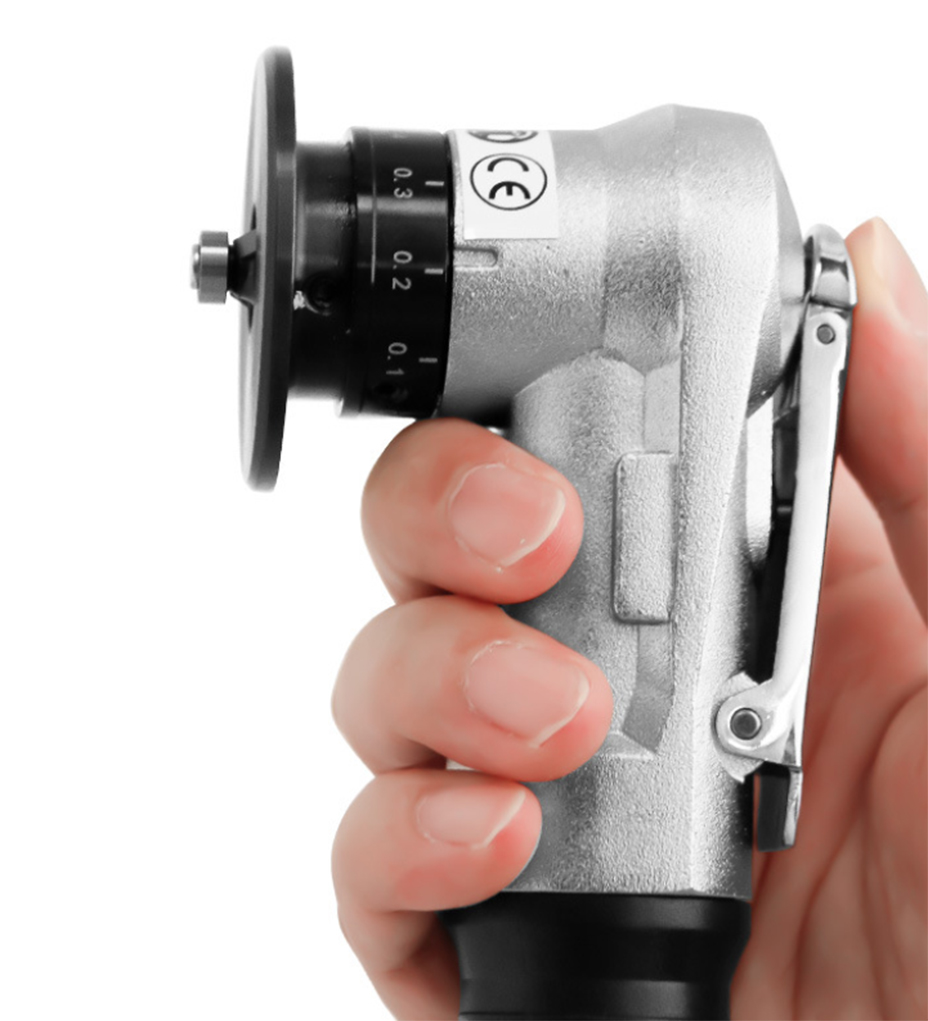

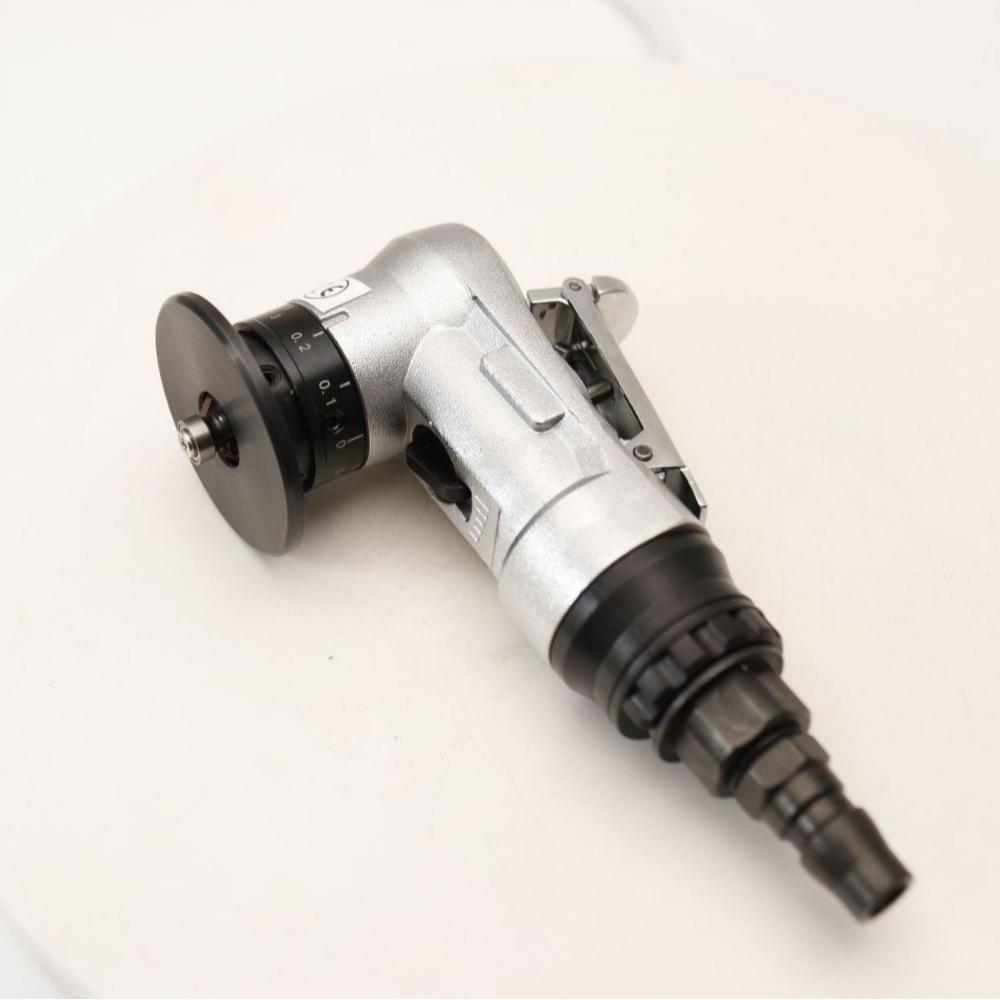

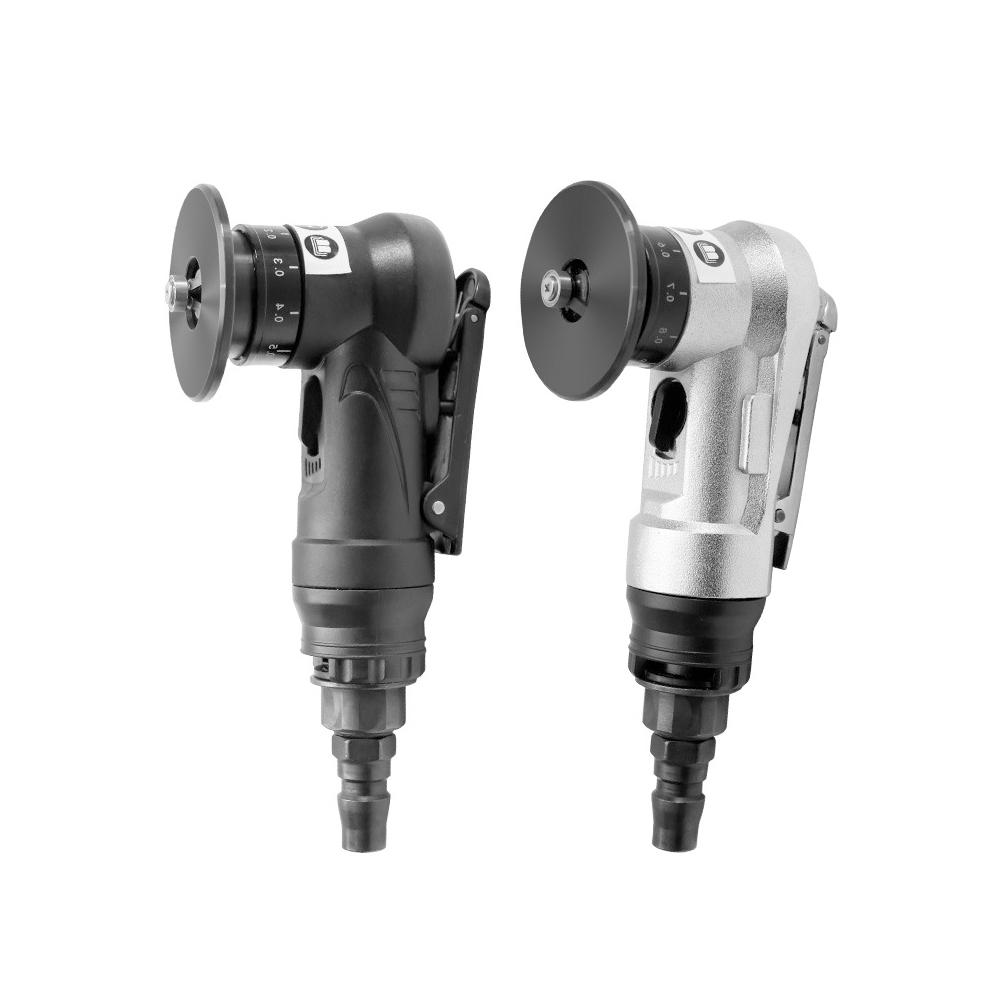

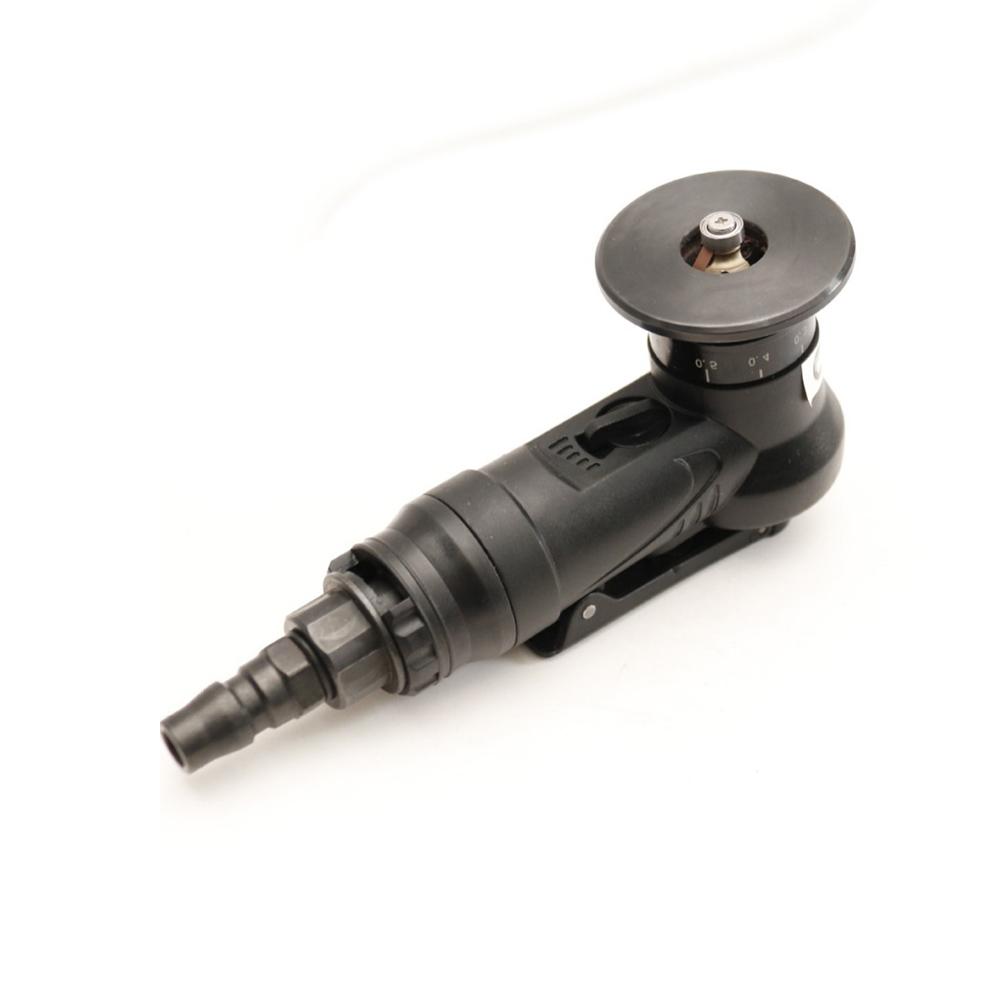

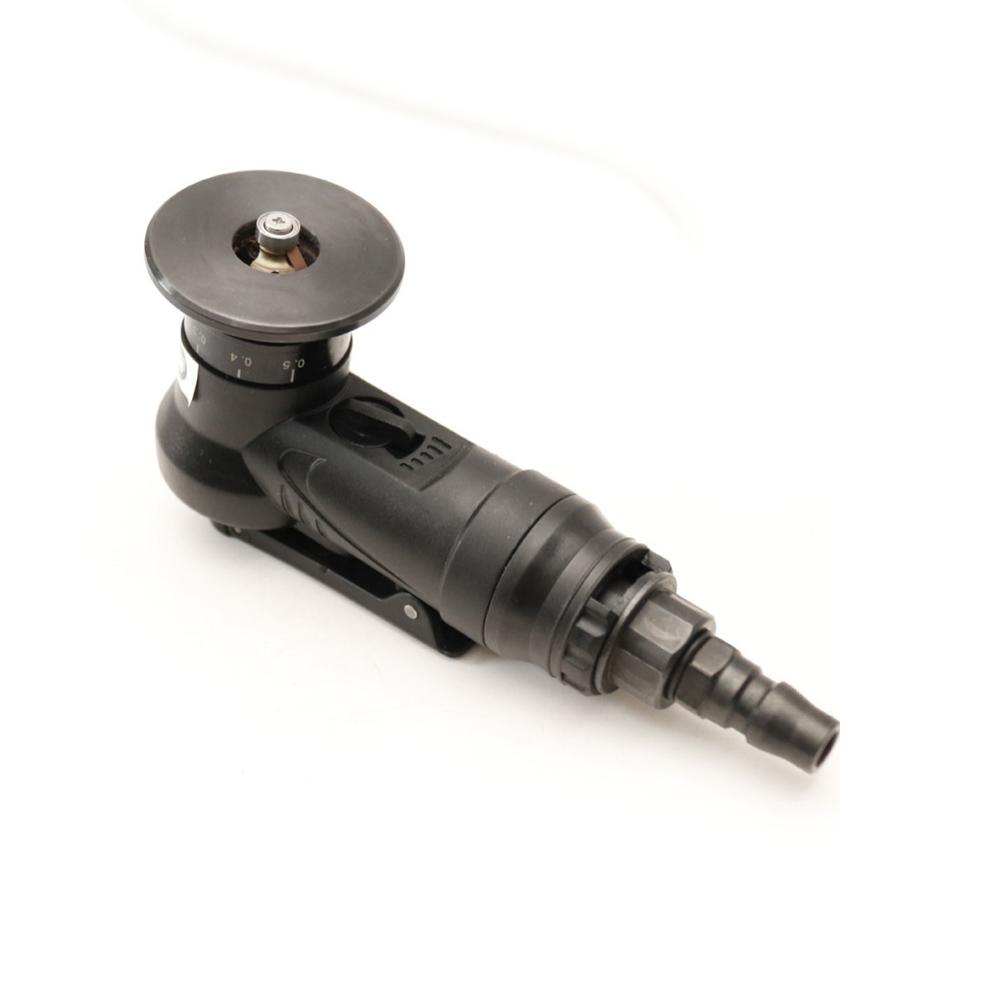

Pneumatic Beveling Machine

  • Product Name: Pneumatic Beveling Machine

  • Beveling capability: C-angle 45°, curved radius R1.5

  • Bevel surface size: 0-3mm (maximum recommended size: 1.5mm)

  • Rotation speed: 30,000 RPM

  • Air consumption: 0.4 cubic meters/minute

  • Operating pressure: 0.6-0.8MPA

  • Bevel plate thickness: > 3 mm

  • Beveled hole diameter: > 8 mm (7 mm or larger allows for interchangeable bearings)

  • Depth of recessed hole: > 5 mm


Description

High-strength A-grade material is preferred. The body material is specially selected as high-strength A-grade plastic steel.

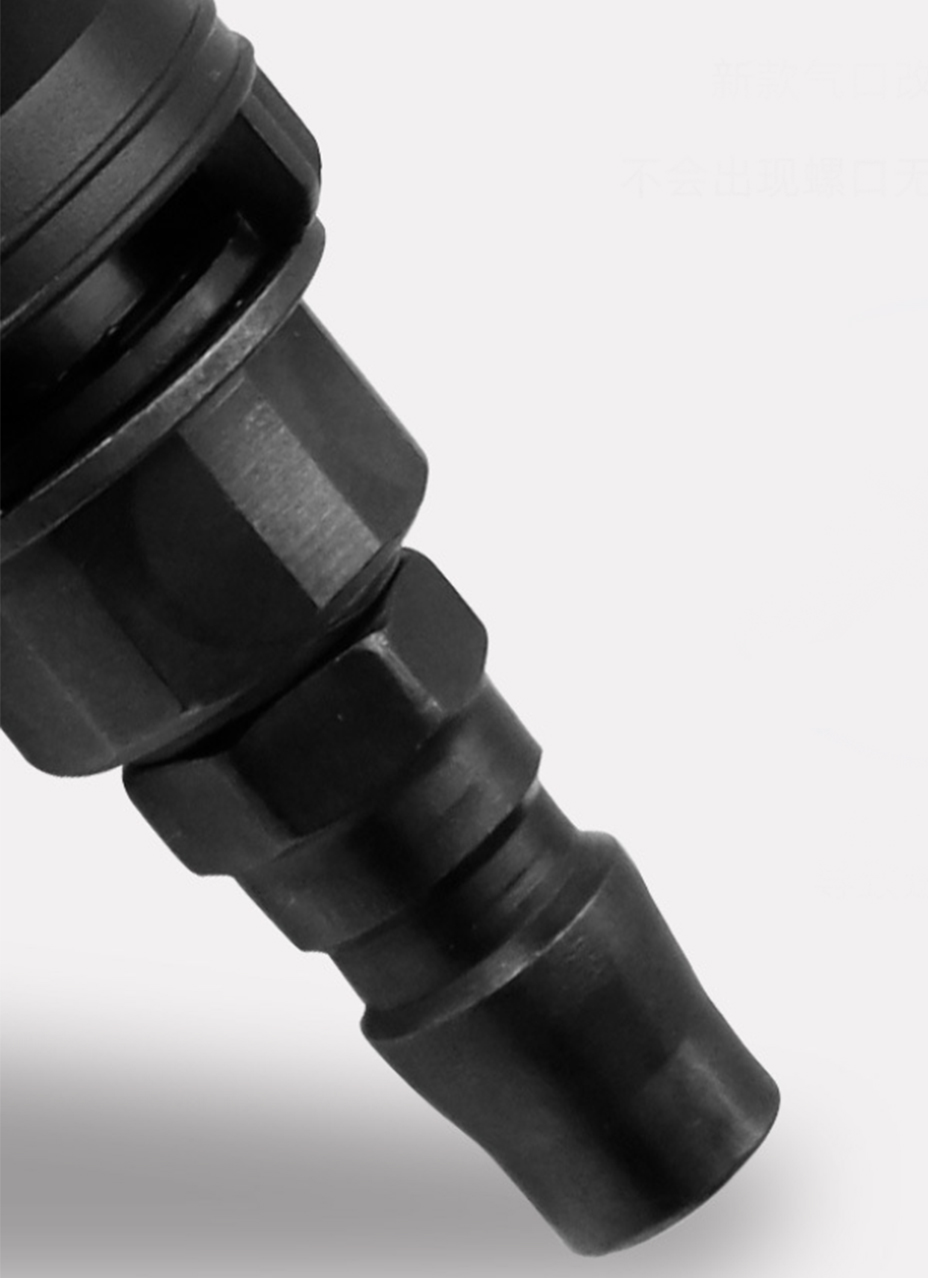

A completely new manufacturing process has been implemented, where the air inlet has been redesigned to be a single unit, eliminating the possibility of the screw not being able to be tightened.

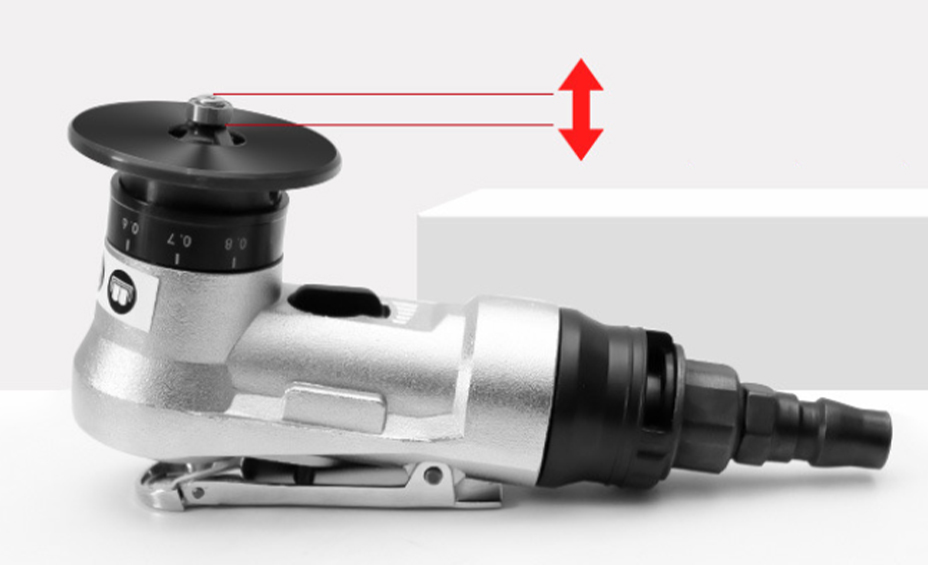

The central axis is flexible during beveling operations, enhancing work efficiency and user experience. The size can be adjusted up and down by rotating the circular plate. The bevel range is 0-2 mm. It is recommended to use a bevel of 0-1.5 mm.
