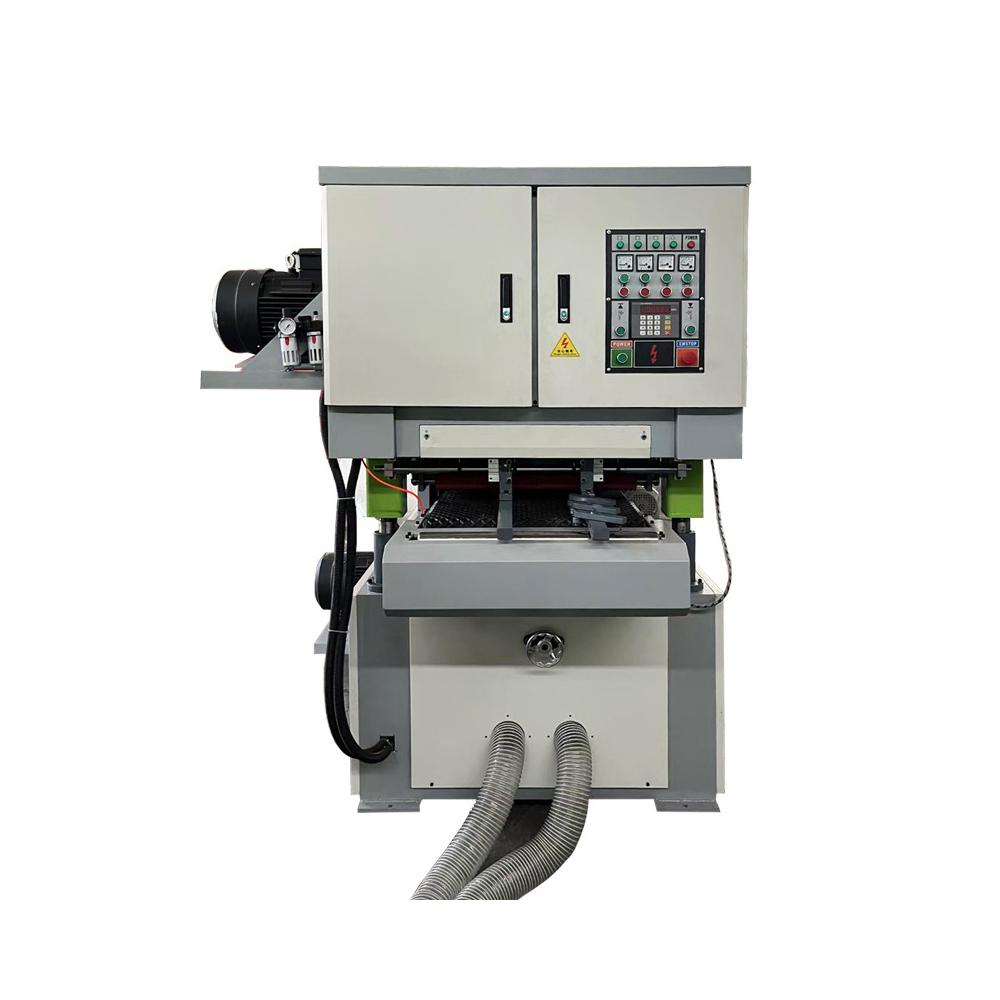

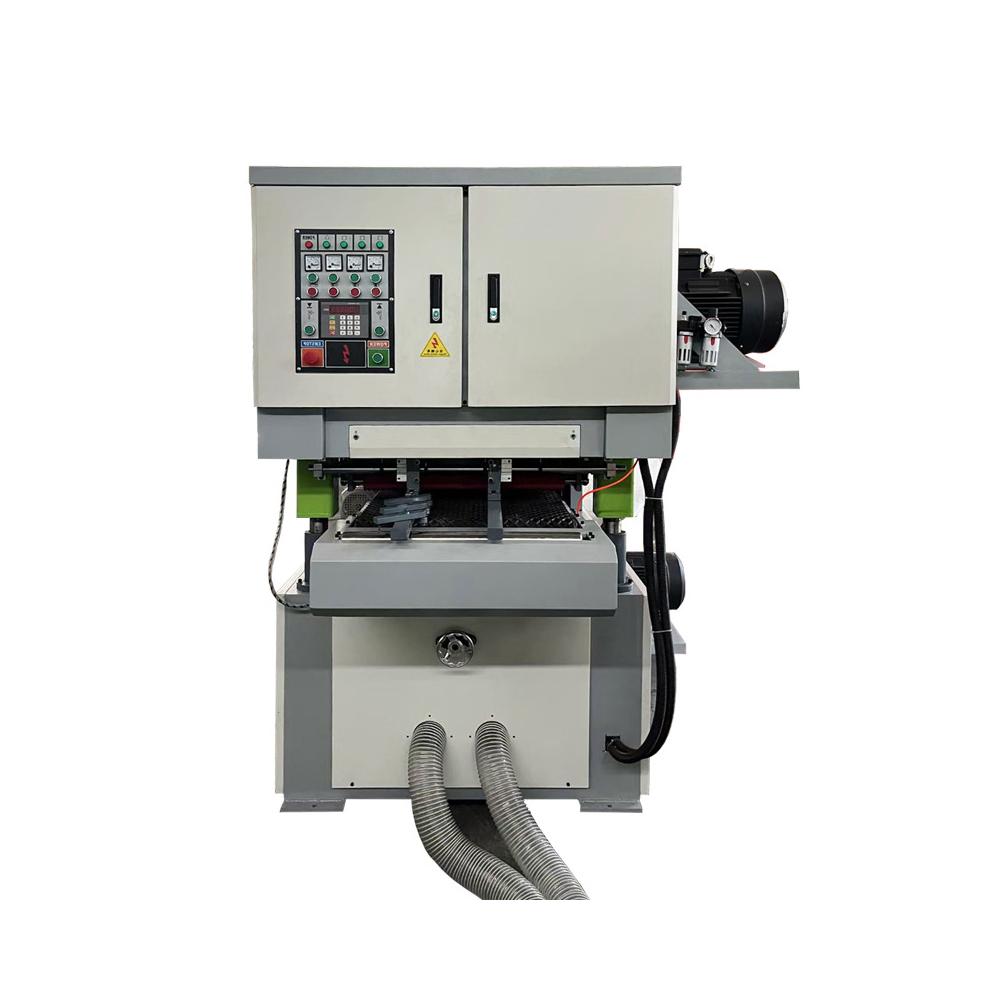

Sanding Machine

  • Product Name: Sanding Machine

  • Dimensions: 2050*1580*2200 mm

  • Maximum processing width: 1300 (mm)

  • Sanding belt dimensions: 1330*2200

  • Maximum processing length: unlimited (mm)

  • Total weight: 4300 (kg)

  • Rated voltage: 380V

  • Air suction capacity: 12,500 m3/h

  • Feeding speed: 5-30m/min

  • Operating pressure: 0.6MPa


Description

Control panel: Simple, clear self-reset control buttons. Intelligent temperature control device with high precision.

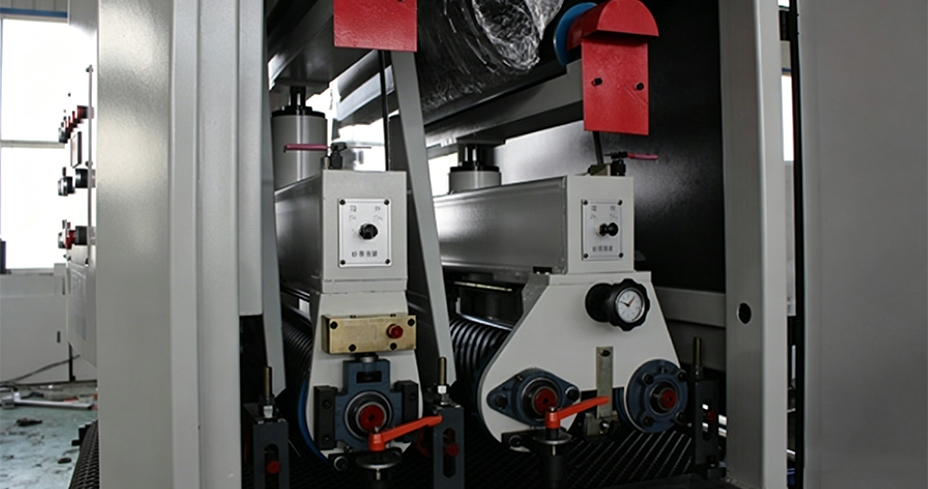

Two-roller, one-pad sanding frame. The front-type sanding frame features adjustable steel rollers, while the rear frame consists of a composite structure with rubber rollers and polishing pads. This setup is suitable for various types of board surfaces for controlled thickness sanding and fine polishing.

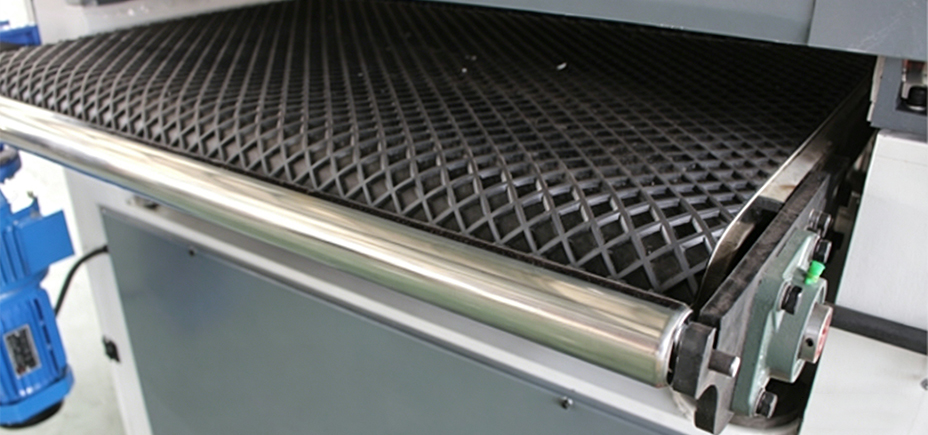

The wear-resistant conveyor belt features a thick marble work surface. The conveyor belt is made of five layers of durable rubber material, resistant to high temperatures, corrosion, and sunlight. It has a long lifespan.
