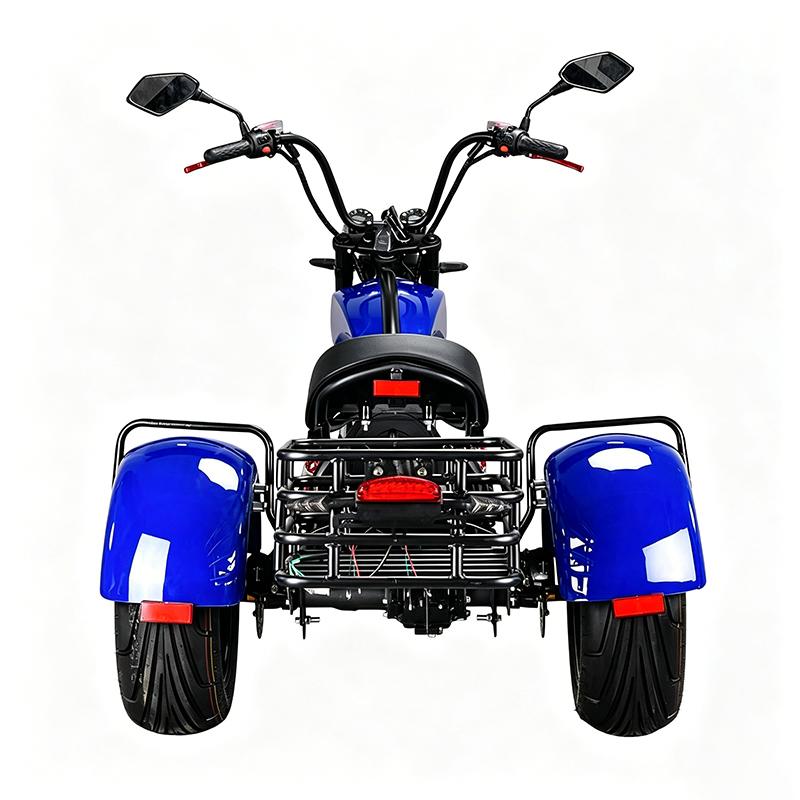

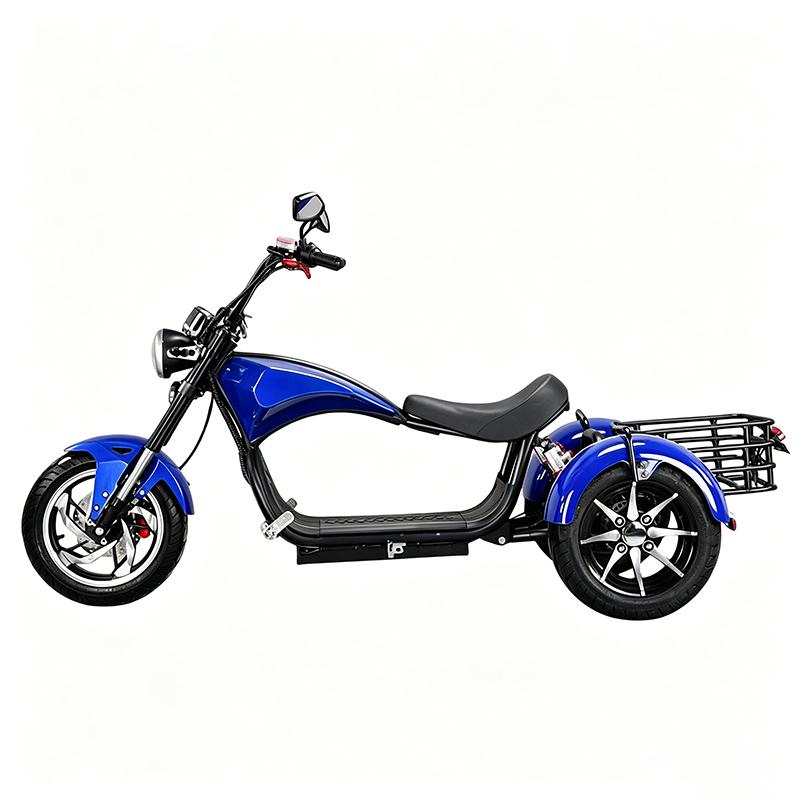

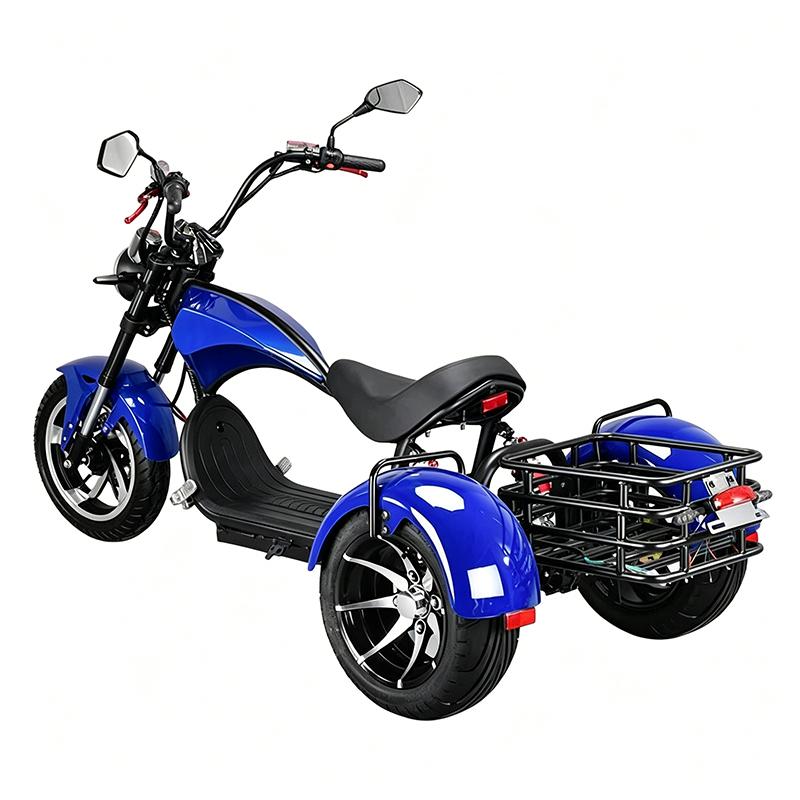

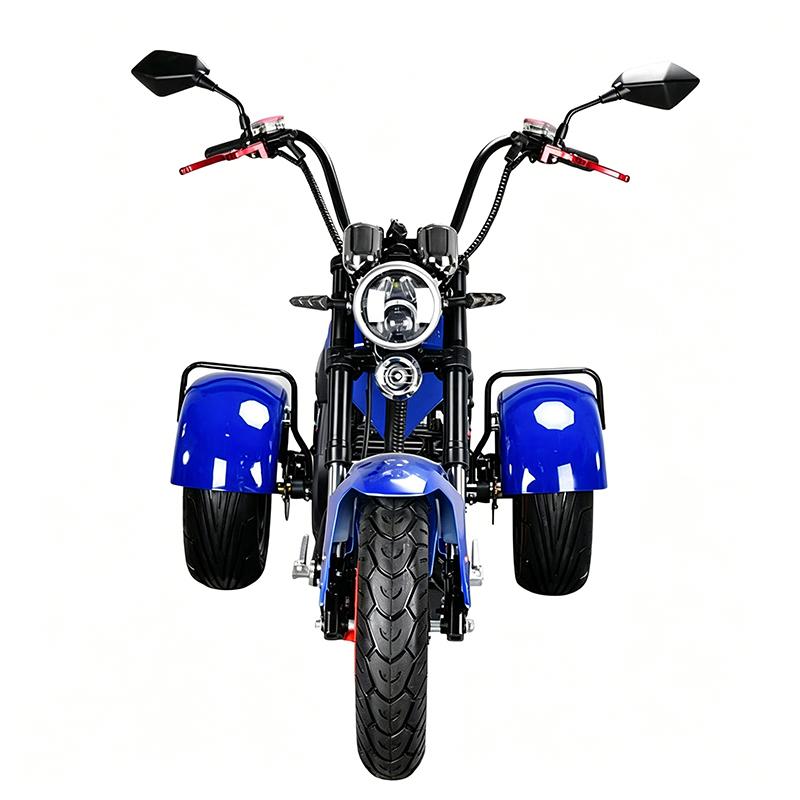

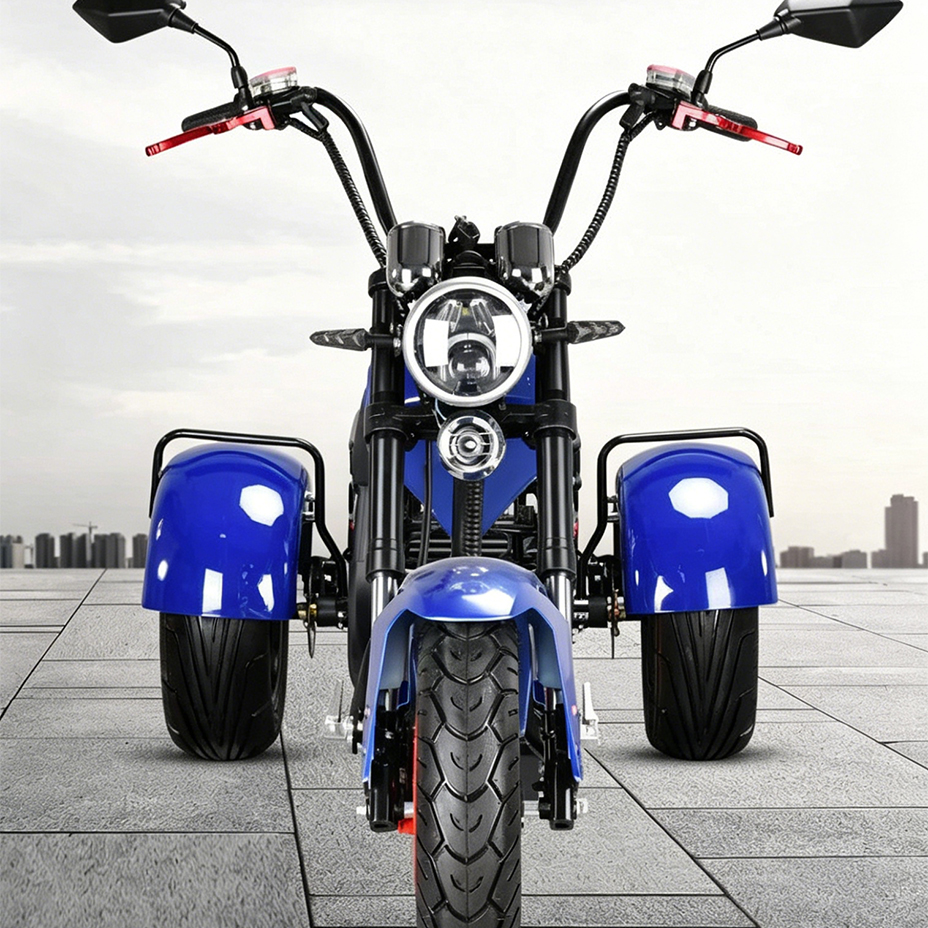

Electric tricycle

  • Net Weight: 80 kg

  • Gross Weight: 100 kg

  • Max Load Capacity: 200 kg

  • Tire Size: 10 inches

  • Pipe Thickness: 2 mm

  • Packing Size: 1980×950×900 mm

  • Wheelbase: 1296 mm

  • Seat Height: 70 cm

  • Front Brake: 180 mm Rear Single Axle Hydraulic Disc

  • Rear Brake: 180 mm Rear Single Axle Hydraulic Disc

  • Maximum Speed: 45 km/h

  • Range: 60-80 km

  • Maximum Climbing Angle: ≤25 Degrees

  • Braking Type: Disc Brake (14 cm)

  • Drive Type: Rear Electric Wheel Drive

  • Battery: 60V, 12Ah/20Ah Lithium Battery

  • Battery Installation: Contact Type (Easy to install and remove)

  • Charging Time: 6-8 Hours

  • Motor Power: 1000W/1500W/2000W

  • Maximum Torque: 95 N·m

  • Dry Braking Distance (20 km/h): 1.2 m

  • Wet Braking Distance (15 km/h): 3.1 m

Description

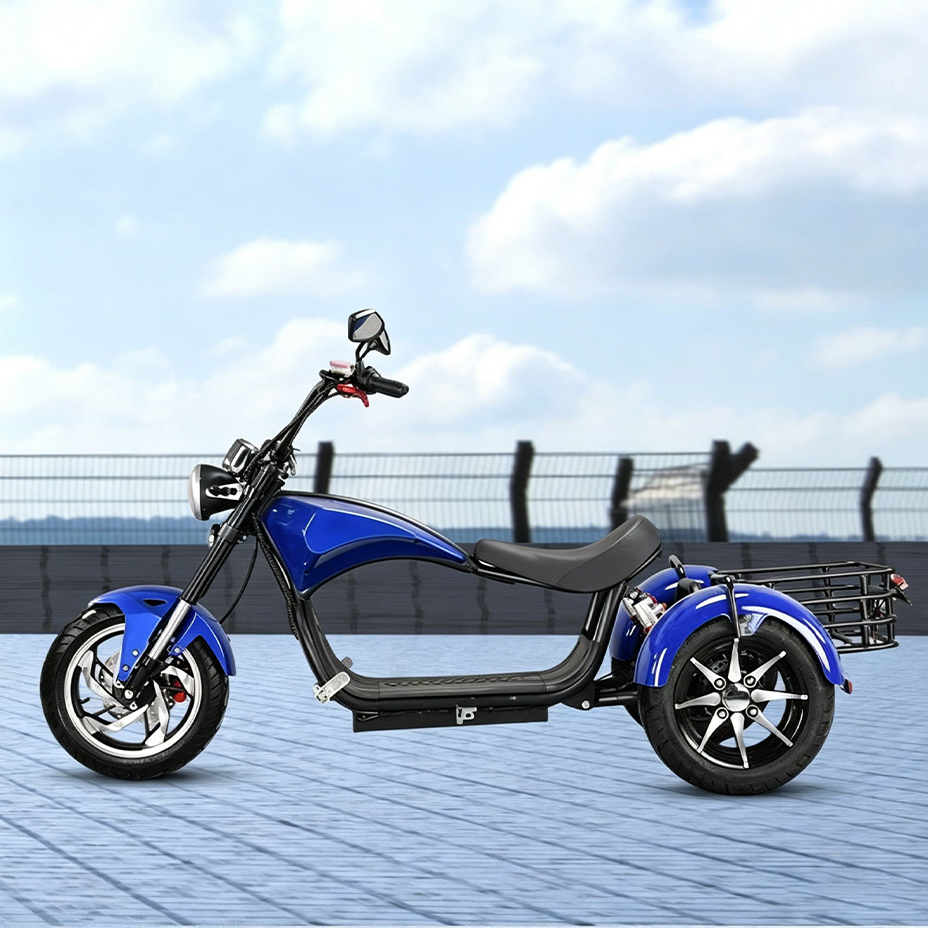

1. 2000W High‑Power Battery – High capacity for strong performance and extended range.  xp1.jpg

2. 6‑Hour Quick Charge (60V) – Faster charging, more powerful output, and a worry‑free riding experience.
