EPS Polystyrene Foam

  • Product Name: EPS Polystyrene Foam

  • Fire resistance rating: Class B1, highly flammable

  • Standard dimensions: 1200 × 600 × 30 mm

  • Country of Origin: China

  • Shape: rectangular, layered sheet material

  • Core advantages: high resistance to pressure, no need for backfilling, aluminum foil thermal conductivity, dry type

  • Application scenario: water floor heating insulation and heat dissipation base layer


Description

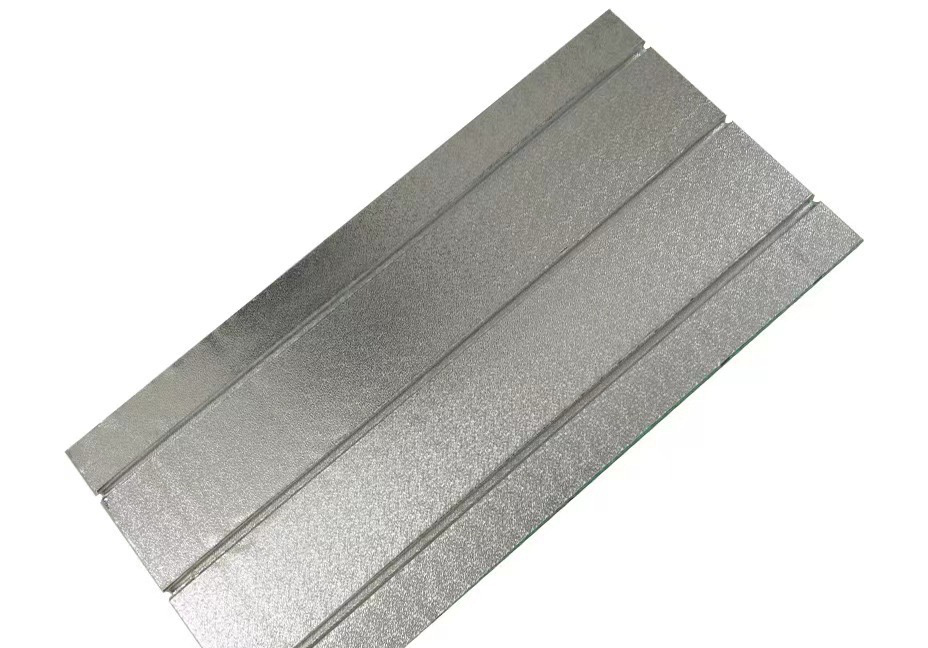

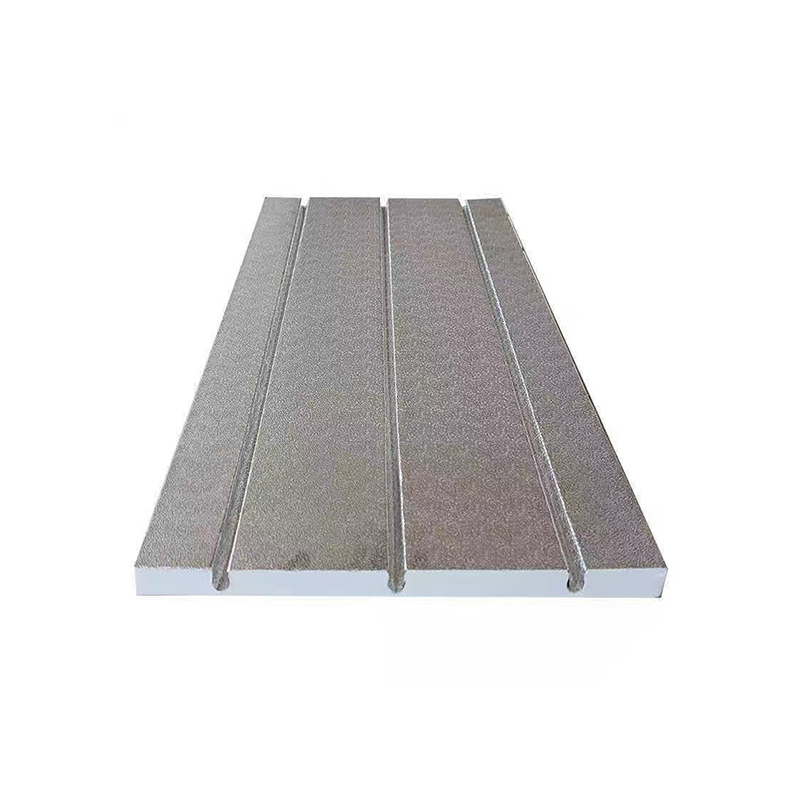

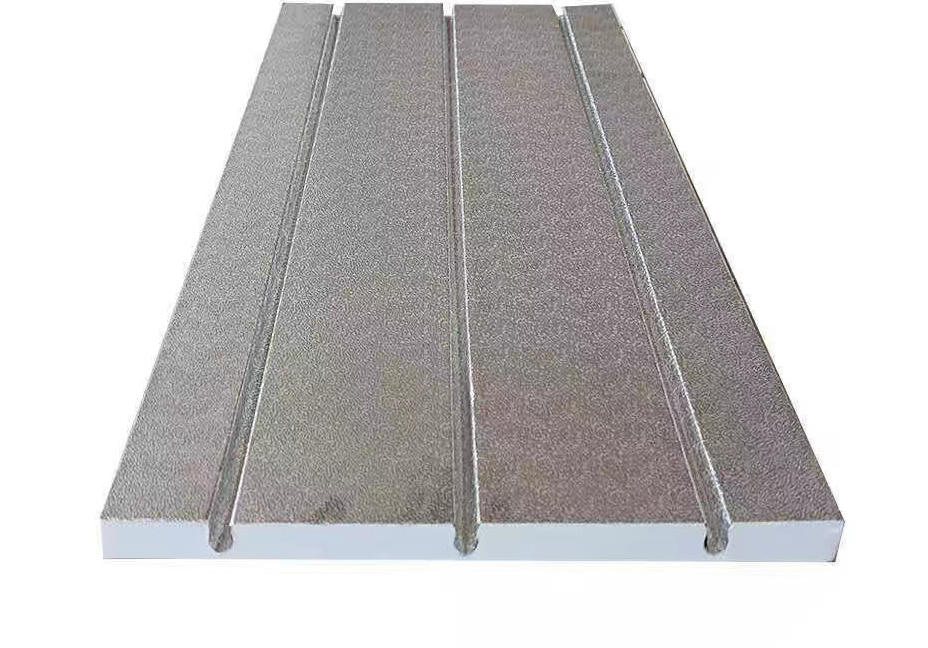

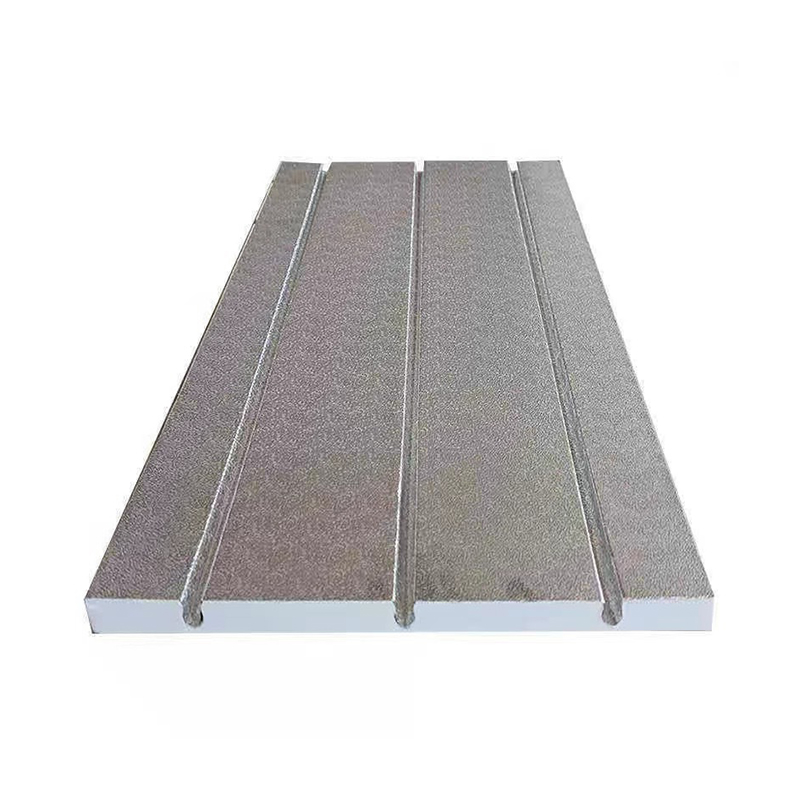

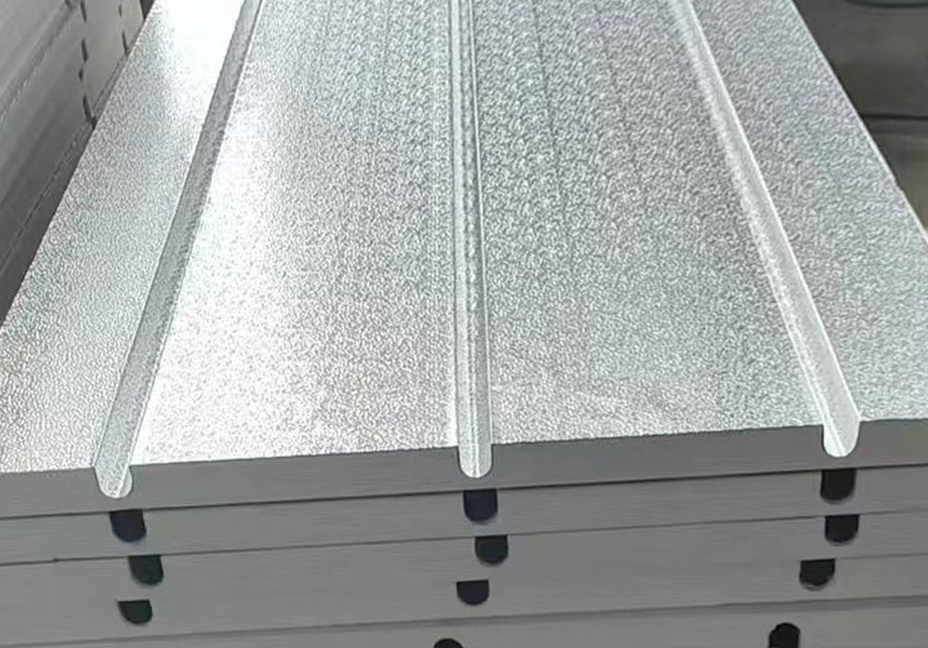

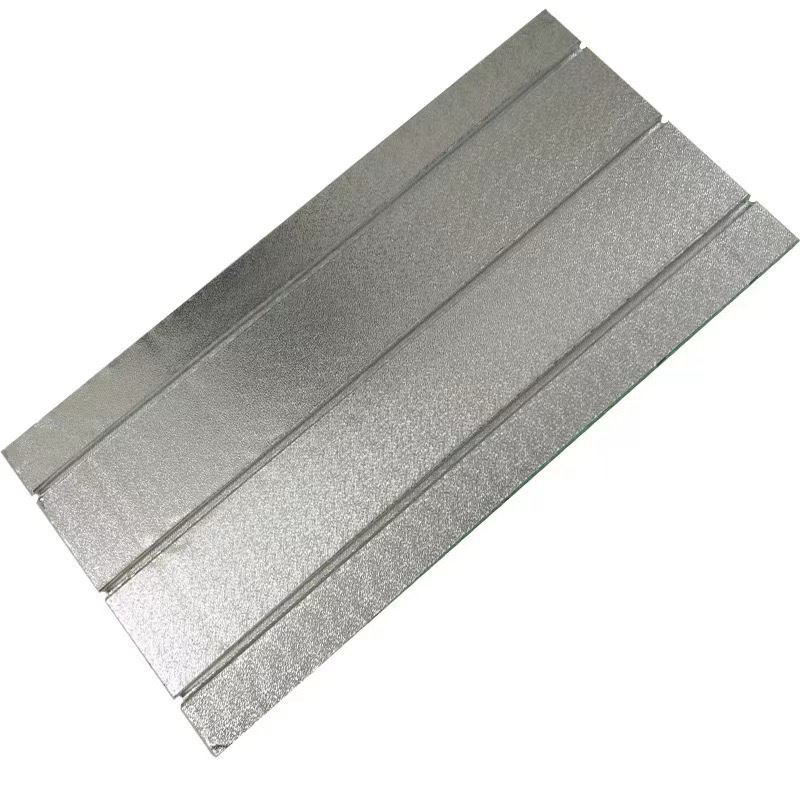

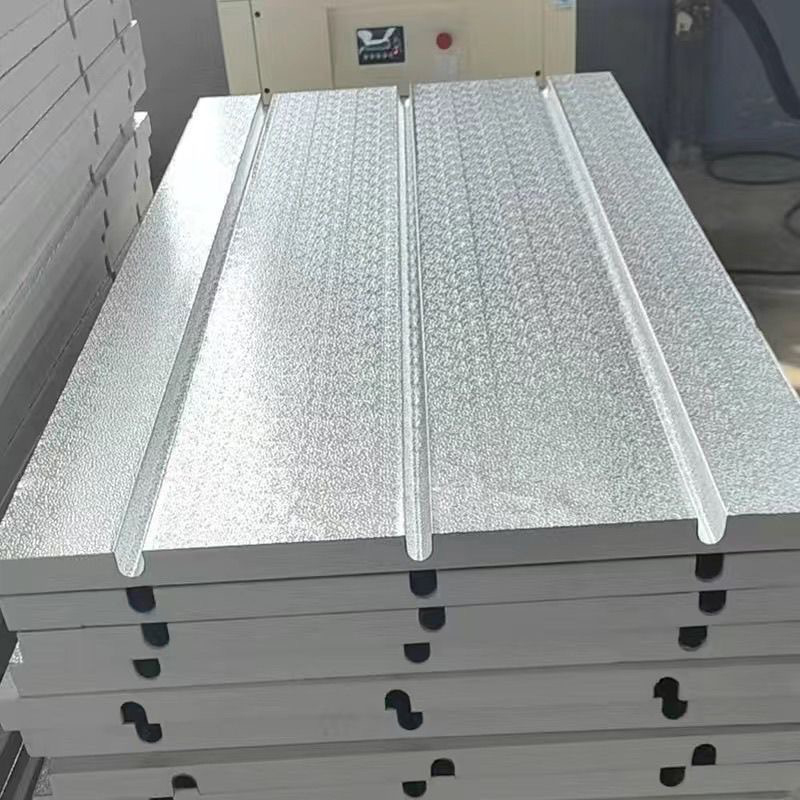

A circular pipe groove is cut into the body, compatible with 16/20-sized floor heating pipes. The pipes can be fully embedded without the need for additional fastening clips.


The surface features a composite aluminum foil heat dissipation layer, which rapidly distributes the heat from the underfloor heating pipes evenly throughout the floor, resulting in a much faster warming process compared to traditional wet underfloor heating.


The board has strong thermal insulation properties, preventing heat from seeping downwards, which results in a 20-30% reduction in energy consumption.
