Pedestrian Turnstile

  • Product Name: Pedestrian Turnstile

  • Specifications: Single-motor, Dual-motor

  • Cabinet Material: Cold-rolled steel + electrostatic spraying

  • Door Material: Acrylic

  • Access Direction: Bidirectional

  • Passage Width: 600 mm

  • Dimensions (mm): 600 × 183 × 980 (H×W×D)

  • Operating Environment: Outdoor

  • Operating Temperature: -20°C to 70°C

  • Sensing Method: Infrared beam (through-beam infrared)

Description

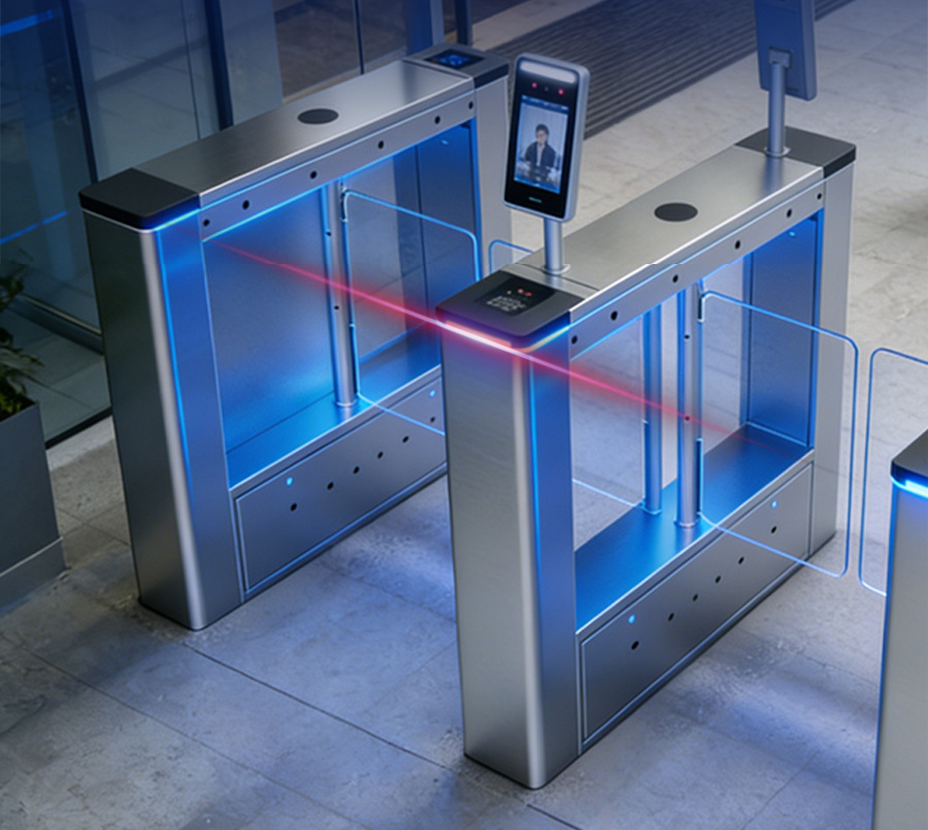

Smart infrared detection technology: when a person is detected in the passage, the swing arm automatically returns to the open position to prevent pinching injuries.xq1.jpg

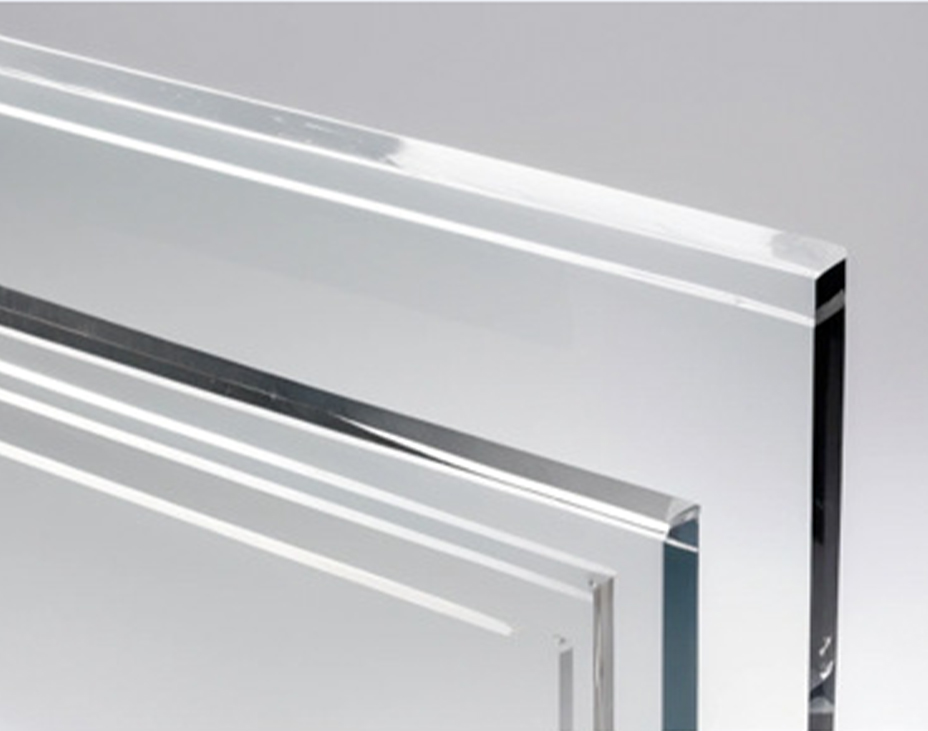

Acrylic swing arm – High impact resistance, not easily damaged. Better impact resistance than ordinary glass, easy to maintain and clean.xq4.jpg

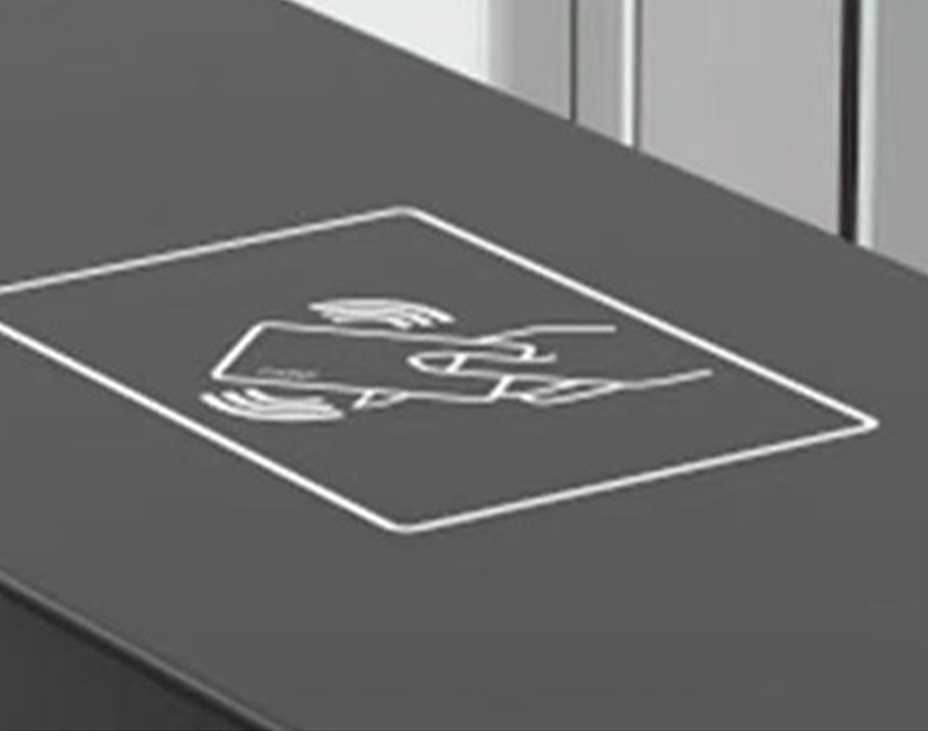

Card Swiping Window – Quickly and efficiently reads IC cards, ID cards, magnetic cards, or barcode cards.

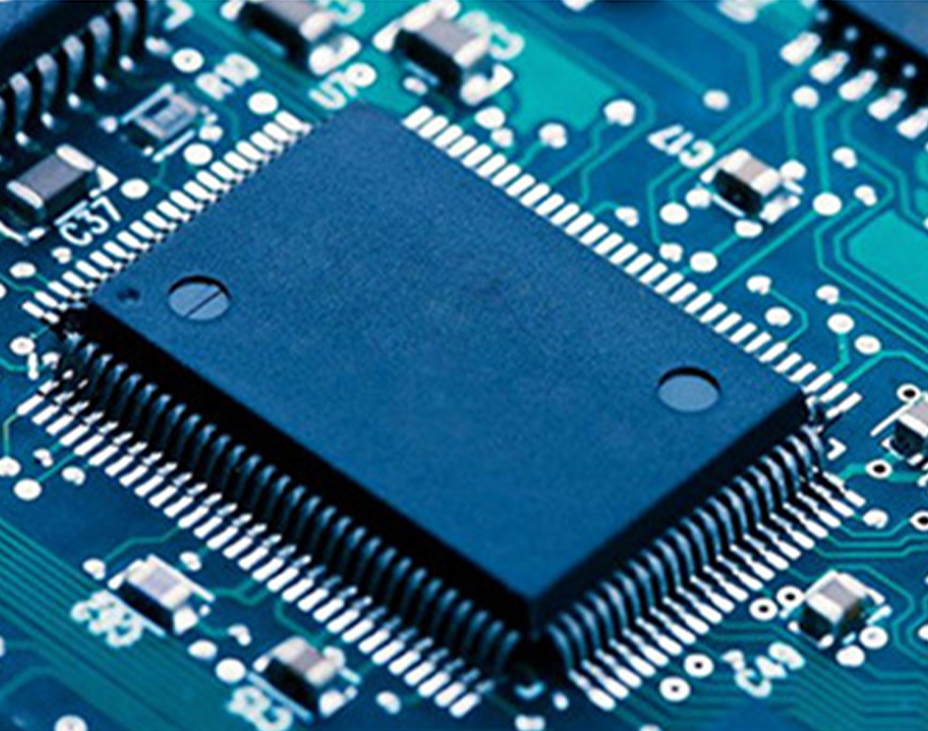

Smart Control Mainboardxq5.jpg

The core mainboard circuitry features a built-in self-test function, providing more stable current and voltage, and better anti-interference performance.xq6.jpg
