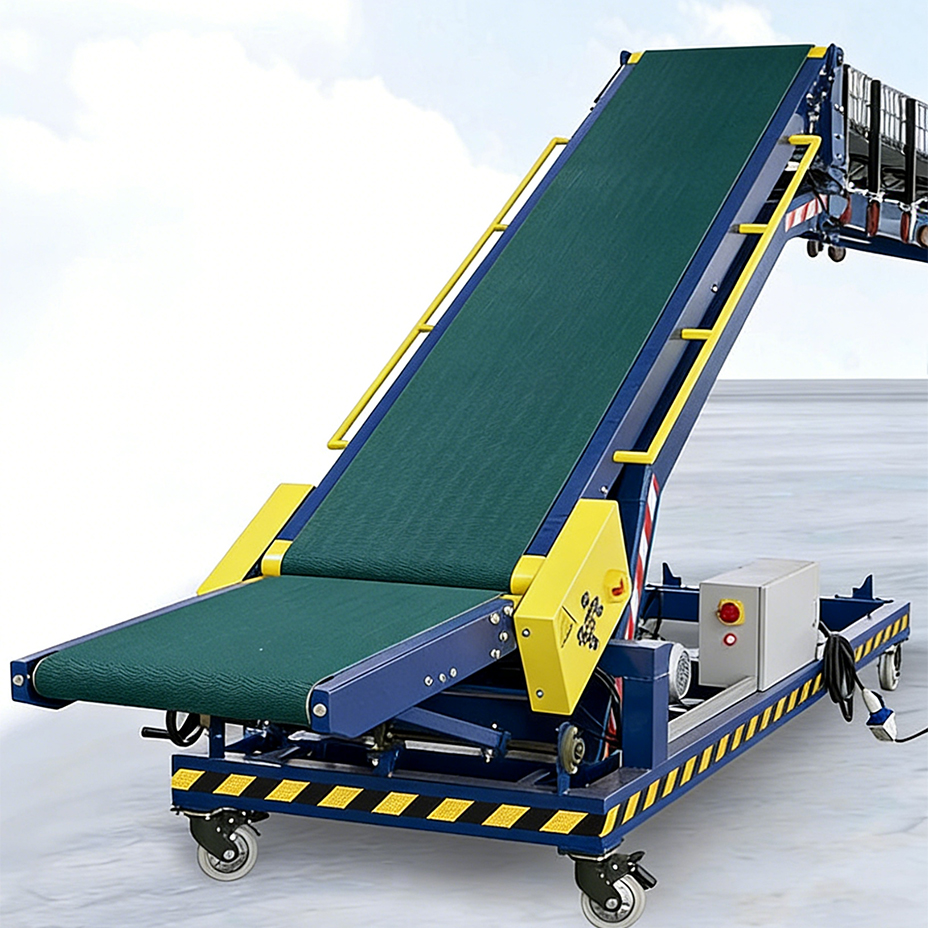

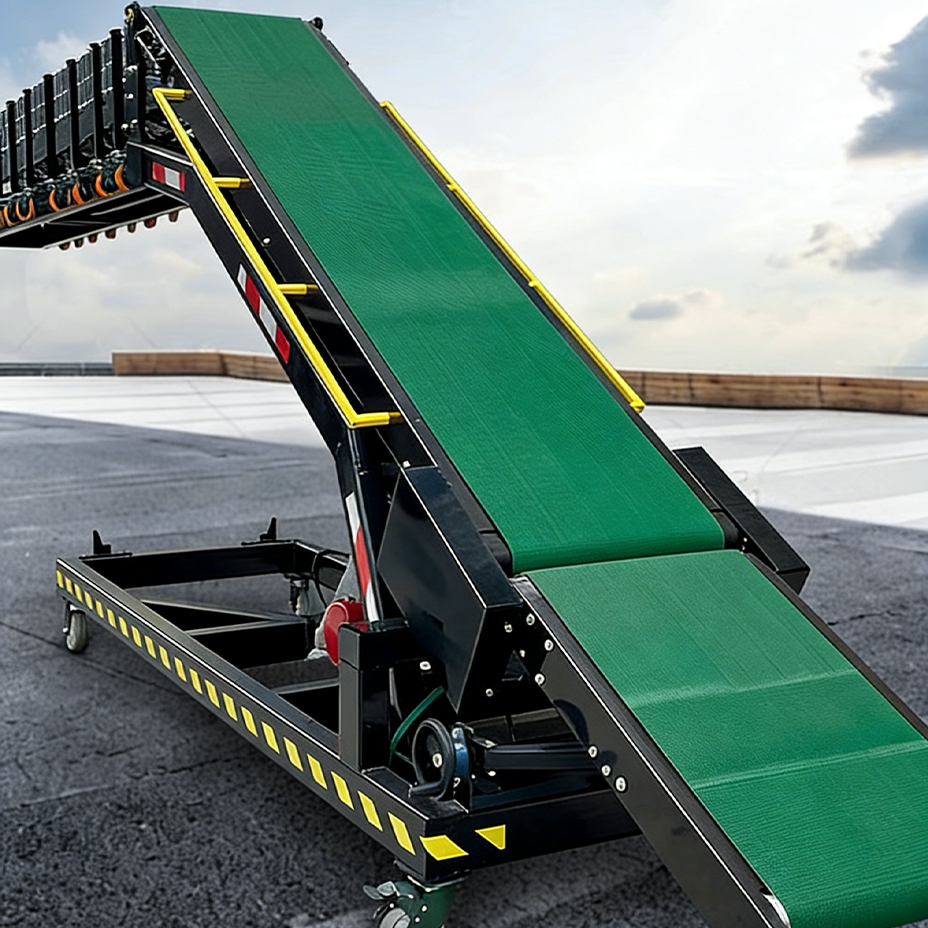

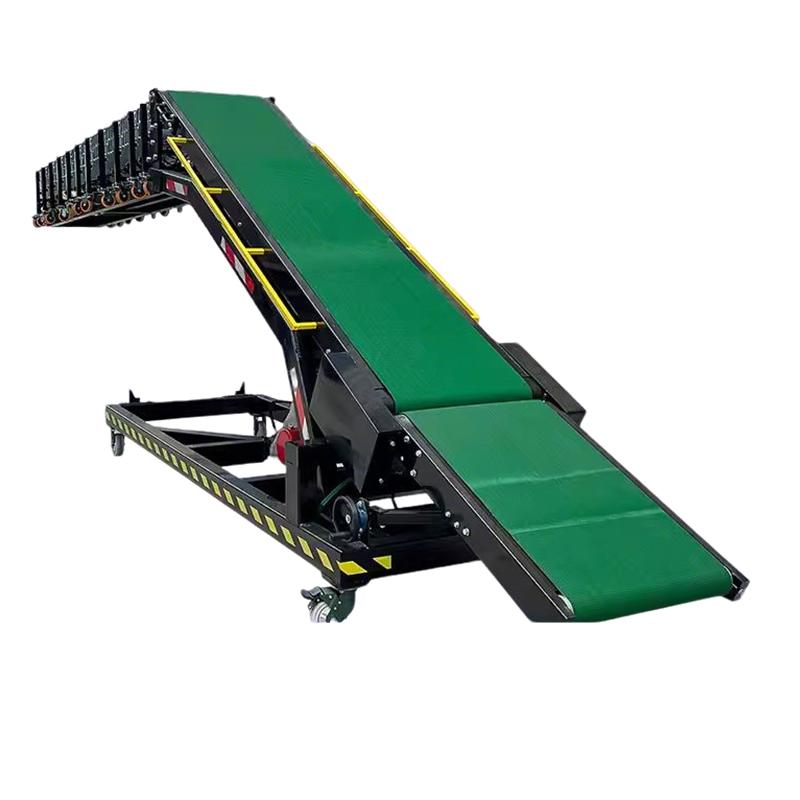

Unloading Slide

  • Width: 600 mm

  • Length: 1000 mm

  • Incline Length: 3000 mm

  • Initial Lifting Height: 980 mm

  • Height After Lifting: 2400 mm

  • Conveying Direction: Loading or Unloading

  • Material: Carbon Steel

  • Lifting Method: Oil Pump + Oil Cylinder Combined with Lifting Frame

  • Operating Voltage: AC 380V

  • Power: 1.5 kW - 3 kW

  • Load Capacity: 80 kg/m

  • Belt Speed: 0 - 36 m/min

  • Approximate Machine Weight: 1200 kg

Description

  1. Anti-Slip Belt: PVC belt with low noise, anti-aging, and high friction properties to prevent items from slipping. Belt anti-tracking device ensures stable transport and prevents items from falling off due to misalignment.


2. C-Type Joint Oil Pipe: Significantly enhances safety with high-pressure explosion-proof oil pipes. Locking nuts ensure safer operation. Folded plate enclosed sidewalls improve aesthetics and greatly increase overall safety.

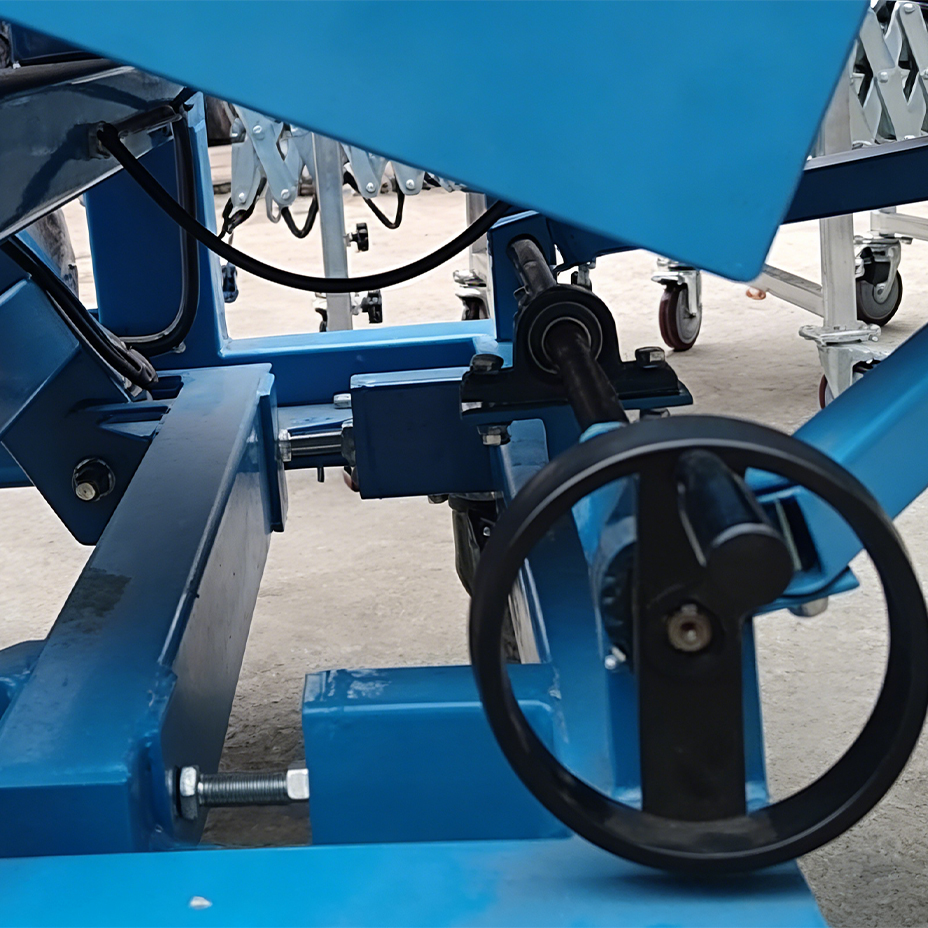

3. 3-Lift Turntable: Ergonomic design makes each lifting operation simpler and more effortless.  xp3.jpg

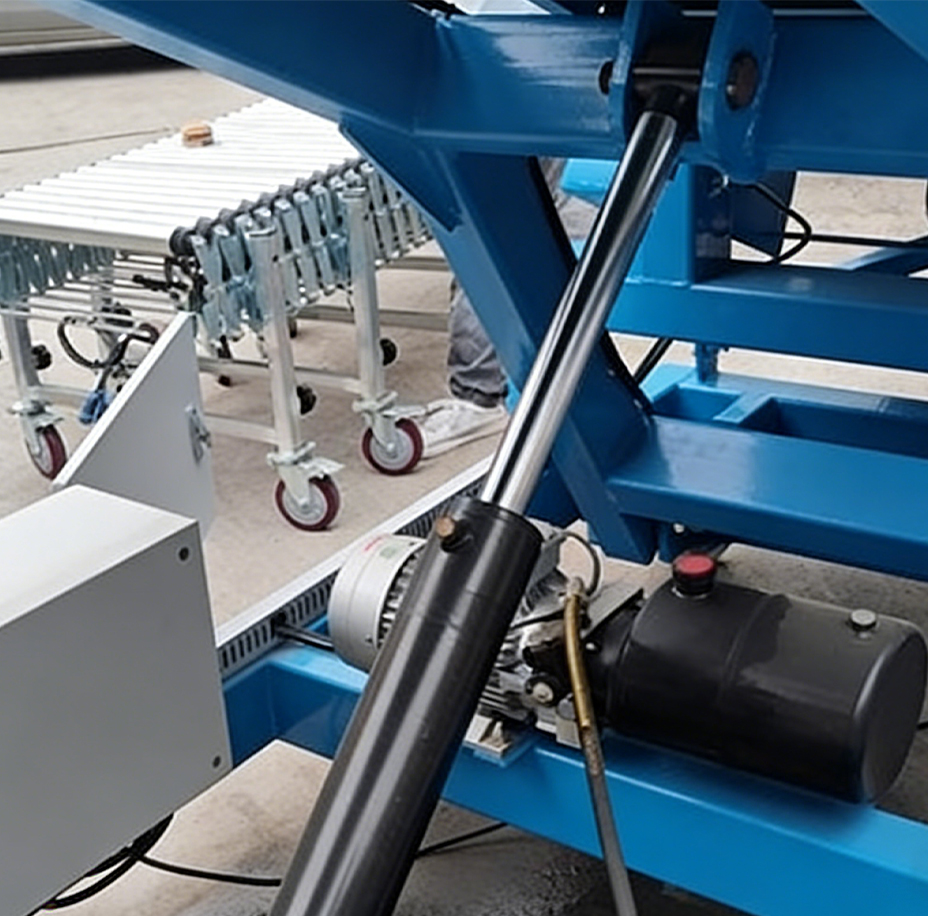

4. High-Load Oil Cylinder: Hydraulic high-load oil cylinder with strong load-bearing capacity, extending the service life of the incline conveyor.
