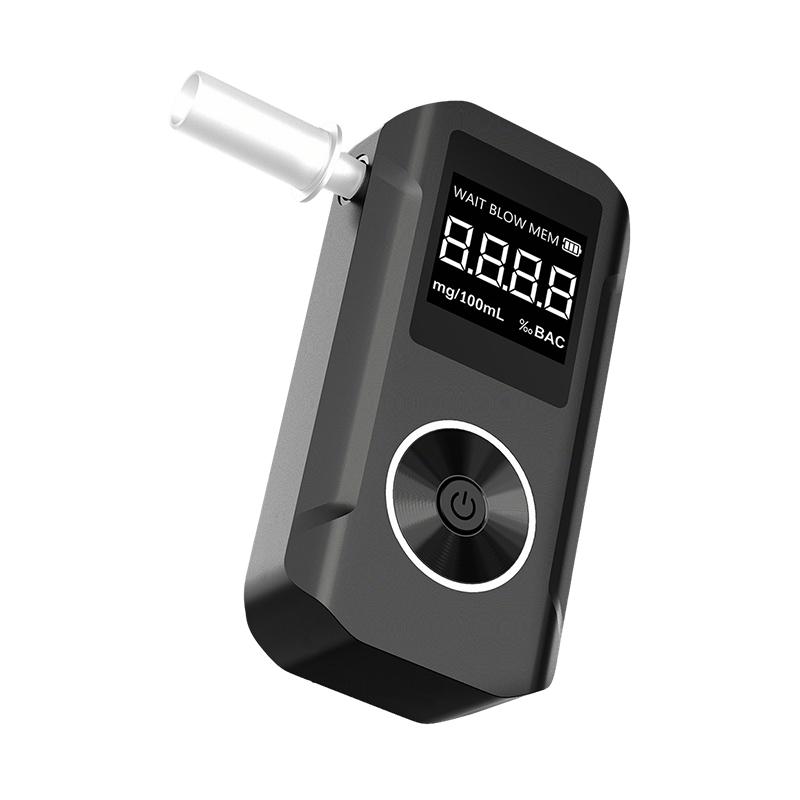

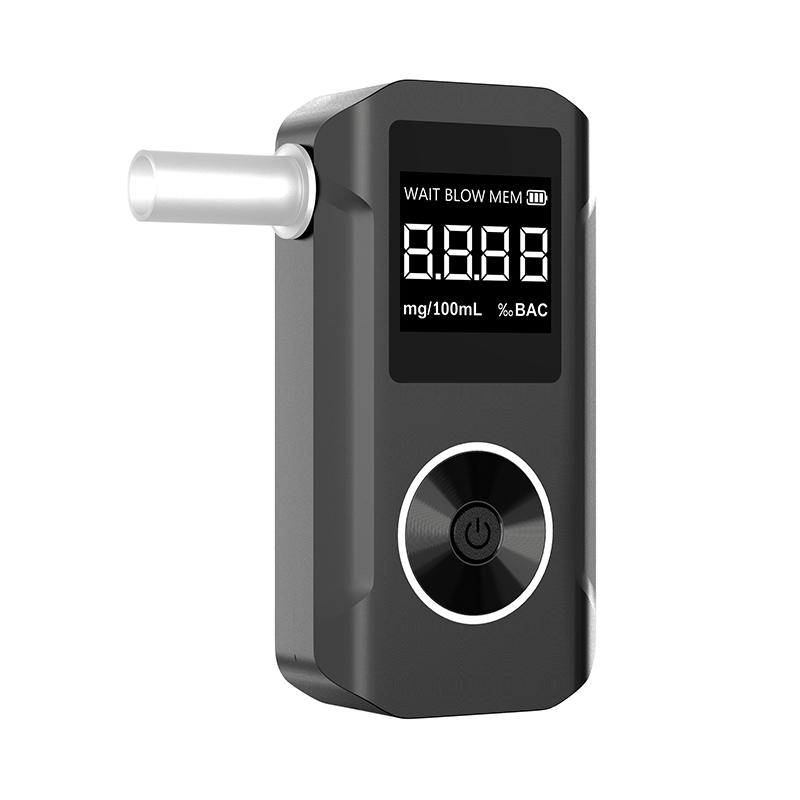

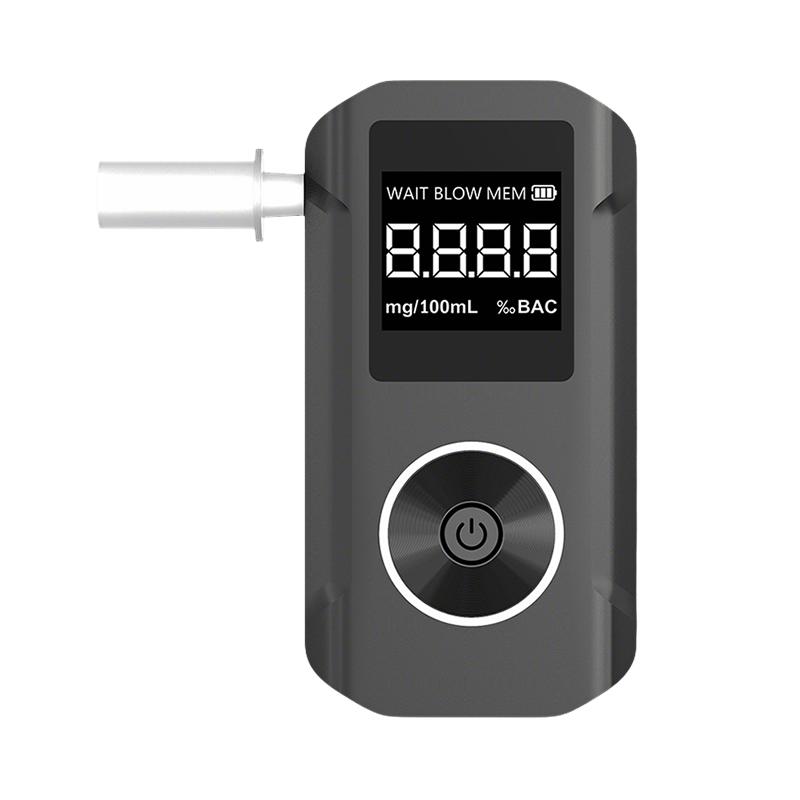

Alcohol Tester

  • Product Name: Alcohol Tester

  • Specification: English Version

  • Detection Technology: Semiconductor sensor (high precision)

  • Detection Range: 0–200 mg/100mL

  • Measurement Accuracy: 0.03

  • Resolution: High definition (HD)

  • Voltage: 4.5V

  • Dimensions: 94.6 × 50.6 × 22.8 mm

  • Power Supply: 3 × 1.5V AAA alkaline batteries

  • Display: Digital LCD screen + LED ring indicator (red, yellow, green)

  • Display Units: mg/100mL — China, %BAC — USA, g/l — Europe, mg/l BrAC — Japan

  • Breath Sampling: ≥5 seconds of continuous breath sample

  • Operating Temperature Range: -5°C ~ 45°C

  • Auto Shutdown: 15 seconds

  • Product Weight: 50g (unit only, excluding batteries)

  • Warm-up Time: 10 seconds

  • Response Time: 5 seconds

  • Package Dimensions & Weight: 126 × 86 × 28 mm / 85g

  • Target User: People who have consumed alcohol


Description

Exhaled Gas Alcohol Content Detector
Adopts high-reliability, next-generation high-precision sensors


Fast, accurate and stable measurement
Quick results — detects overnight alcohol consumption as well

  • Precision airflow and gas path design

  • High-precision sampling system

  • Next-generation high-precision sensor

  • Smart algorithm

  • Instrument-grade circuit design

  • ARM 32-bit M4 processor

  • LCD screen display

  • Results in seconds


Adopts precision airflow and gas path design

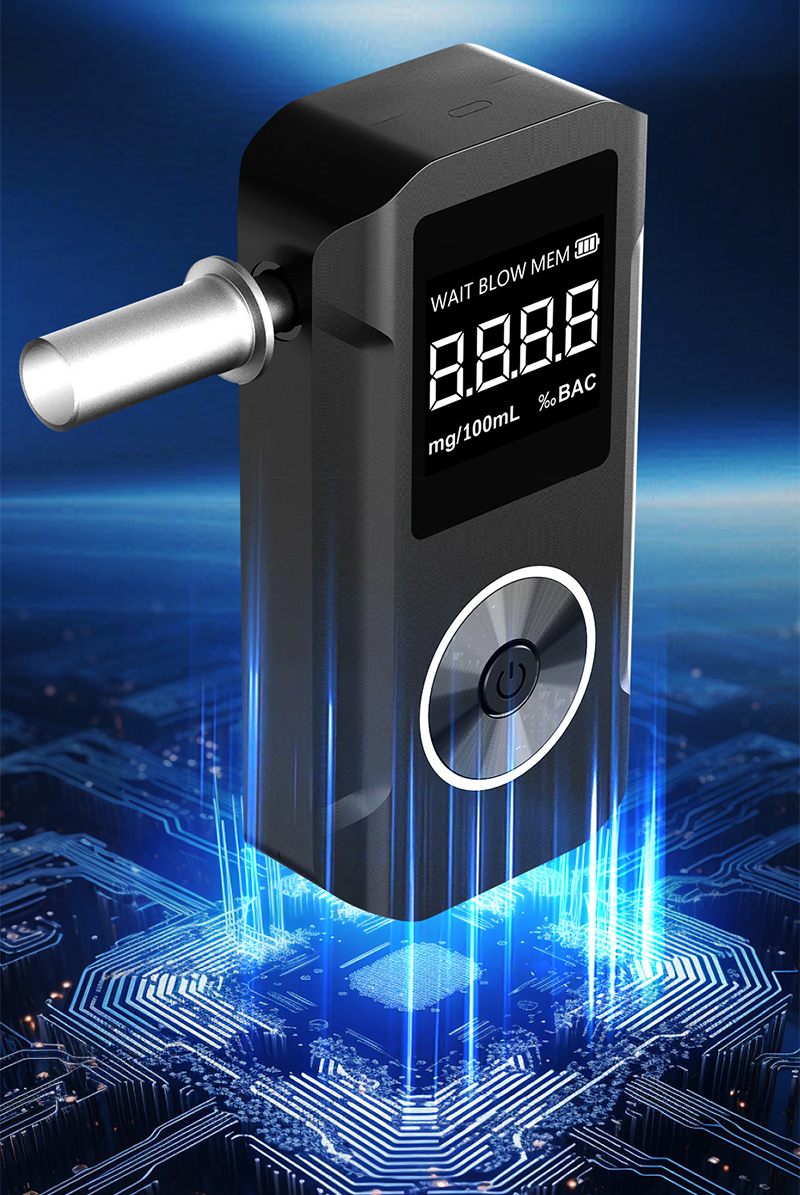

Instrument-grade circuit design for fast results

Next-generation high-precision sensor

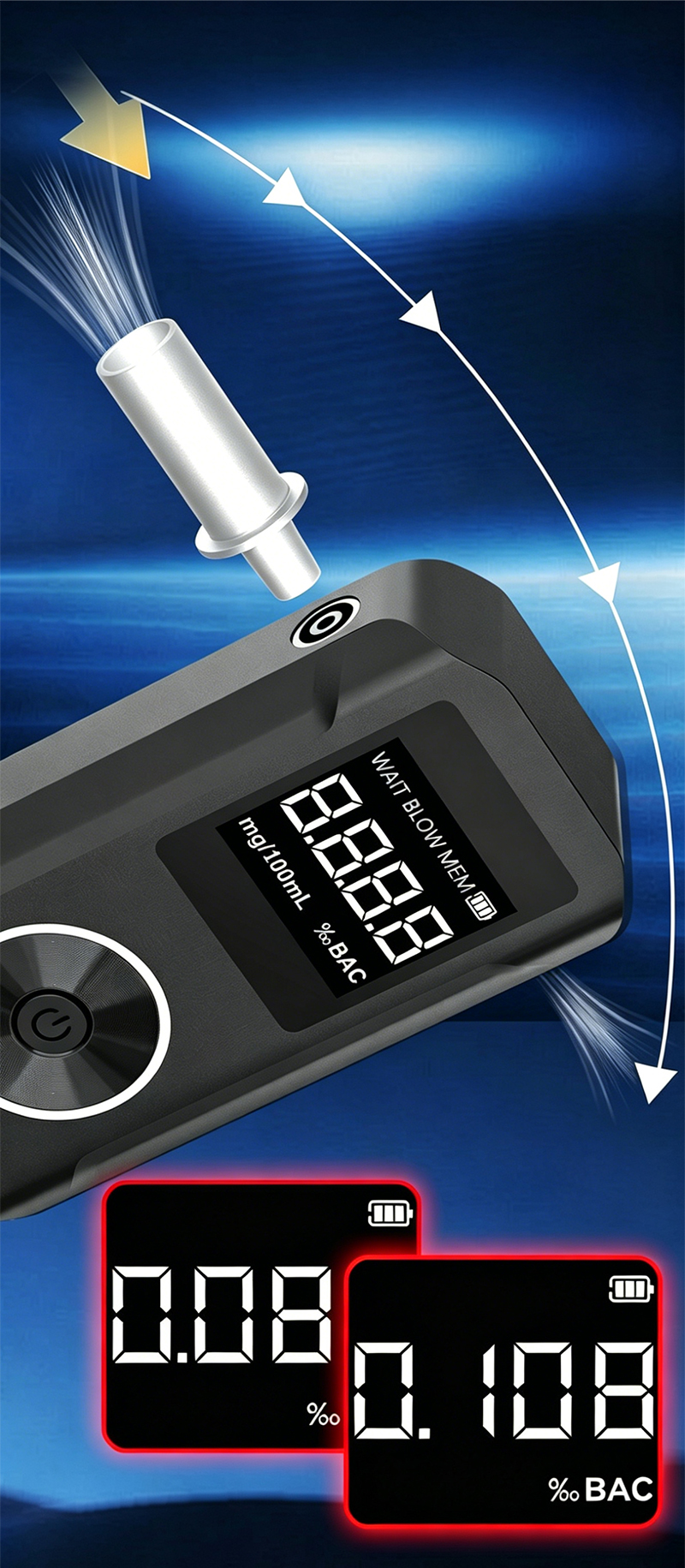

Blow → Intake hole → Negative pressure tube → Intake sensor → Data analysis → Result display


Precise screening + Rapid screening
Contact-type, replaceable mouthpiece for hygienic screening — multiple functions in one device

  • Precise Mode: Requires a mouthpiece for more accurate testing.

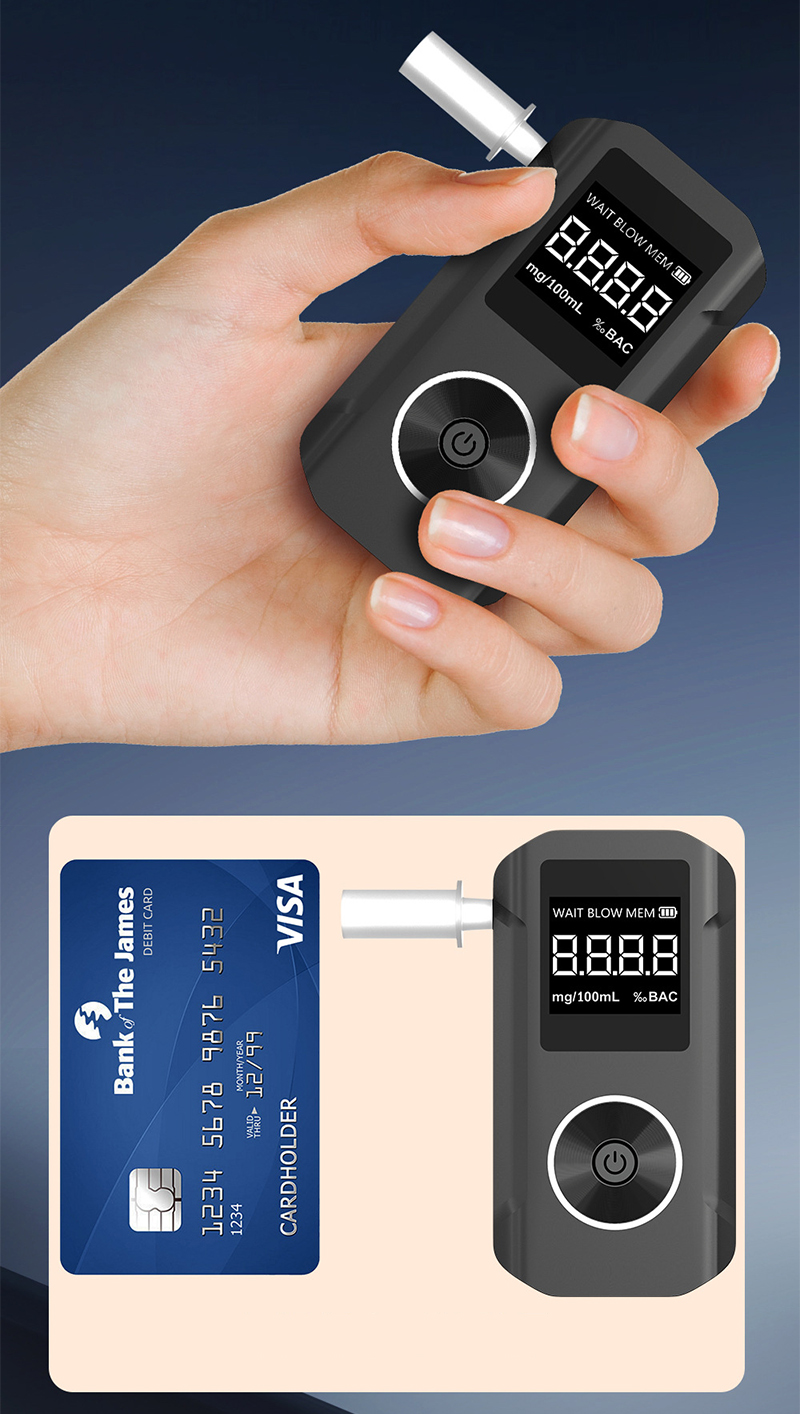

Lightweight, compact and easy to carry
Stylish appearance with a sturdy shell

  • Comparison effect with a bank card

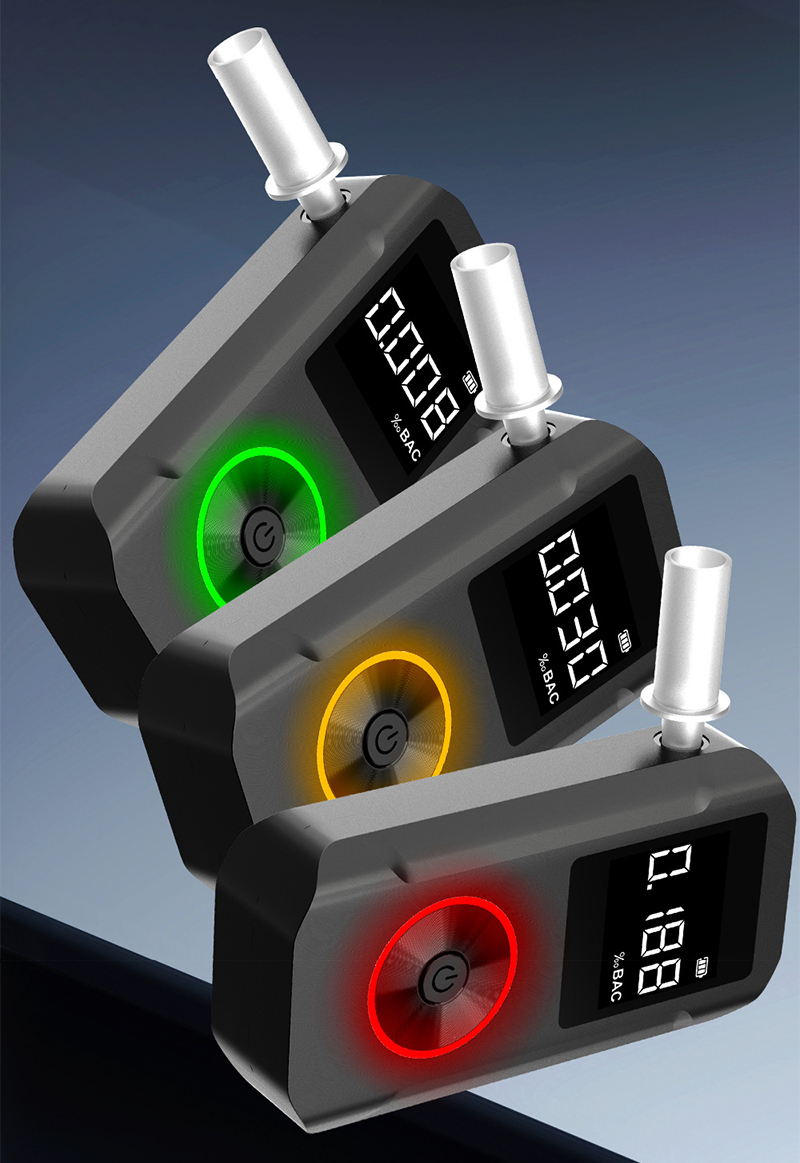

Three-color indicator light
Lights up immediately upon completion of test analysis


High-quality ABS material, drop-resistant and dustproof design
Passed drop testing — stable and reliable


Removable battery compartment design
Quick and easy replacement

Long battery life

  • AAA batteries

  • Removable battery compartment cover


Operating steps and test results

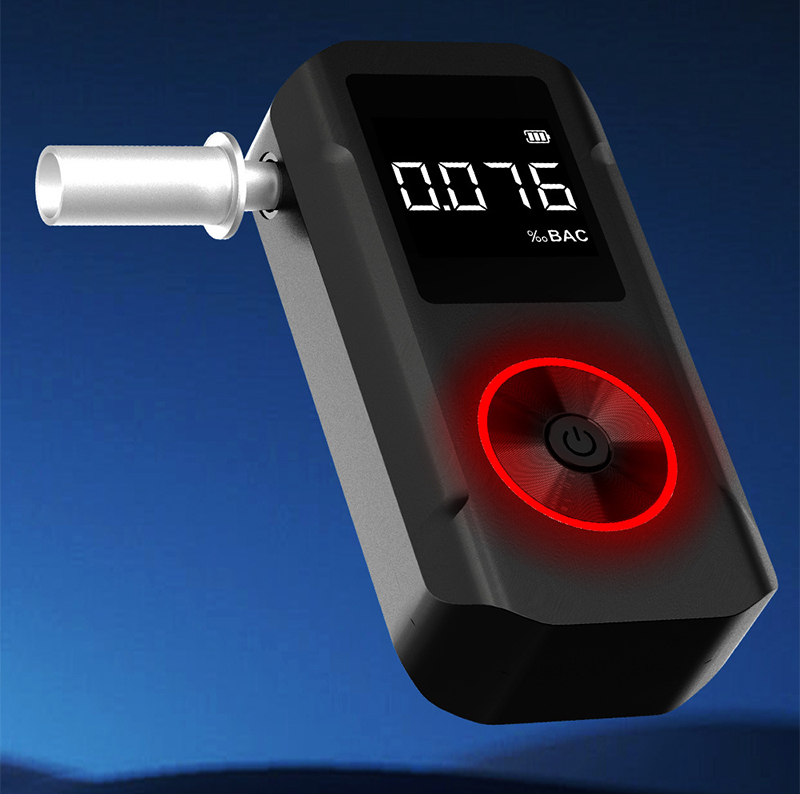

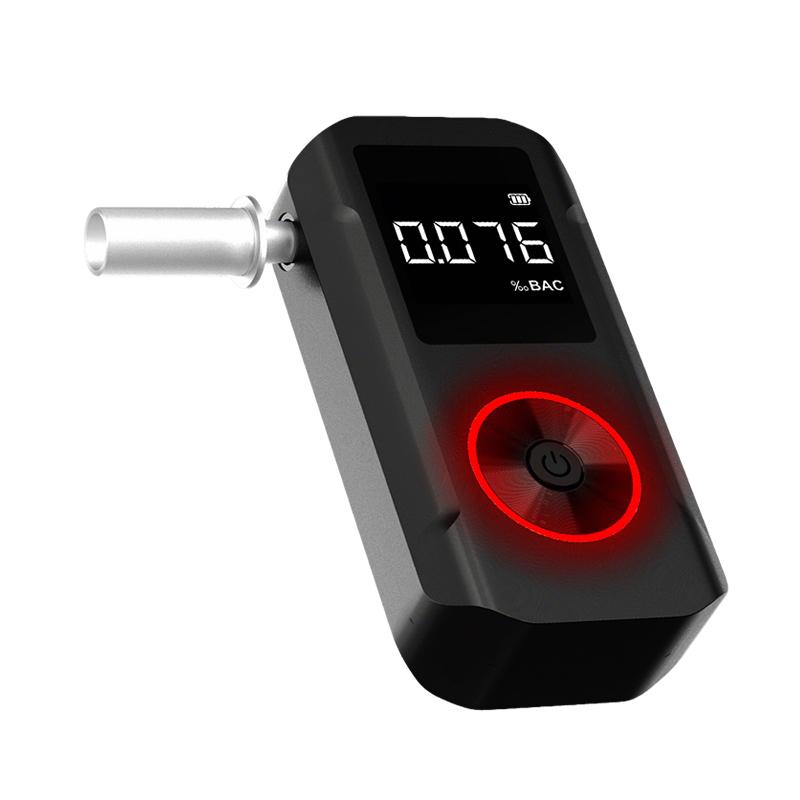

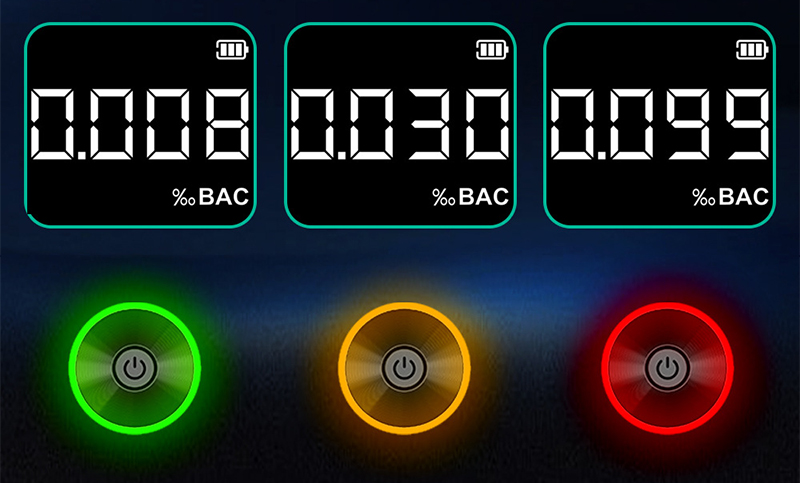

Three-color LED light displays the result


ARM 32-bit Cortex-M4 chip with 12-bit high-precision ADC acquisition
Next-generation alcohol sensor delivers precise readings


Instructions for Use

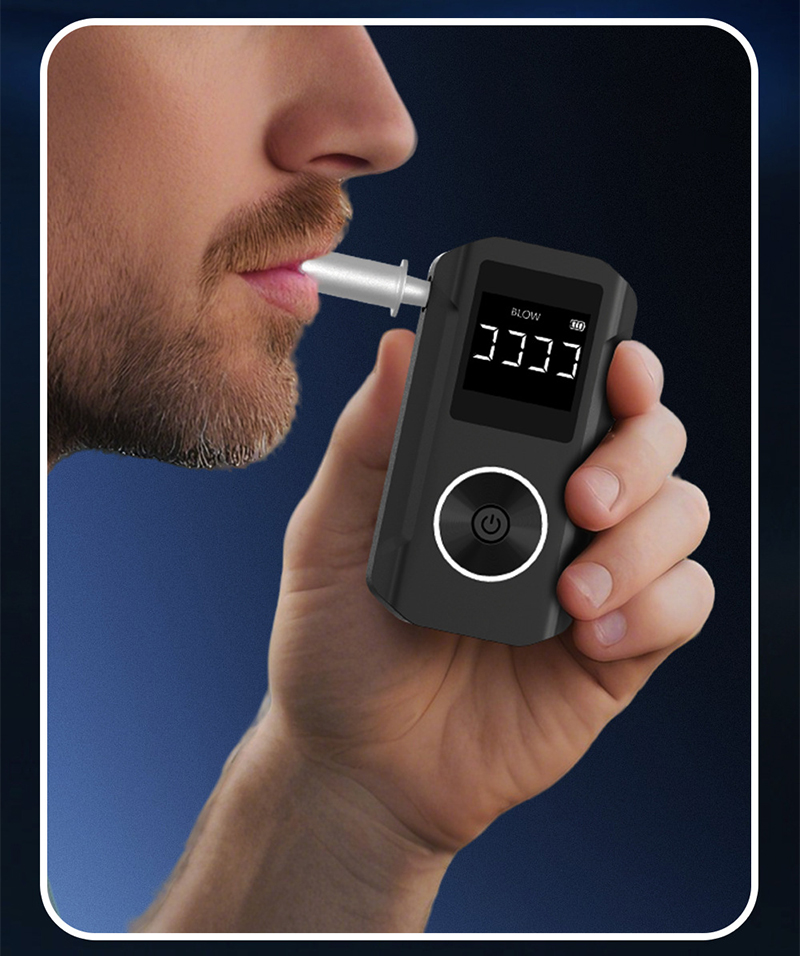

Simple operation, easy to use — complete the test with one hand.

  1. Insert 3 AAA batteries and the mouthpiece into the device.

  2. Press the power button for 2 seconds to turn on the alcohol tester, wait 15 seconds for warm-up, then blow.

  3. Blow for 5 seconds or longer.

  4. Check the result.


Usage Process

Press and hold for 2 seconds to power on → "ALCO" appears → Press once → Wait for "PH" with 15-second countdown (sensor warm-up) → "BLOW" appears, begin blowing (hold for more than 5 seconds) → Result is displayed → Press once to switch display units, press and hold to start a new test, no operation for 15 seconds will automatically power off.

  • Below limit

  • Drink driving

  • Drunk driving
