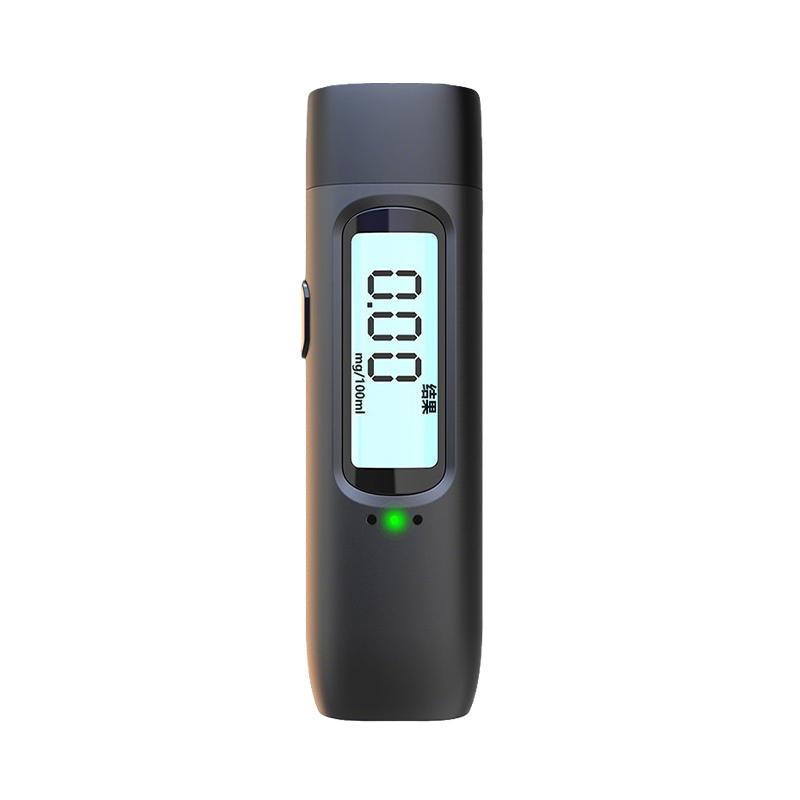

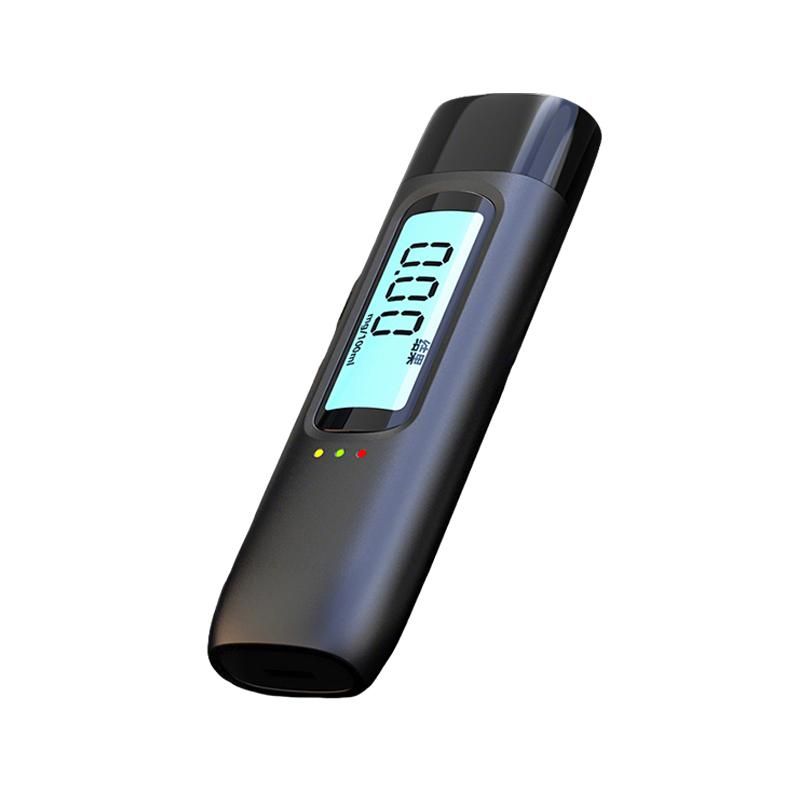

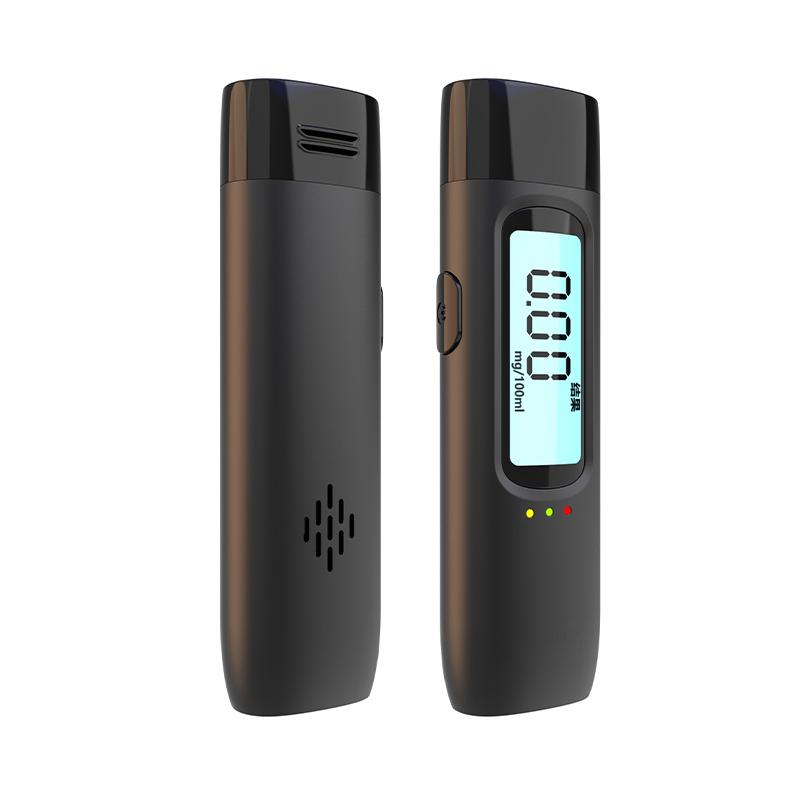

Alcohol Tester

  • Product Name: Alcohol Detector

  • Specification: Alcohol Tester (English), Alcohol Tester (Chinese)

  • Measuring Range: 0–200 mg/100mL

  • Measurement Accuracy: High precision

  • Resolution: ±5% (mg/100ml)

  • Voltage: 5V/1A

  • Weight: 0.053 kg

  • Dimensions: 92 × 16 × 26.3 mm

  • Power Supply: USB charging

  • Warm-up Time: 10 seconds

  • Response Time: 10 seconds

  • Target User: People who have consumed alcohol

Description

Large screen display — specifically detects overnight alcohol
High precision — portable


Zinc alloy material

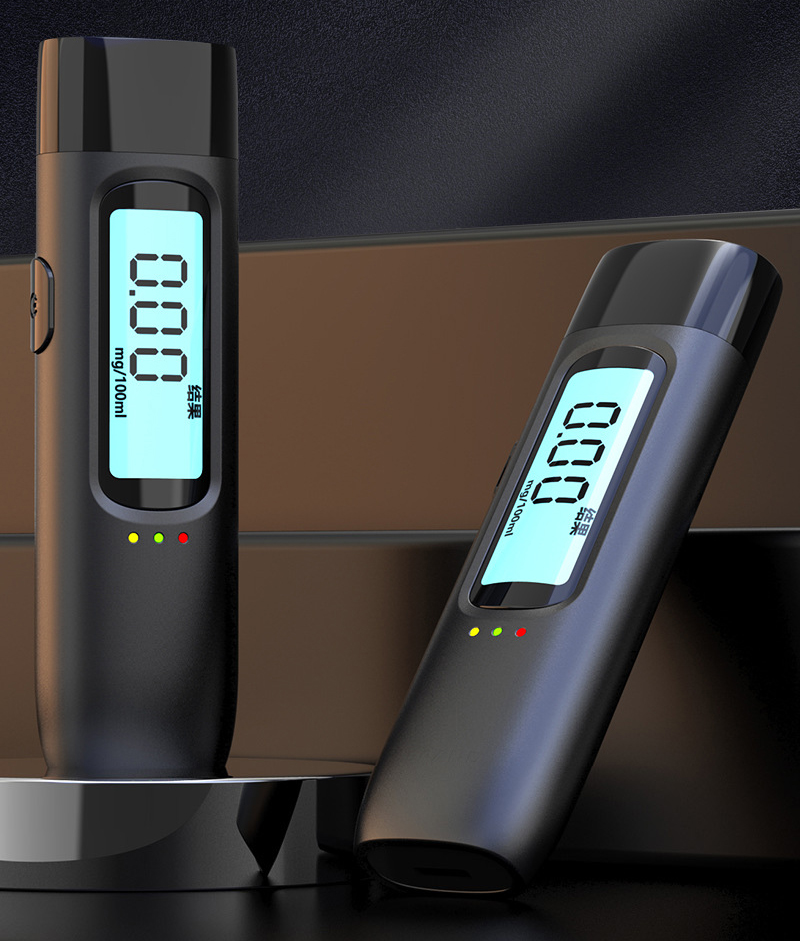

Stylish appearance with exquisite craftsmanship

  • ABS material

  • Zinc alloy material

  • Metal vacuum-plated blow mouthpiece

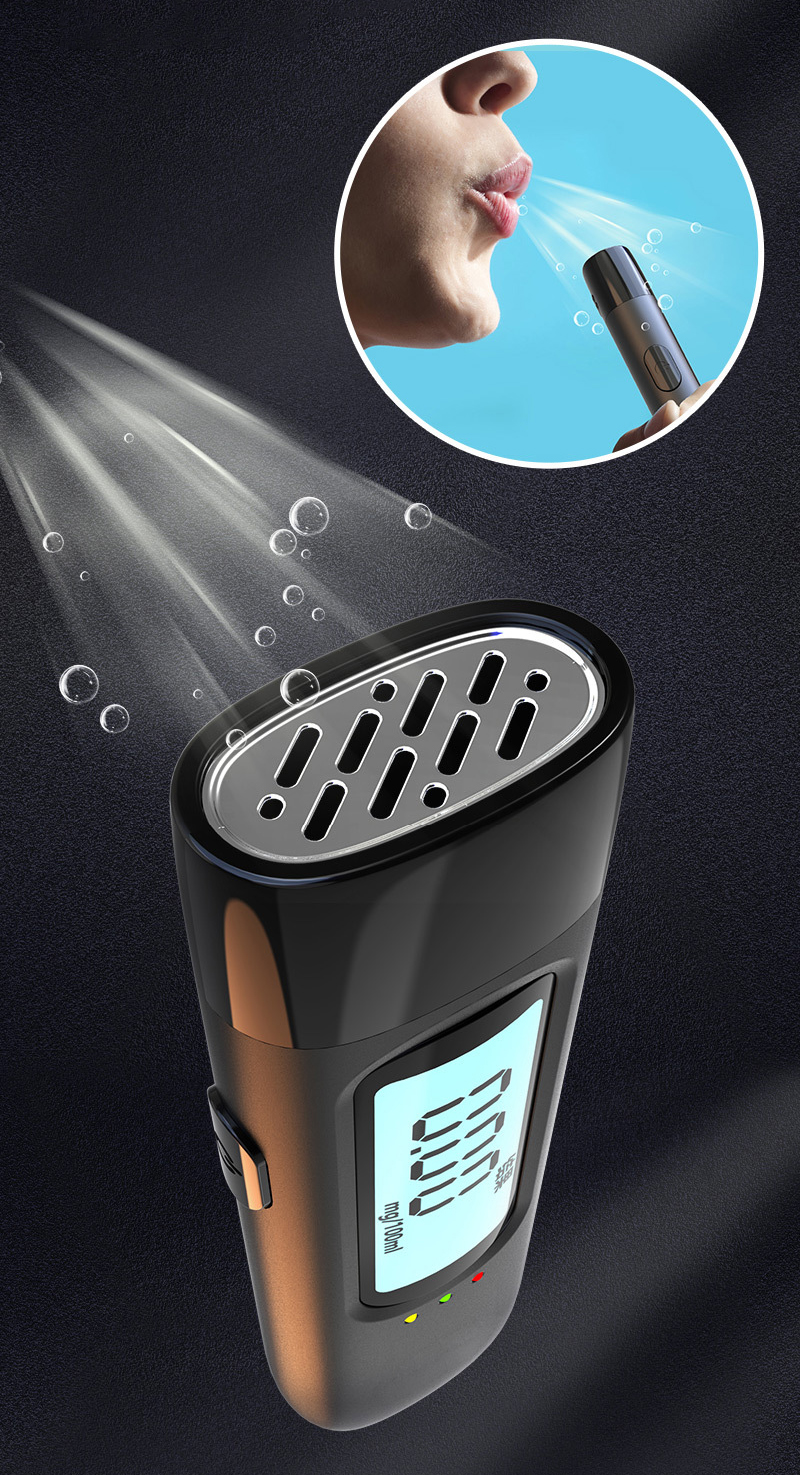

Contactless blowing
More hygienic and healthier


Built-in purification component
Scientifically filters, retaining only alcohol

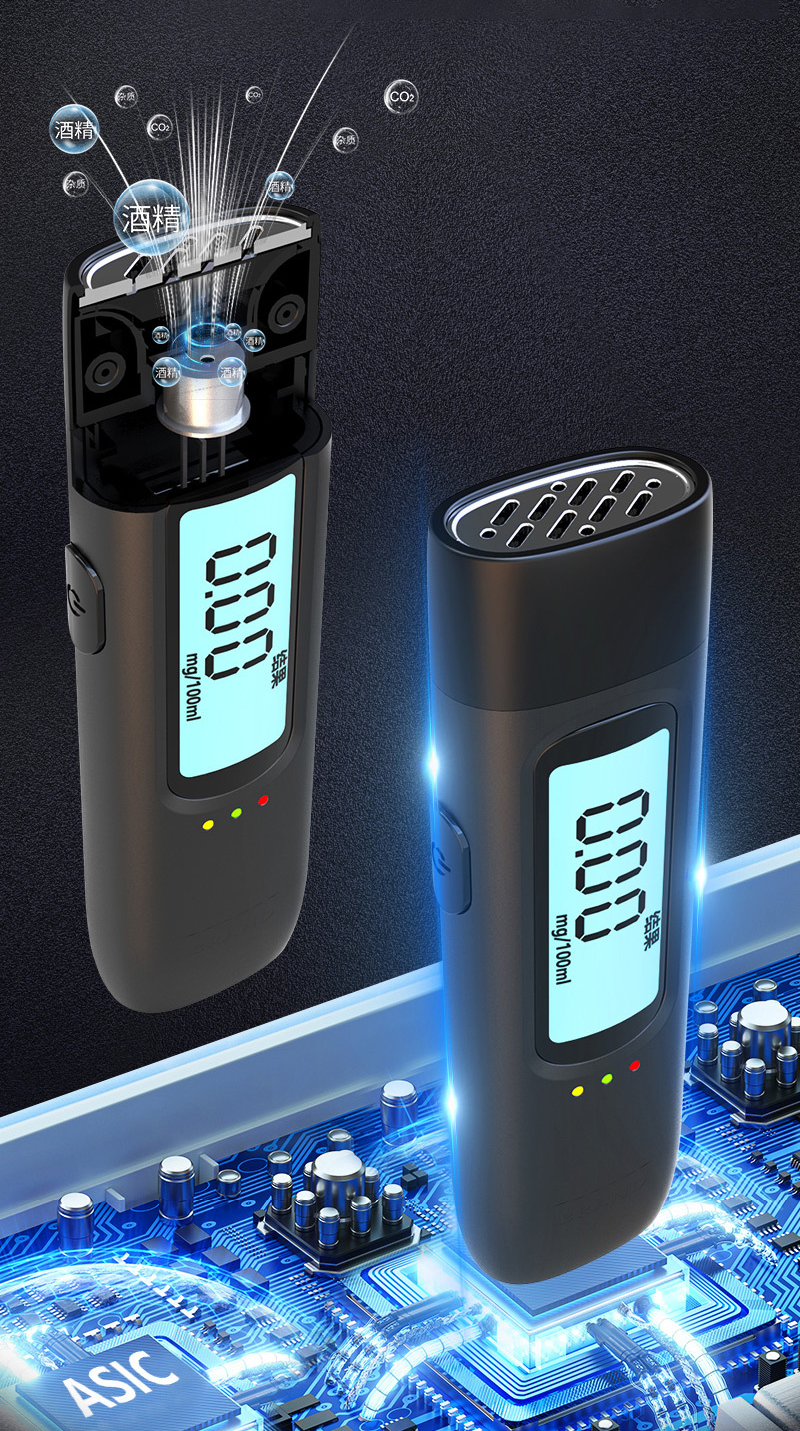

Third-generation ASIC smart chip

  • C language algorithm

  • High-precision sensor

  • Upgraded DFFA

Specifically designed for overnight alcohol detection — smart, durable, and more accurate. Accuracy improved by 50% compared to the previous generation.

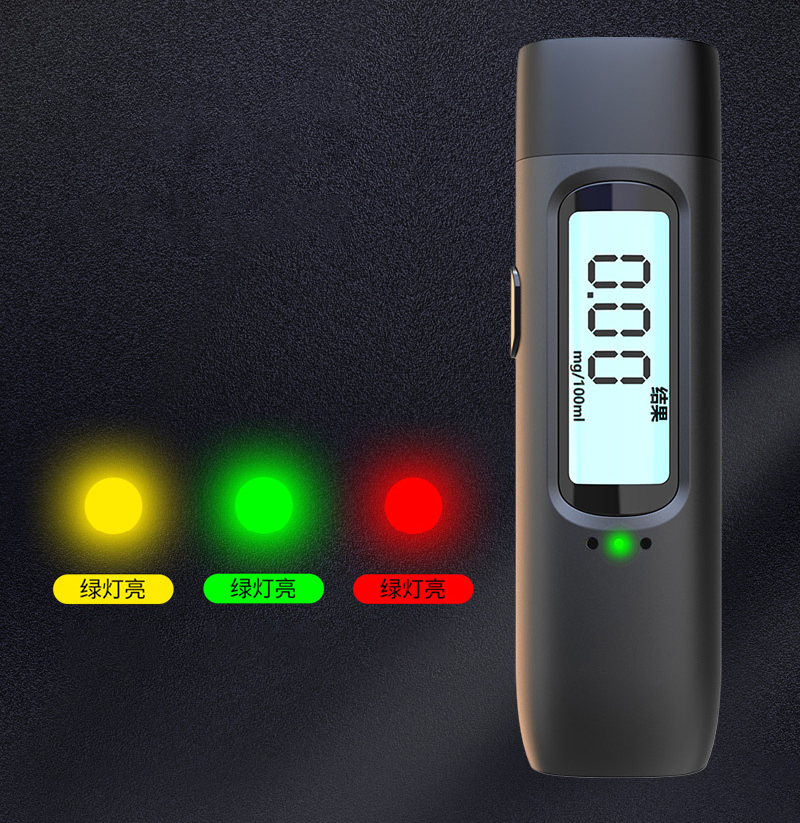

Upgraded three-color light — identify at a glance with voice broadcast

  • Yellow light — Drink driving

  • Green light — Below limit

  • Red light — Drunk driving

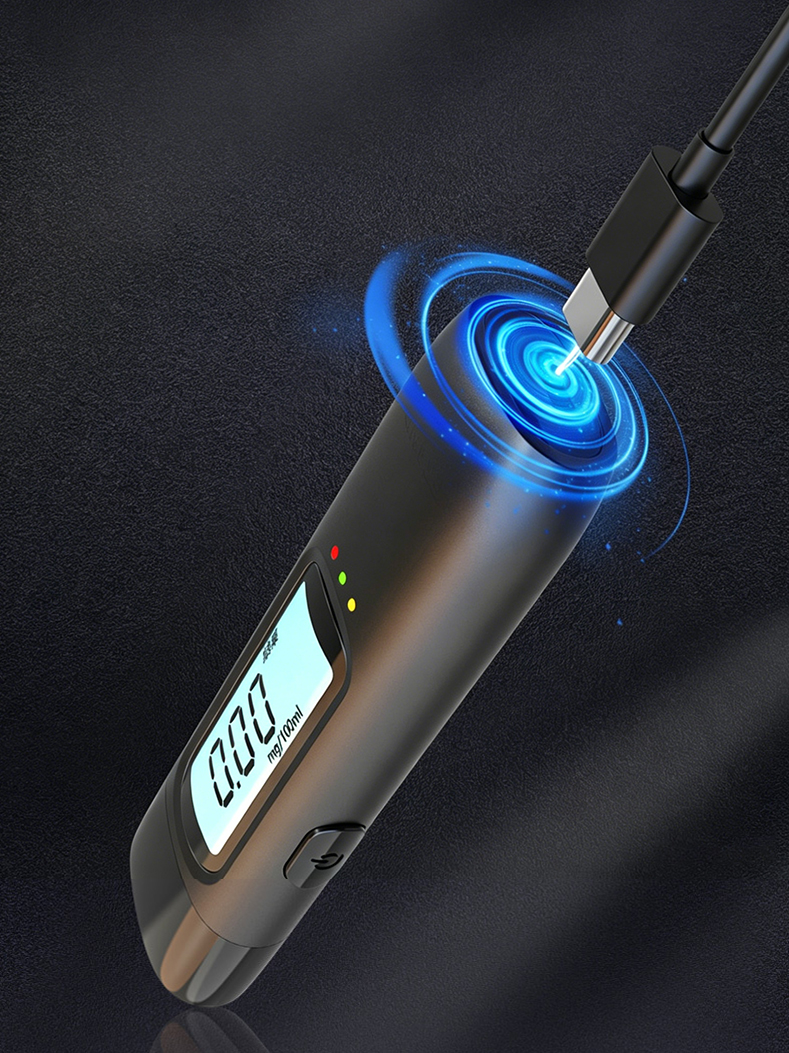

Type-C port
Built-in lithium battery for long operating time

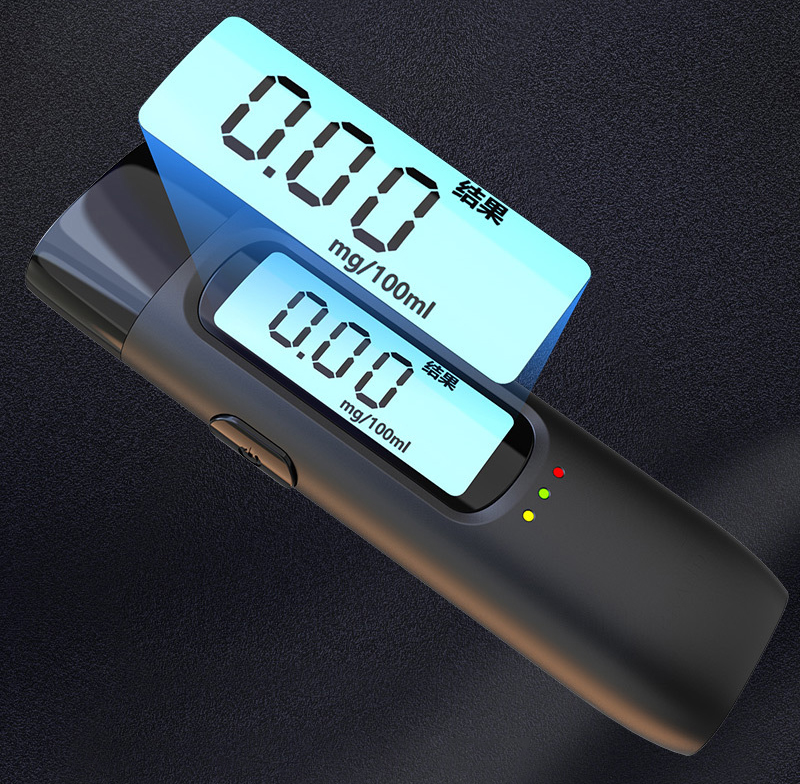

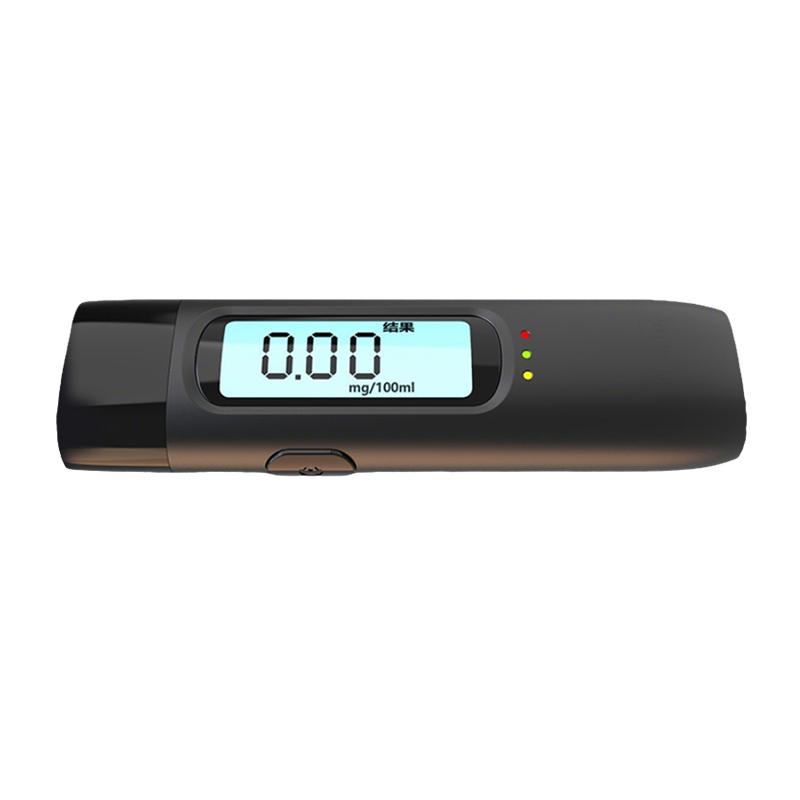

Large LED digital display
Read in one second — clear and easy to read

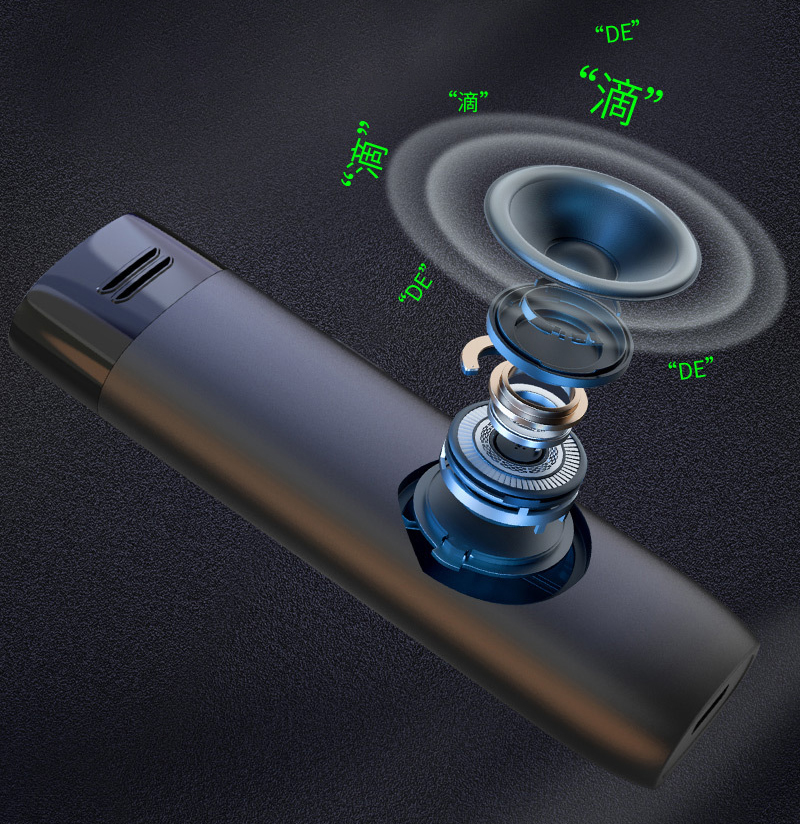

Smart voice broadcast
Accurate announcement of whether alcohol is detected

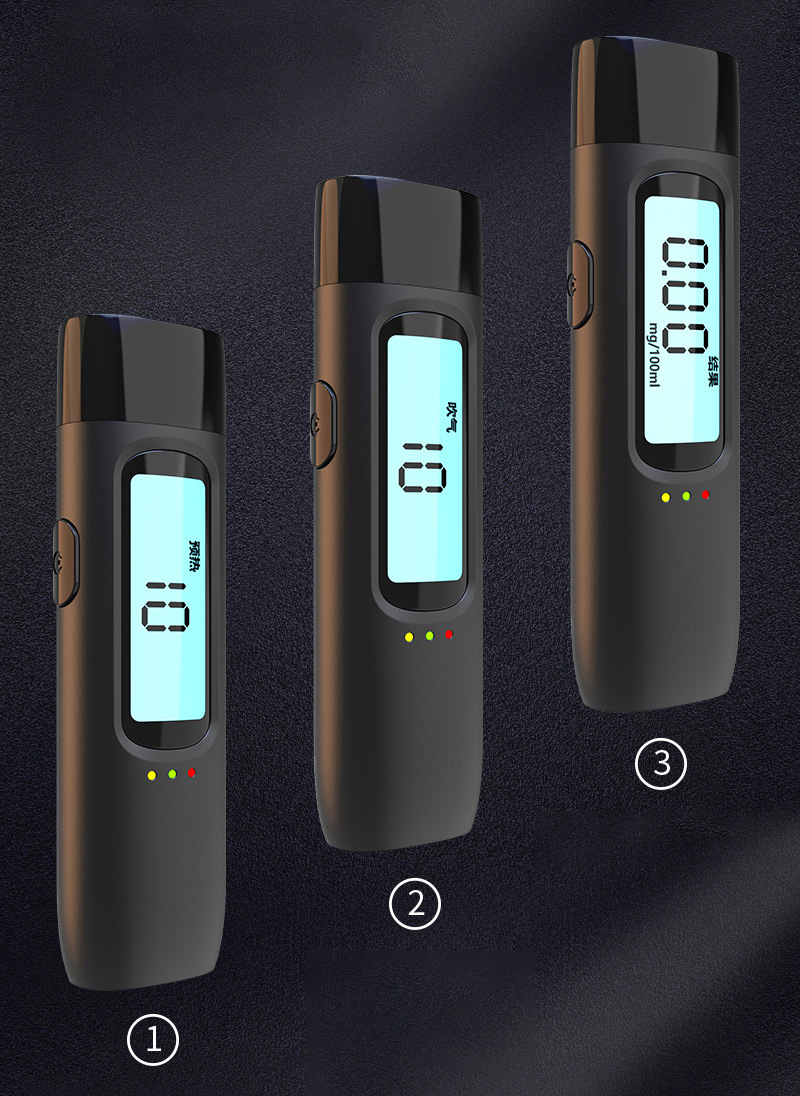

Usage Steps
For more accurate results, wait 20 minutes after drinking before testing.

  1. Press the power button. The voice prompt will say "Warming up, please wait." The warm-up begins and lasts for 10 seconds.

  2. The voice prompt will say "Please blow." Blow for more than 3 seconds within the 10-second countdown. A "beep" sound will indicate that the sensor has been properly triggered.

  3. The test result will be announced by voice, or you can check it according to the color of the indicator light.


Instructions for Use
Simple operation — one-button start

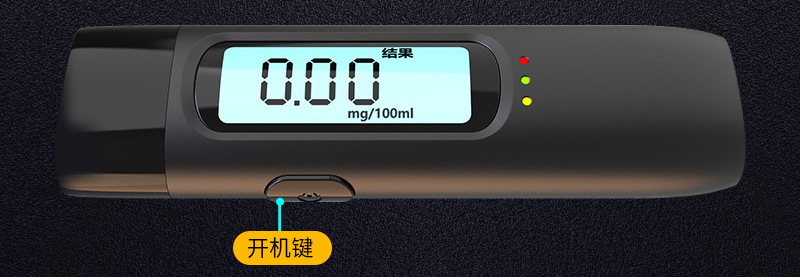

  • Power button


Warm-up

  1. Press and hold the power button for 2 seconds. After the voice prompt "Power on", the tester display will start.

  2. The voice prompt will say "Please wait" and "Warm-up" will appear on the digital display. The screen will show a 10-second countdown. When the countdown reaches 0, warm-up is complete.

Testing:

  1. After warm-up is complete, the device enters the "Blow" state. When you hear "Please blow", the display shows a 10-second countdown. Blow continuously for more than 3 seconds from a distance of 2-3 cm in front of the mouthpiece (do not touch or put the mouthpiece in your mouth). Then stop blowing. Wait a few seconds. The result will be displayed on the screen and announced by voice.

Note:

  1. If you blow correctly, the screen countdown will jump to 6 seconds.

  2. If you blow incorrectly or do not blow at all, the displayed result will be 0.

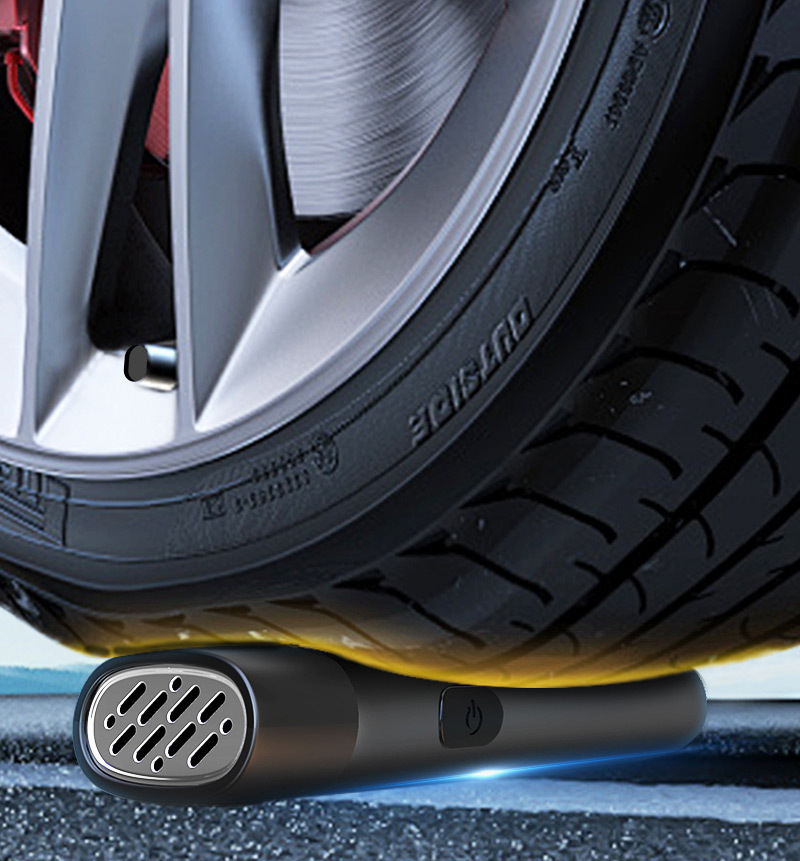

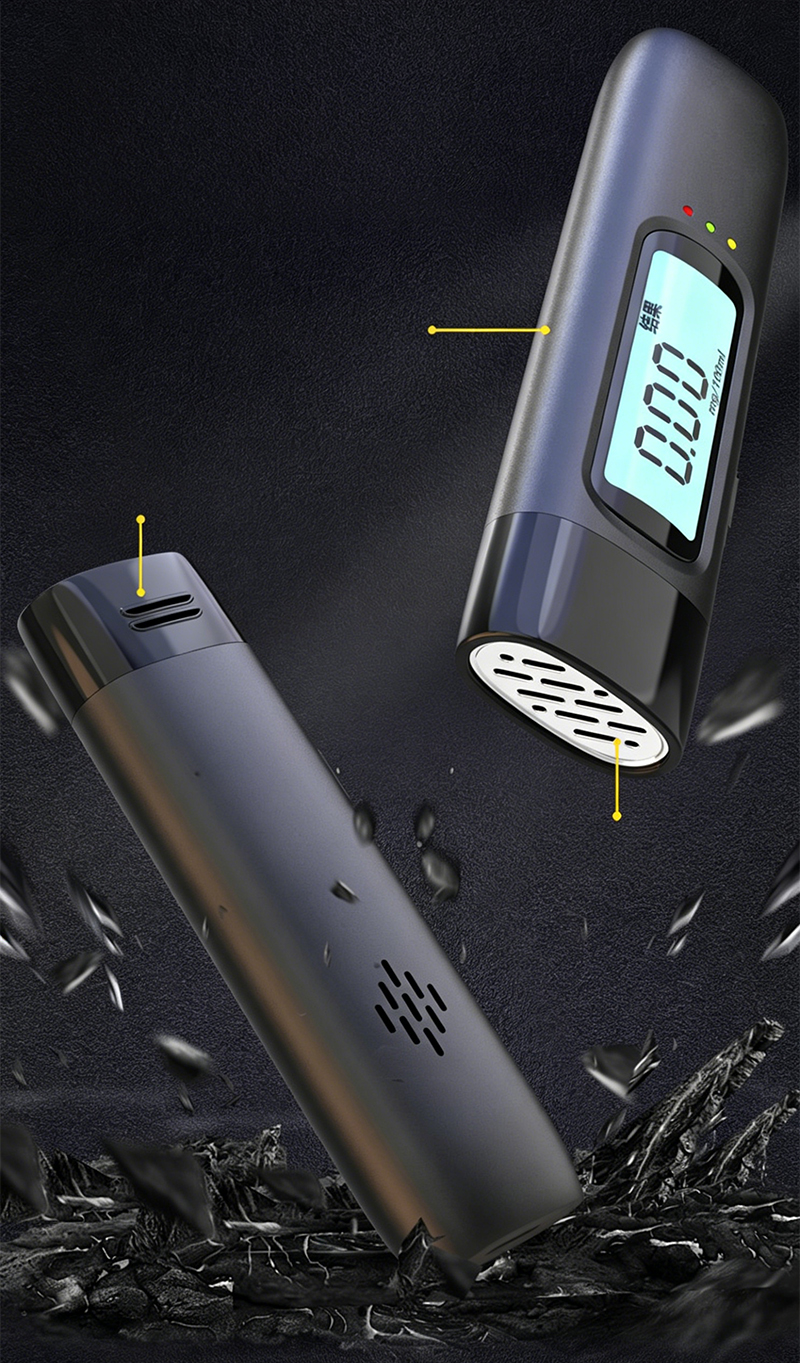

Zinc alloy material
Substantial feel — excellent quality

  • Sturdy and deformation-resistant — remains functional even after being crushed.
