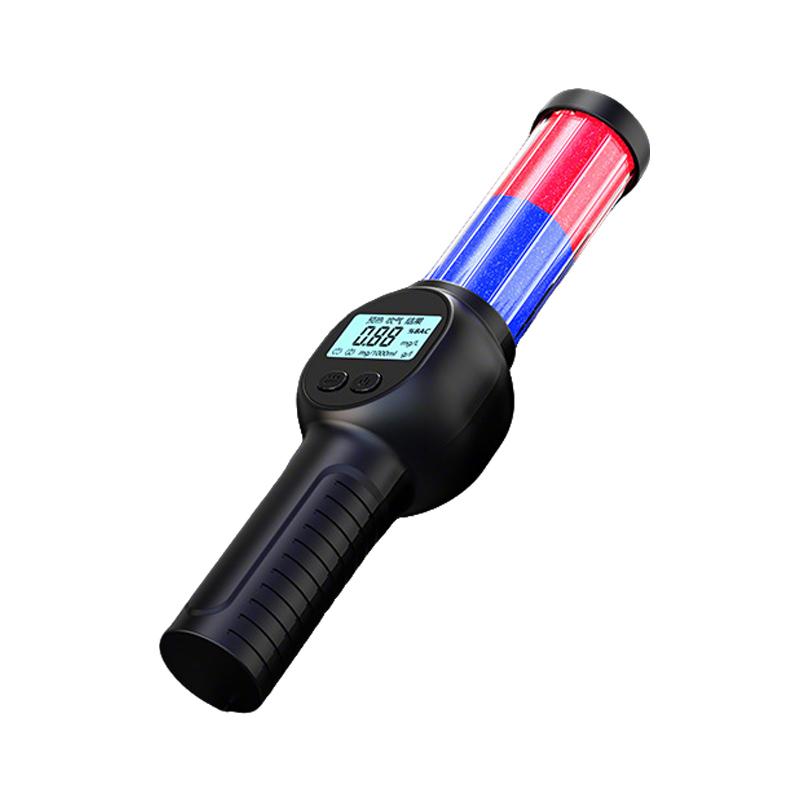

Alcohol Tester

  • Product Name: Alcohol Tester

  • Specifications: Alcohol Tester (Chinese), Alcohol Tester (English)

  • Measurement Range: 0–200 mg/100mL

  • Measurement Accuracy: High precision

  • Dimensions: 150 × 28.7 × 30 mm

  • Power Supply: Rechargeable

  • Warm-up Time: 10 seconds

  • Response Time: 10 seconds

  • Voltage: 5V 1A

  • Measurement Object: Drivers

  • Resolution: 0.01

Description

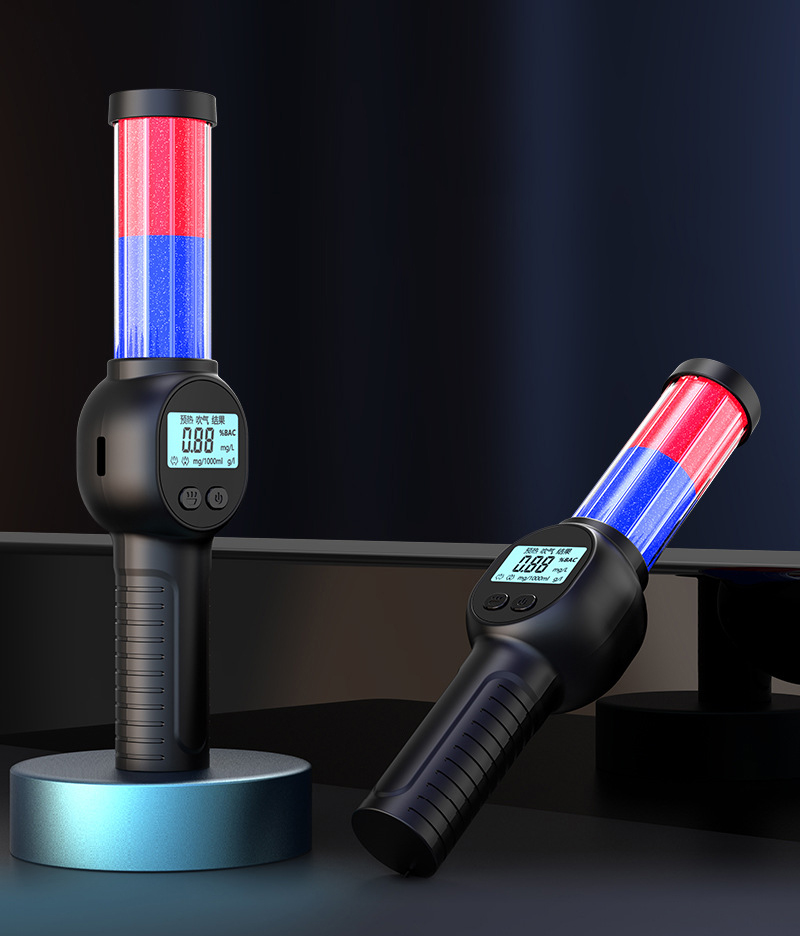

Alcohol Tester – High-Precision Mini Version


Wide Application – Portable & Fast Detection

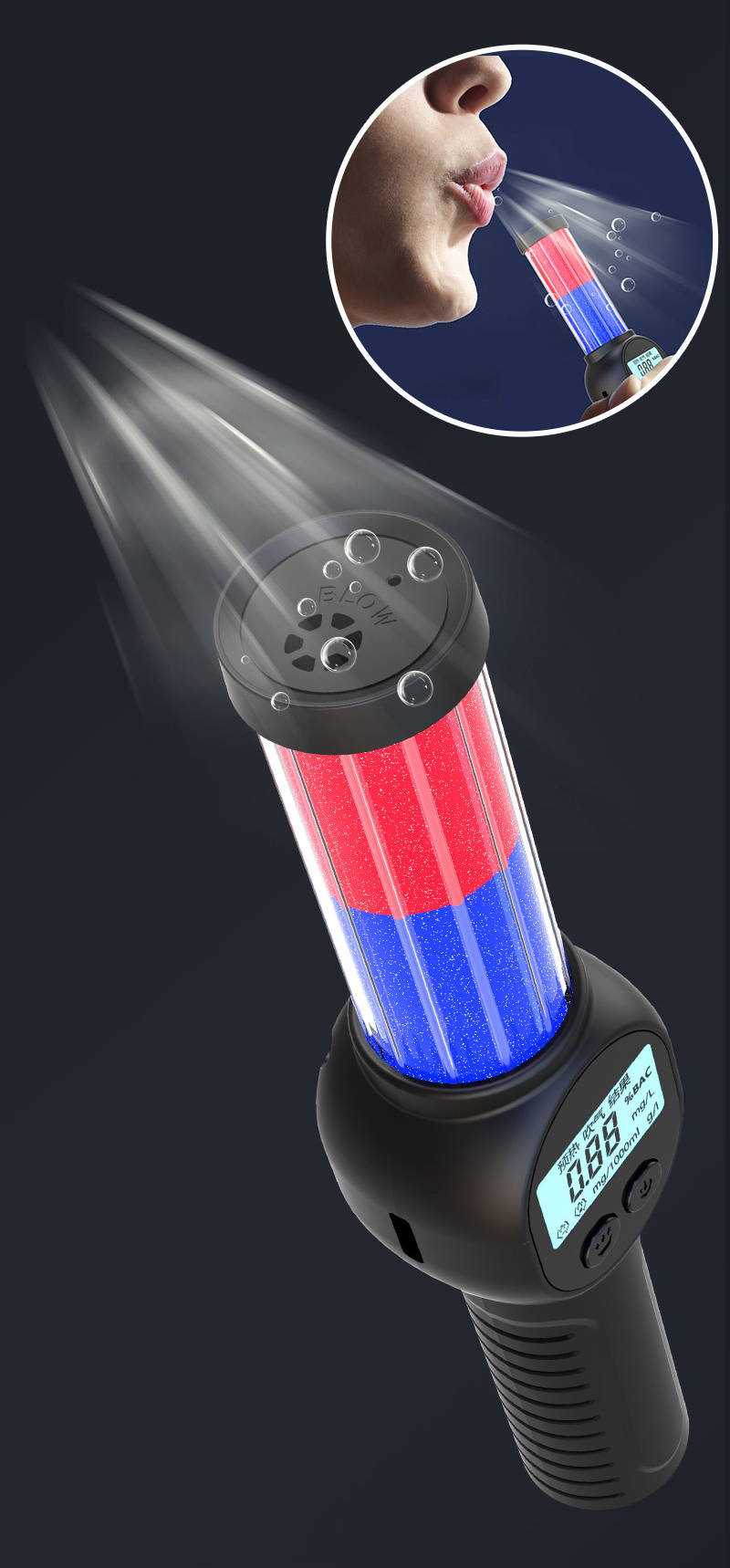

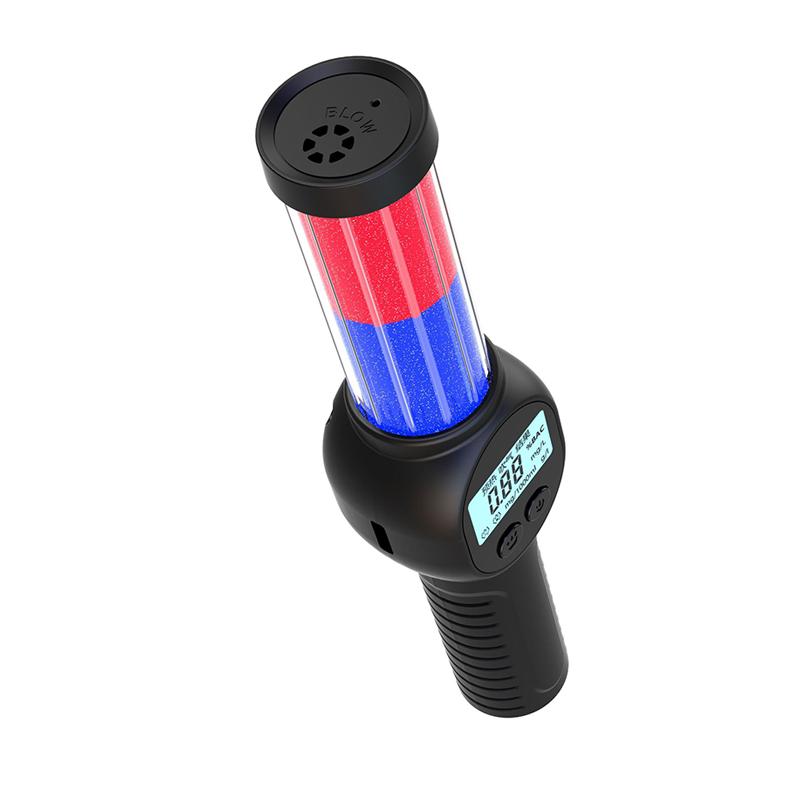

Contactless blowing – safer and more hygienic

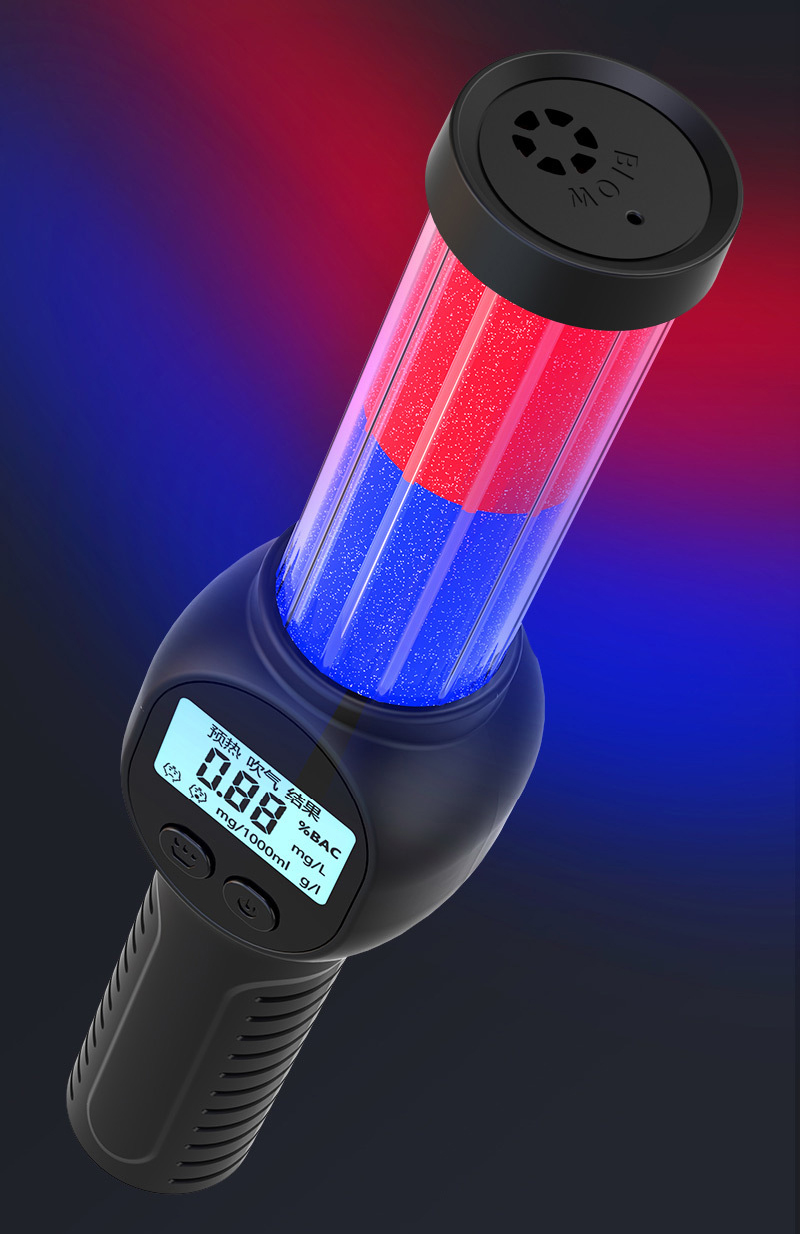

Red & Blue Flashing
When the alcohol level exceeds the limit, the red and blue lights will strobe.
When the device detects alcohol, the red light will flash as a warning, revealing drunk driving.

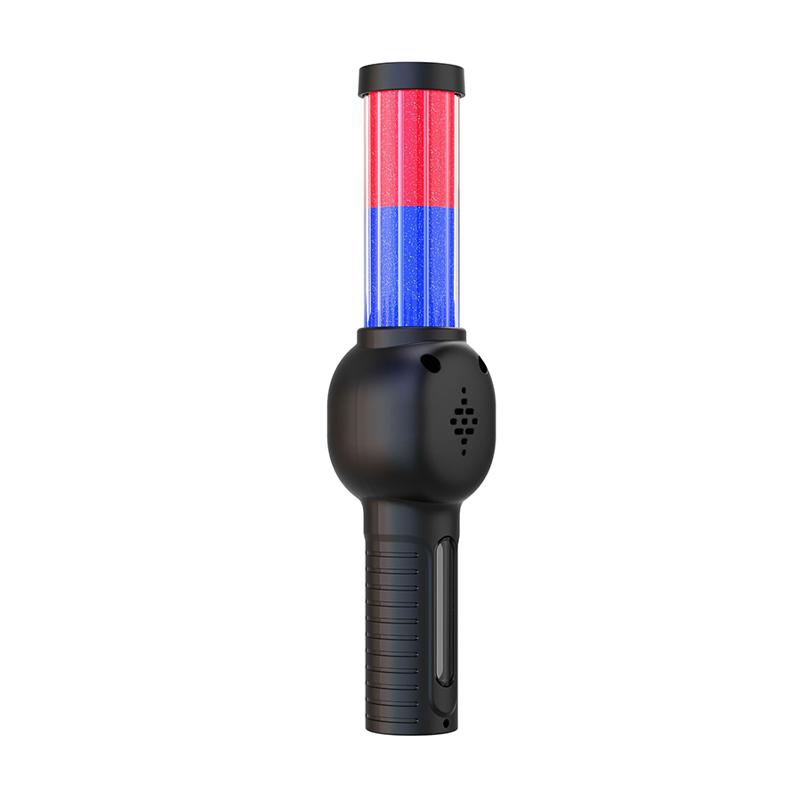

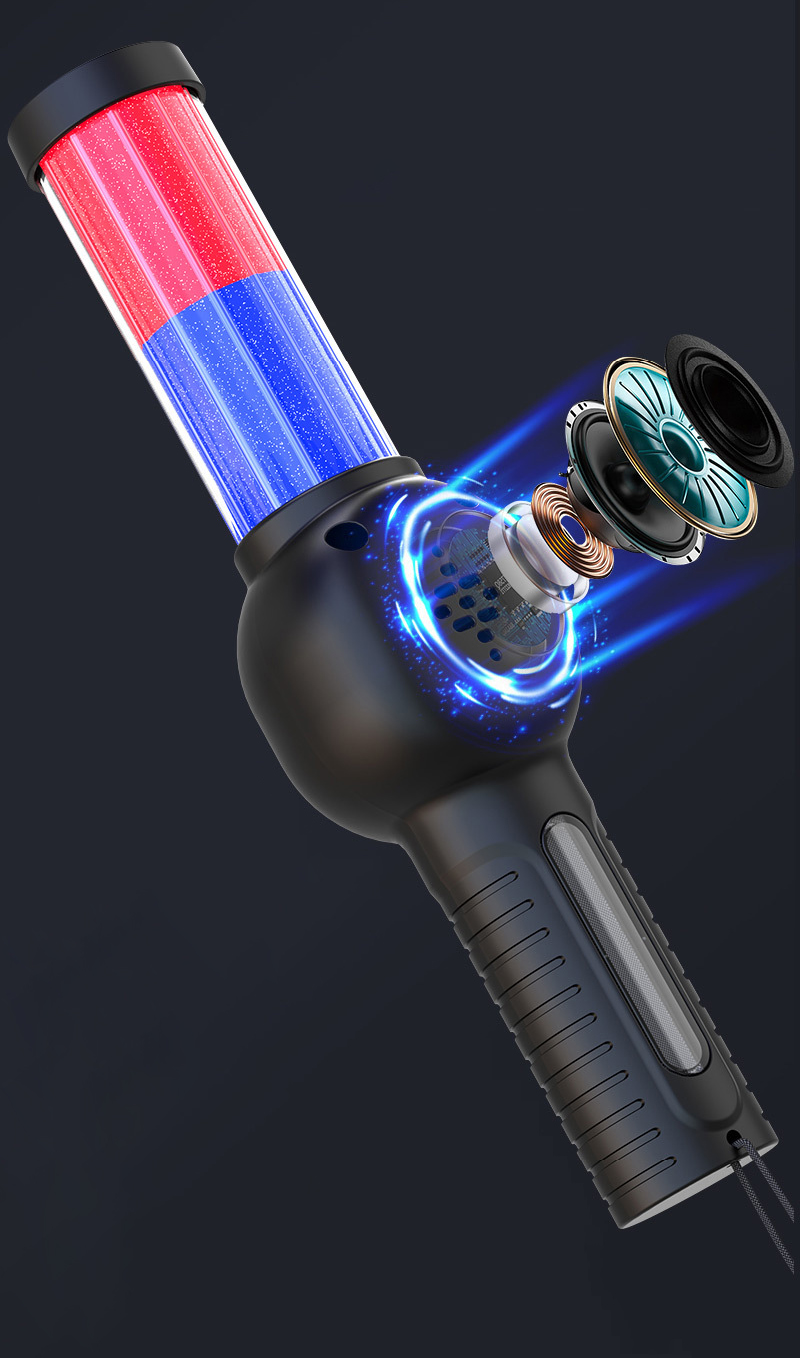

Full voice broadcast – clear and audible
Intelligent voice for easy testing

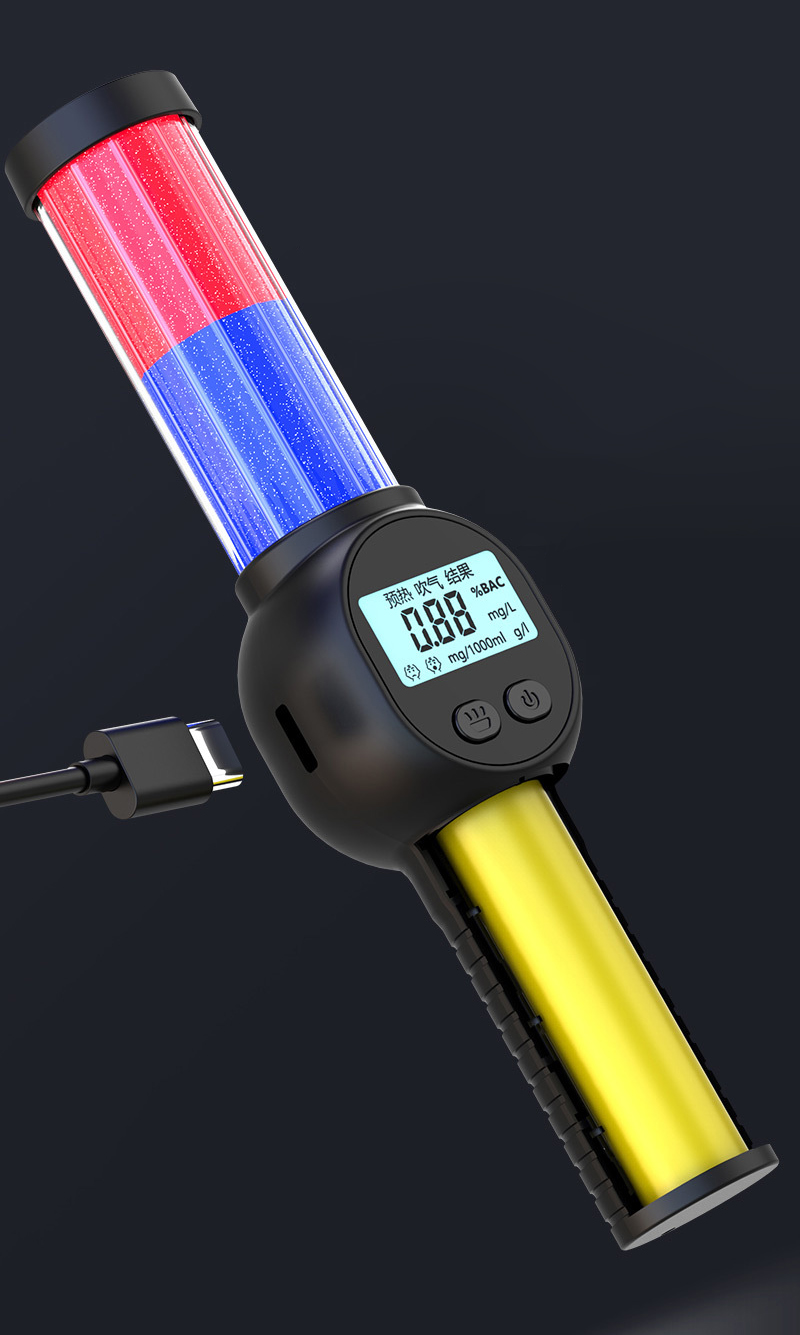

Type-C Port
Built-in large-capacity lithium battery + super fast charging

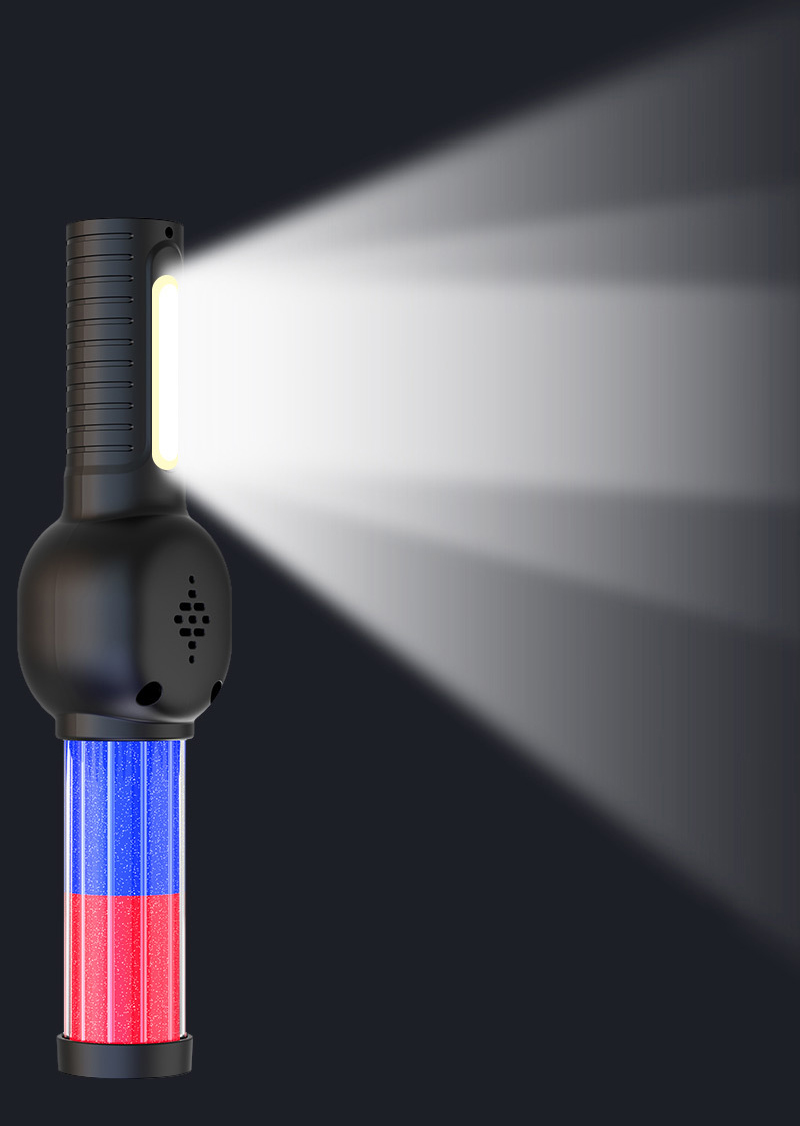

Easily illuminates 60 m²
Ultra-bright LED light source – low energy consumption, high brightness

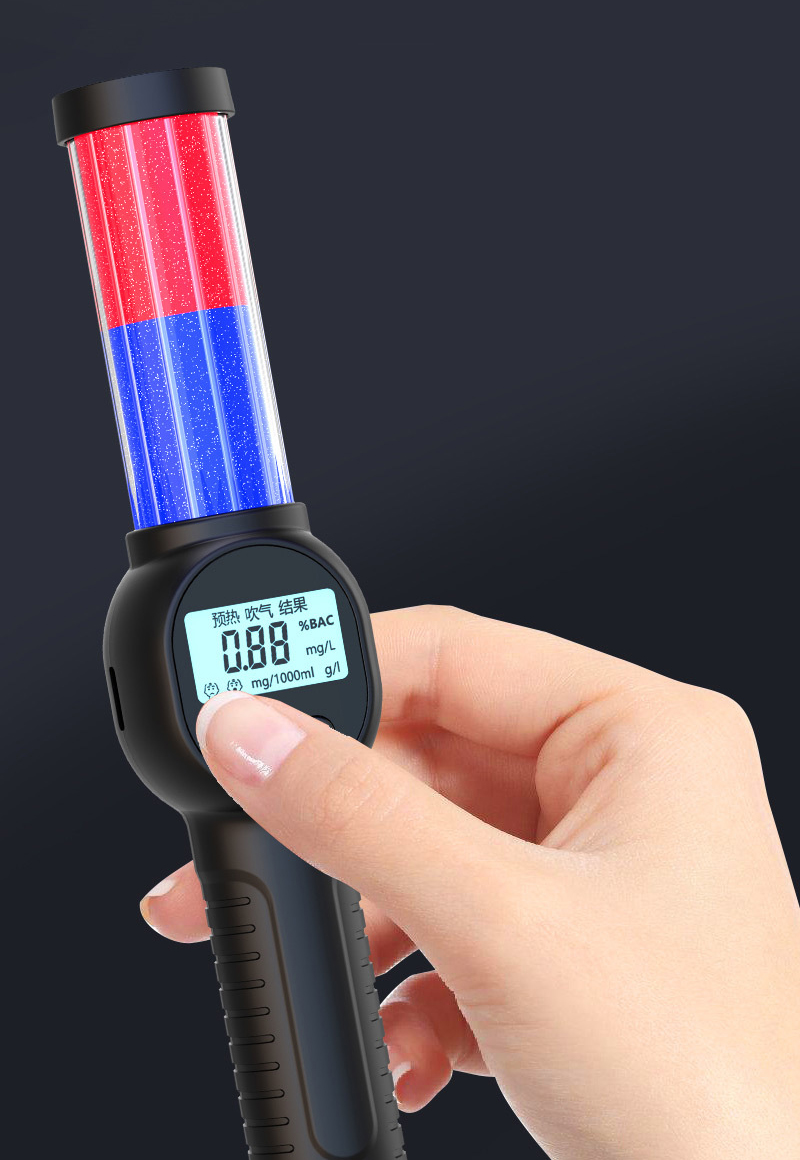

Digital high-definition color screen
Clearer readings, even more visible at night

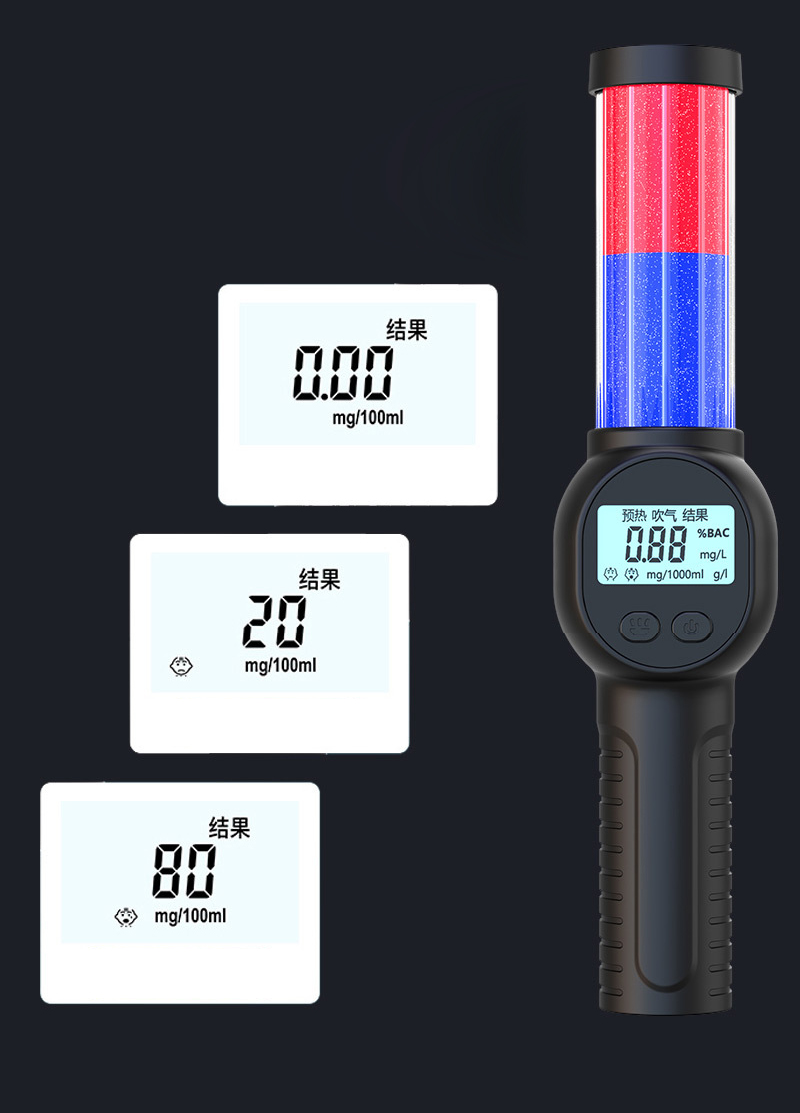

  • Red & blue light steady on – within limit (not exceeding)

  • Red & blue light fast flashing – Drunk Driving (DUI)

  • Red & blue light strobe flashing – Drunken Driving (DWI)

* Note: A BAC of 20mg/100ml or higher constitutes Drunk Driving (DUI), and 80mg/100ml or higher constitutes Drunken Driving (DWI).


Instructions for Use

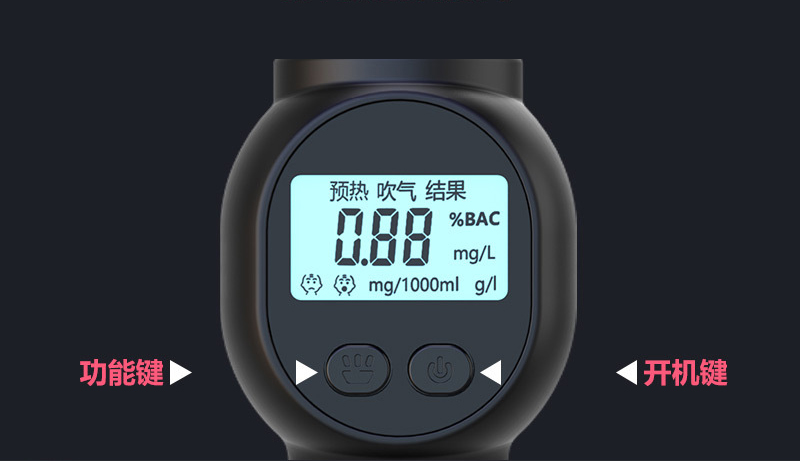

Two buttons – simple operation

  • Function Button

  • Power Button

Warm-up

  1. Press and hold the power button for 2 seconds. After the voice prompt "Power on", the tester's display screen will start.

  2. The voice prompts "Please wait" and "Warming up" will be heard, and a countdown of 10 seconds will appear on the screen. When the countdown reaches 0, warm-up is complete.

Testing:

  1. After "Warm-up" is complete, the device enters the "Blowing" state. When you hear "Please blow", the display shows a 10-second countdown. Blow into the air inlet from the front at a distance of 2–3 cm for more than 3 seconds, then stop blowing (do not touch the air inlet or put it in your mouth while blowing).

  2. Wait a few seconds. The measurement result will be displayed and announced by voice.

Note:
(1) If you blow correctly, the display will jump to a 6-second countdown.
(2) If you blow incorrectly or do not blow at all, the displayed result will be 0.

Note:

When the alcohol tester is first taken out of its packaging, or has not been used for a long time, a large amount of gas and other impurities may adhere to the sensor.

In this case, you need to press the power button several times repeatedly to clean the alcohol tester through repeated warm-up cycles.

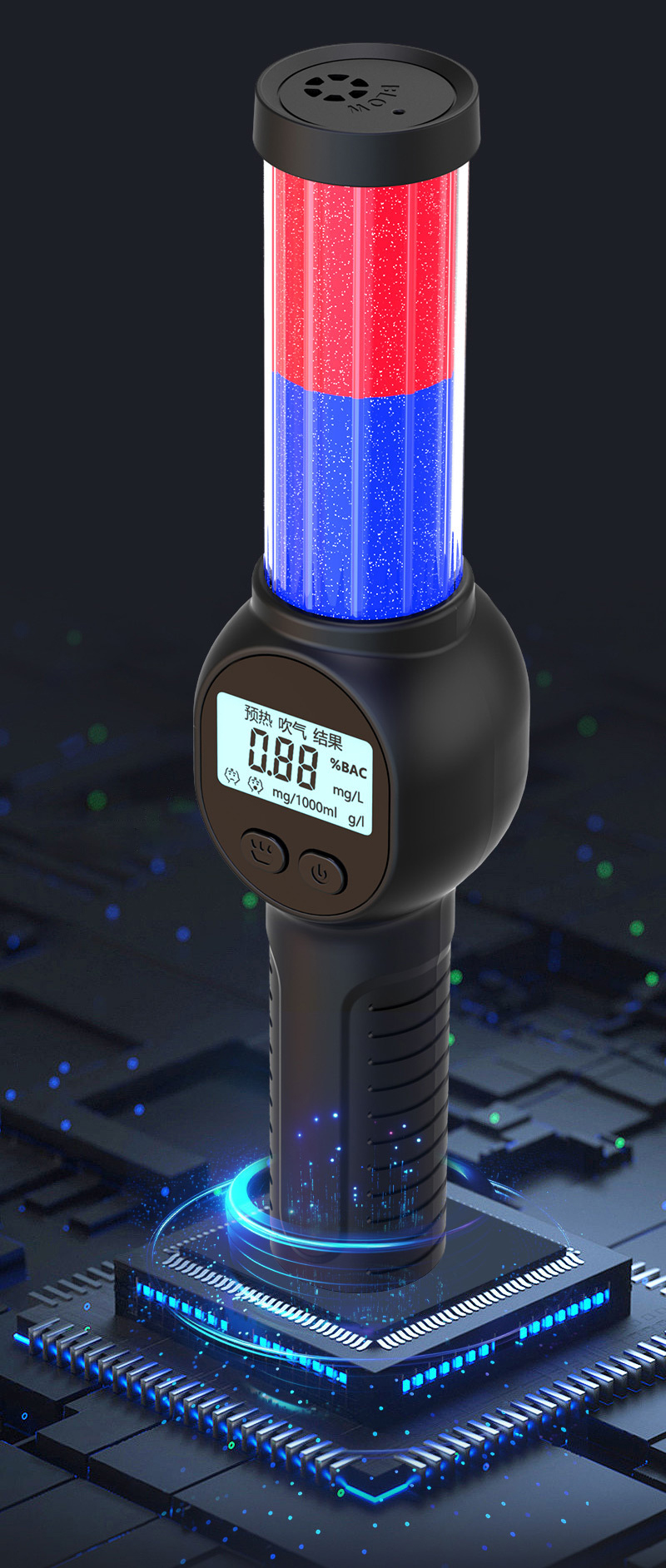

Intelligent AI Chip
Prevents false blowing – no test will be automatically performed without airflow.
