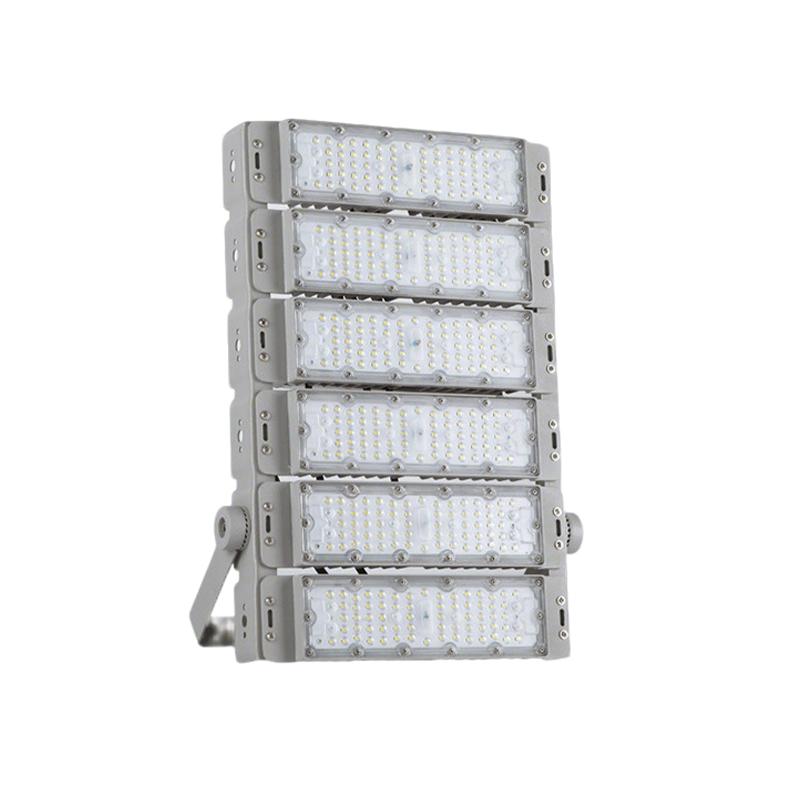

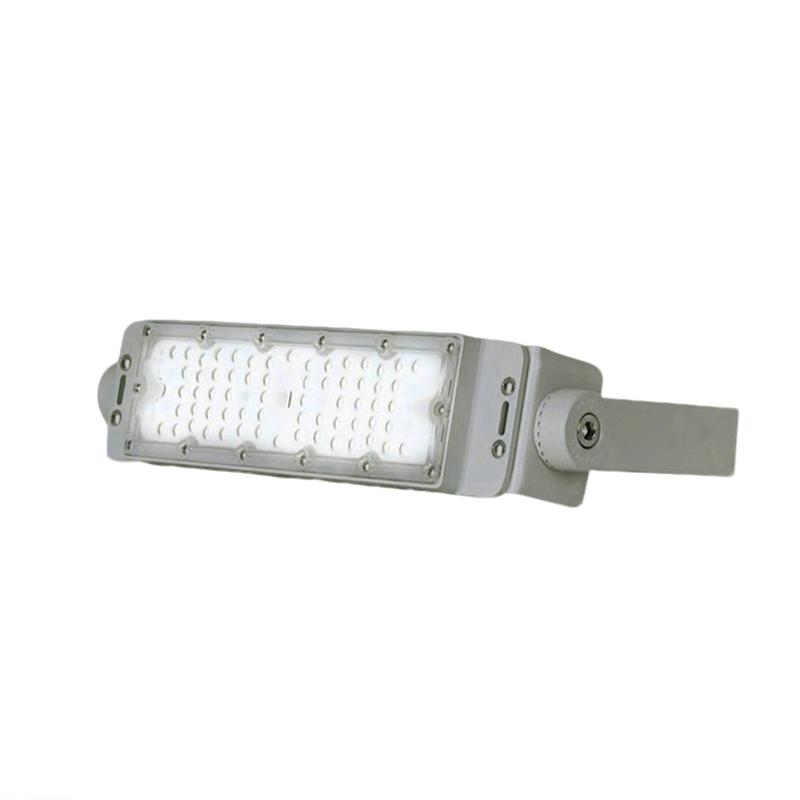

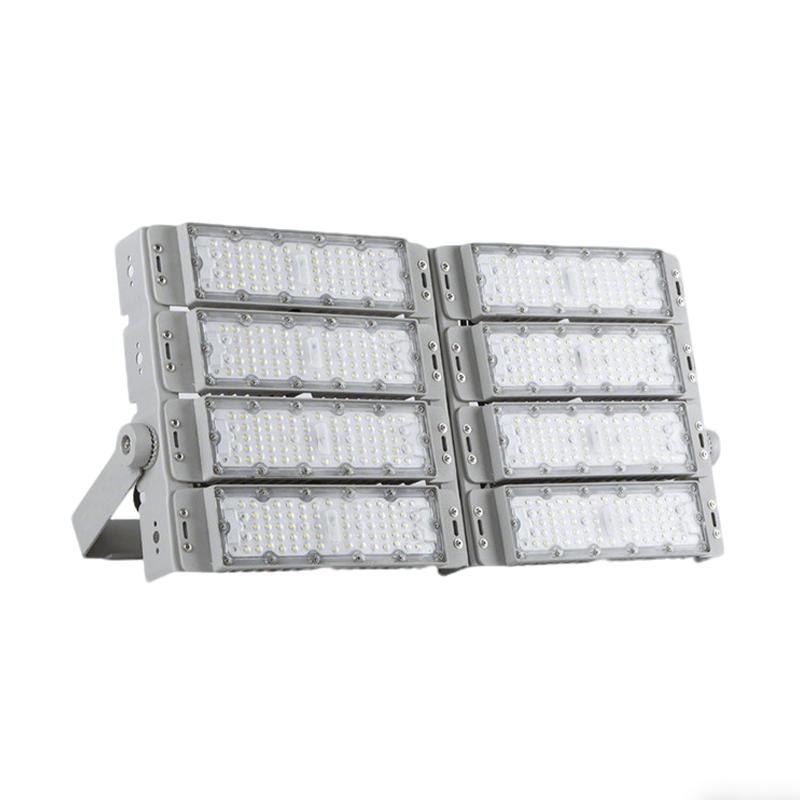

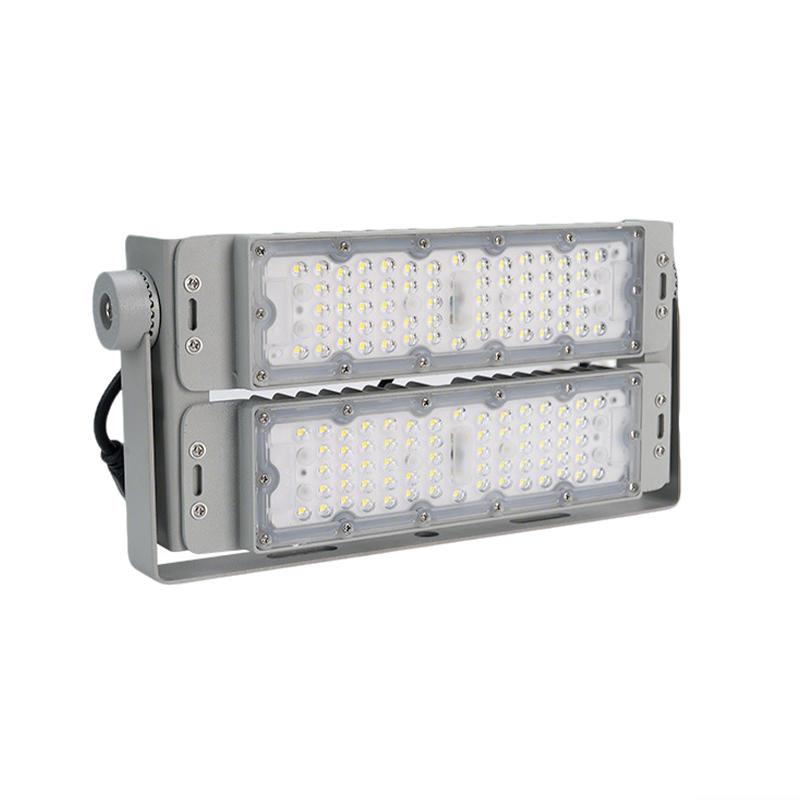

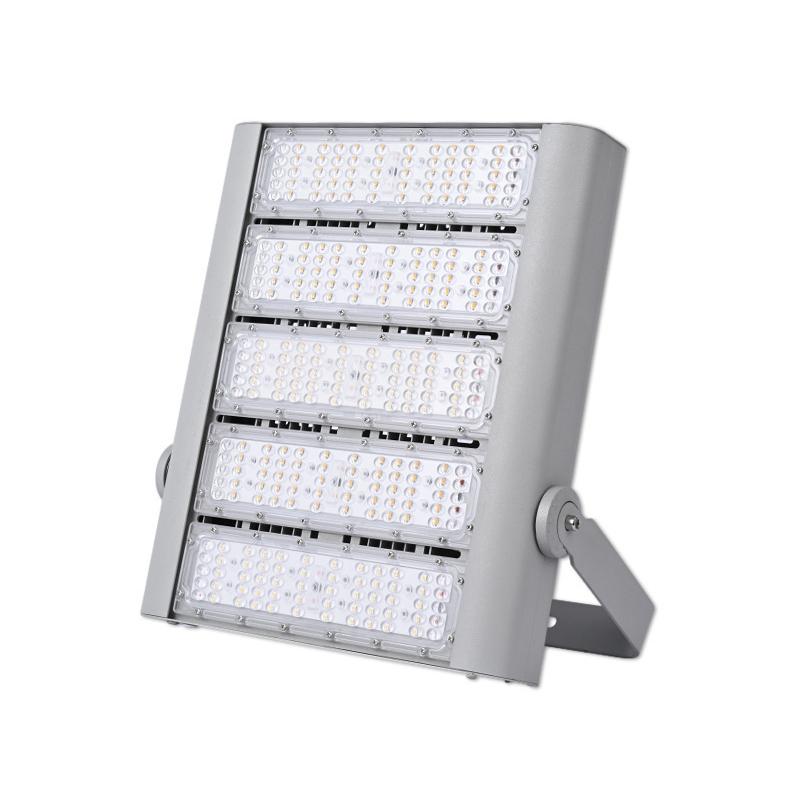

LED Floodlight

  • Product Name: LED Floodlight

  • Specifications: 50W, 100W, 150W, 200W, 250W, 300W, 400W, 500W, 600W

  • Housing Material: Aluminum alloy

  • Process: Die-casting

  • Power Supply Method: Socket power supply

  • Input Voltage: 85-265V

  • Power Range: 100-1000W

  • Protection Rating: IP66

  • Luminous Flux: 5500-66,000 lm

  • Color: Silver-gray

  • Application Scenarios: Billboards, parks, stadiums, courtyards, squares, etc.


Description

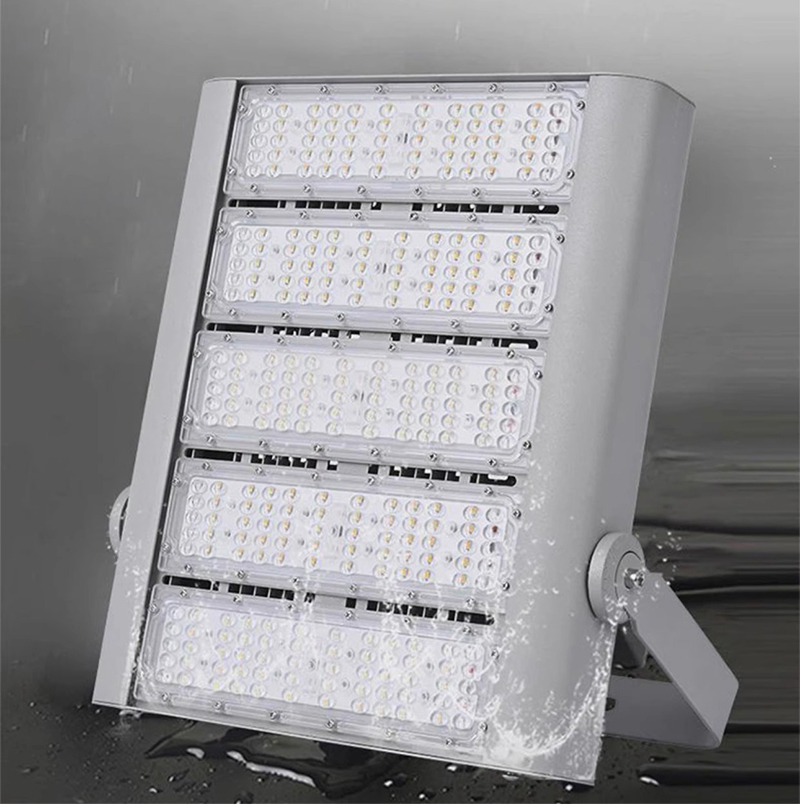

Outdoor waterproof — no entry for rain
Waterproof design adapts to various harsh environments, withstanding wind, rain, and thunderstorms.

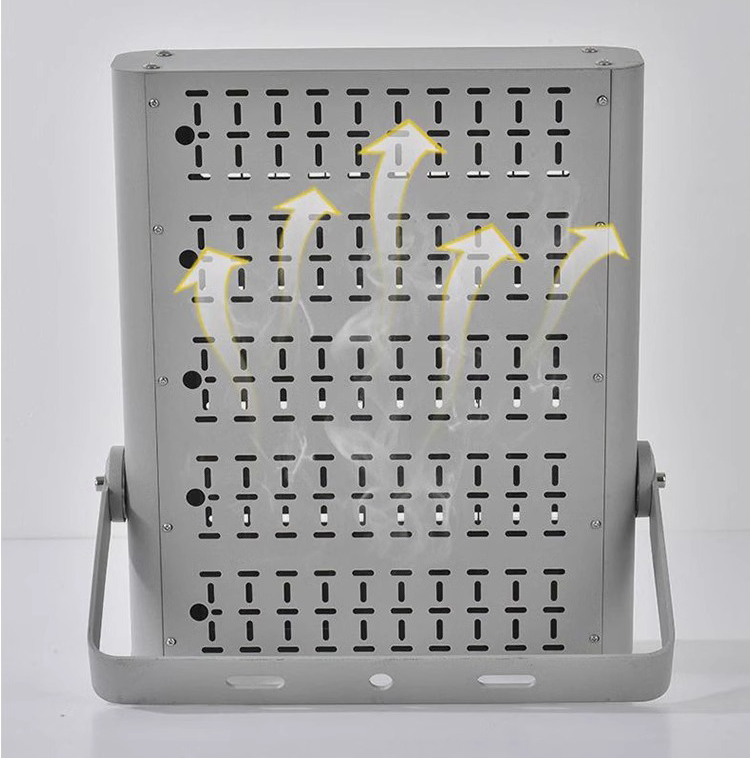

Aluminum heat dissipation
Back aluminum construction increases air convection area for faster heat dissipation.

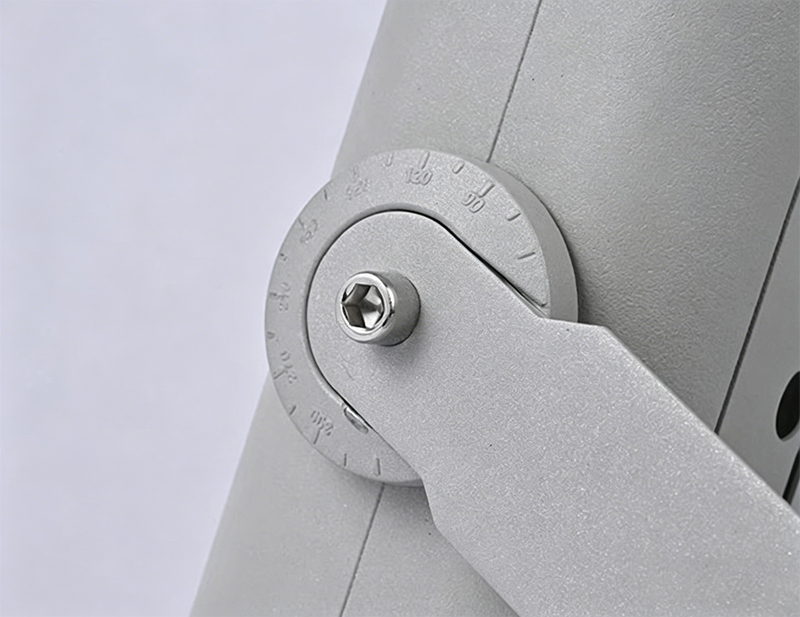

Flexible bracket
Aluminum lamp body — rotatable, flexible, and stable.

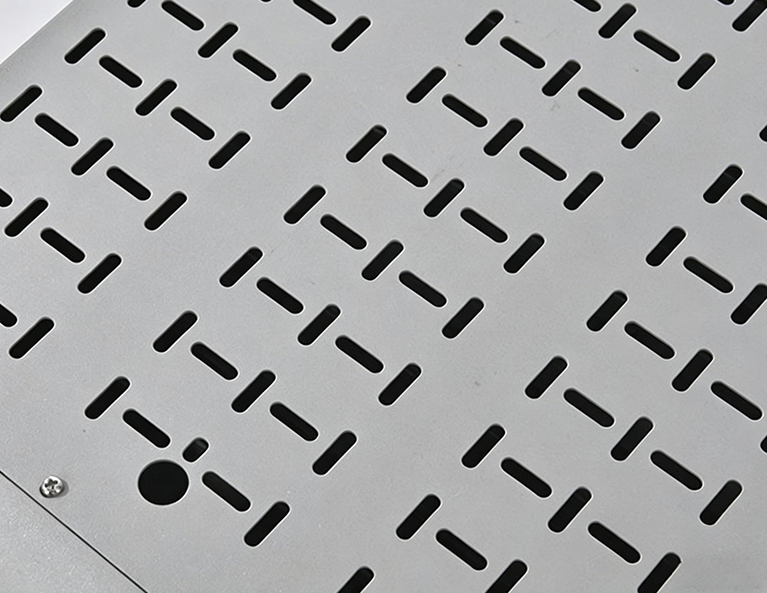

Aluminum heat dissipation design
Aluminum back panel increases air convection area for faster heat dissipation.

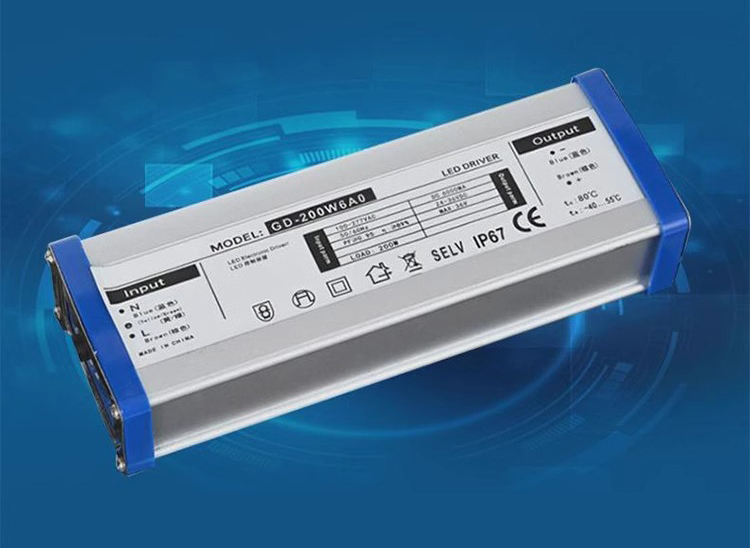

Constant current driver
Constant current power supply — stabilizes current and protects the chip.

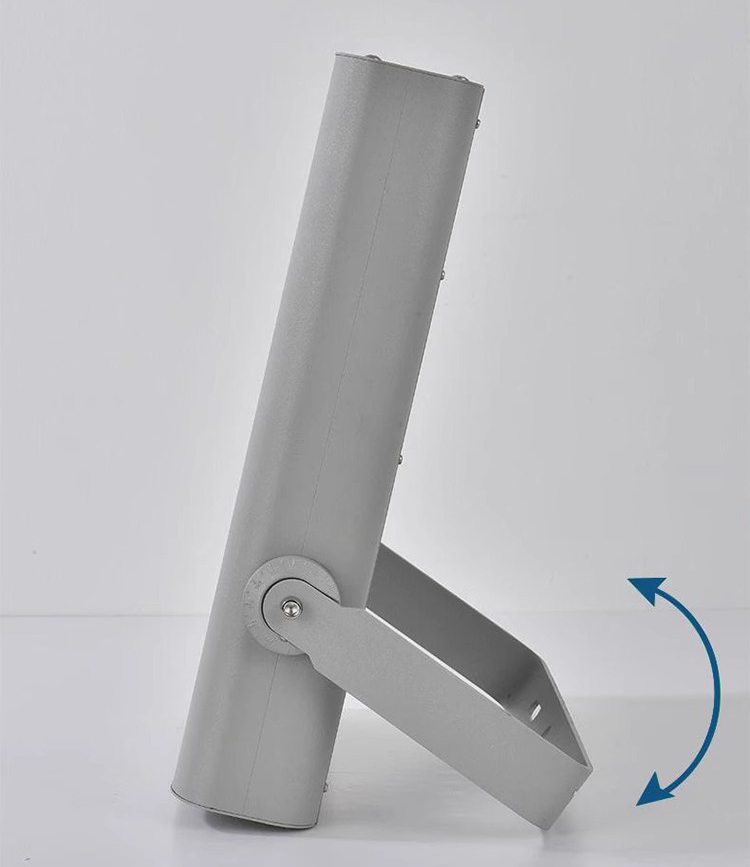

Adjustable bracket
Can be side-mounted or suspended — easy installation. Freely rotatable for flexible adjustment of lighting direction.


Wide range of applications
Suitable for tunnels, billboard lighting, parks and scenic areas, stadiums, and other engineering lighting applications — offering broad illumination coverage.

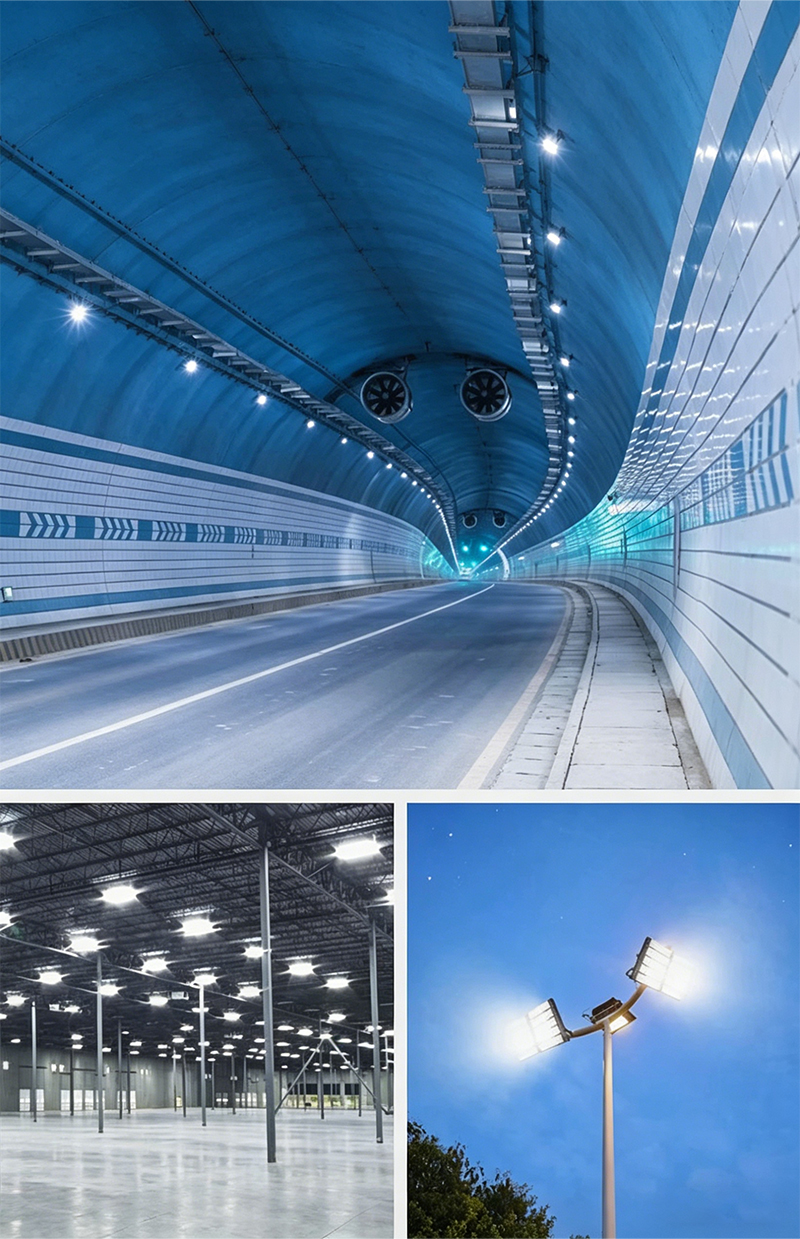

  1. Tunnel lighting

  2. Factory lighting

  3. Stadium lighting


Bright enough for large venues
Non-glaring light, high-brightness with lightning protection. Handles various sites with ease — 50W to 1000W wattage options available.

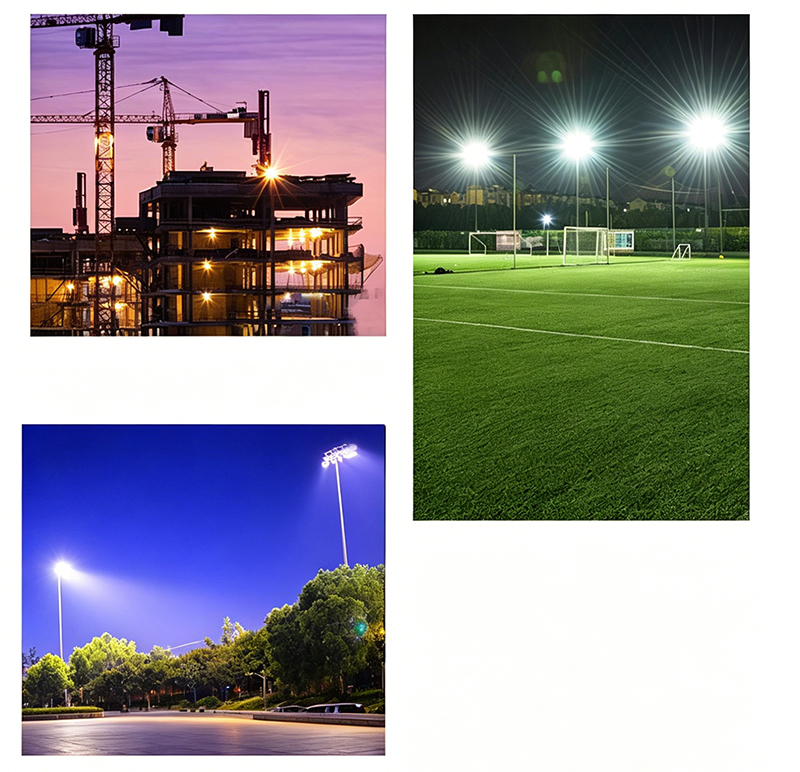

  1. Construction site lighting

  2. Football field lighting

  3. Square lighting


Installation Diagram:

  1. Secure the lamp to the desired installation location.

  2. Rotate and adjust the lighting angle.

  3. Connect the power wires — installation complete.
    Red (Live wire) / Blue (Neutral wire) / Yellow-Green (Ground wire)


  1. Wall-mounted

  2. Base-mounted

  3. Pendant / Ceiling-mounted

  4. High mast-mounted


Product details are as follows in the table:

Product Specifications50W100W150W200W250W300W400W500W600W
Lamp Body Dimensions310*75*75 mm
310*75*155 mm
310*75*230 mm
310*75*320 mm
310*75*400 mm
310*75*480 mm
620*75*320 mm
620*75*400 mm
620*75*480 mm
MaterialAluminum + PC
LED Beads64 beads 2835
128 beads 2835
192 beads 2835
256 beads 2835
320 beads 2835
384 beads 2835
512 beads 2835
640 beads 2835
768 beads 2835
Protection RatingIP66
Beam Angle60° / 90° / 70° / 140° (optional)
Luminous Efficacy≥120 lm/W
