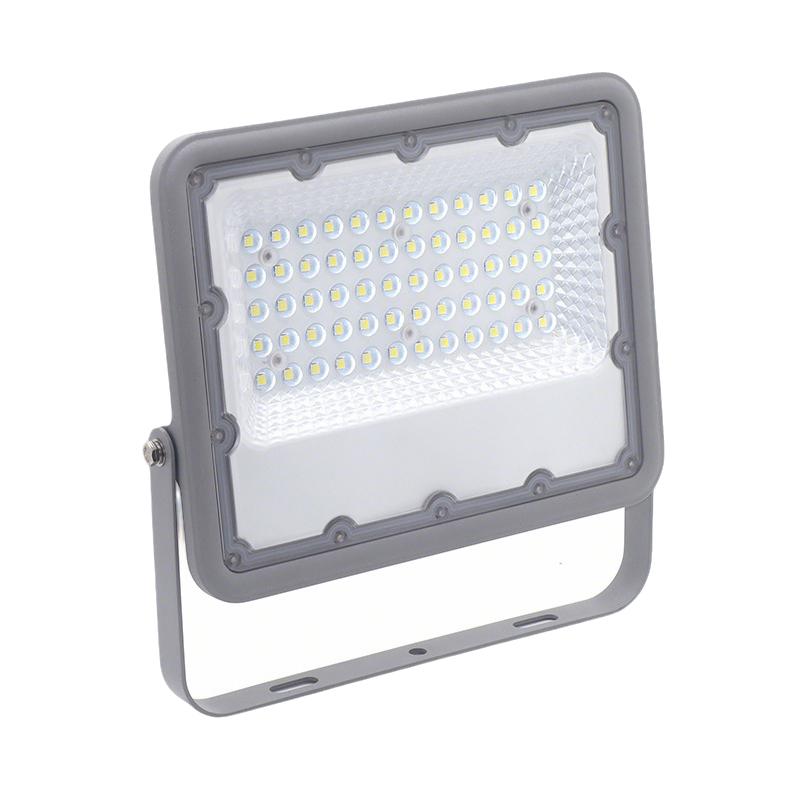

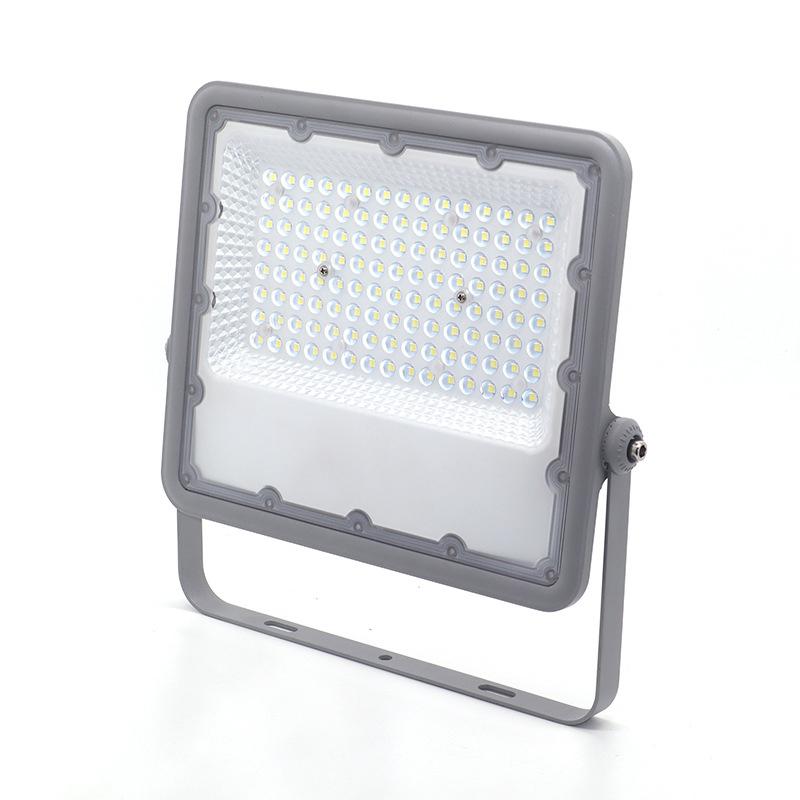

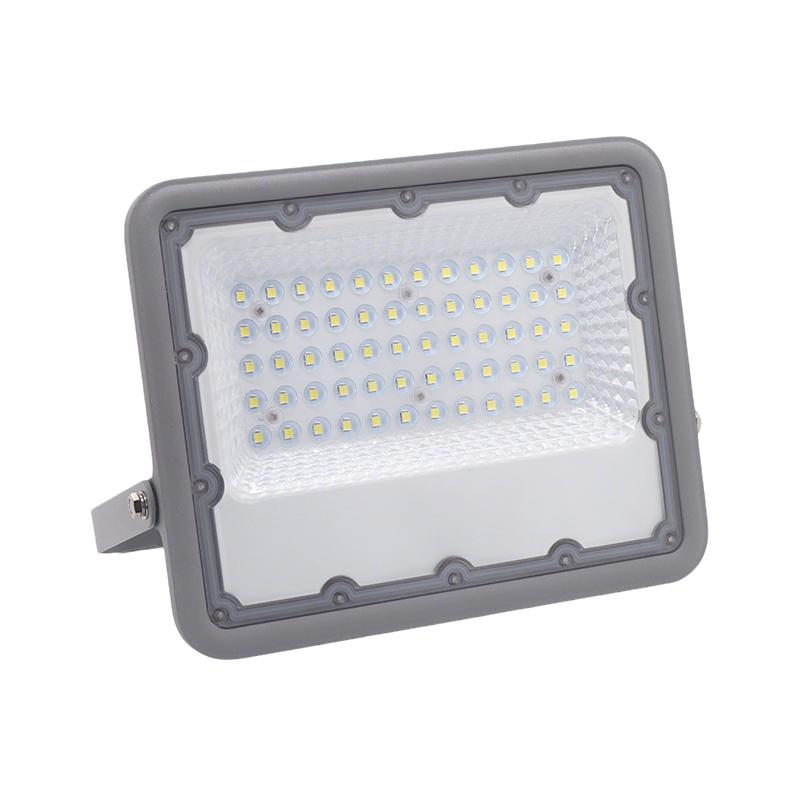

LED Floodlight

  • Product Name: LED Floodlight

  • Product Specifications: 50W, 100W, 150W, 200W

  • Input Voltage: 220 (V)

  • Power Supply Method: Socket power supply

  • Housing Material: Aluminum alloy

  • Power: 100

  • Protection Rating: IP65

  • Luminous Flux: 100 (LM)

  • Beam Angle: 120 (degrees)

  • True Power Rating: True power

  • Color Rendering Index: 80

  • Average Illuminance: 100

  • Lifespan: 50000H (Hours)

  • Operating Temperature: ≤60°C

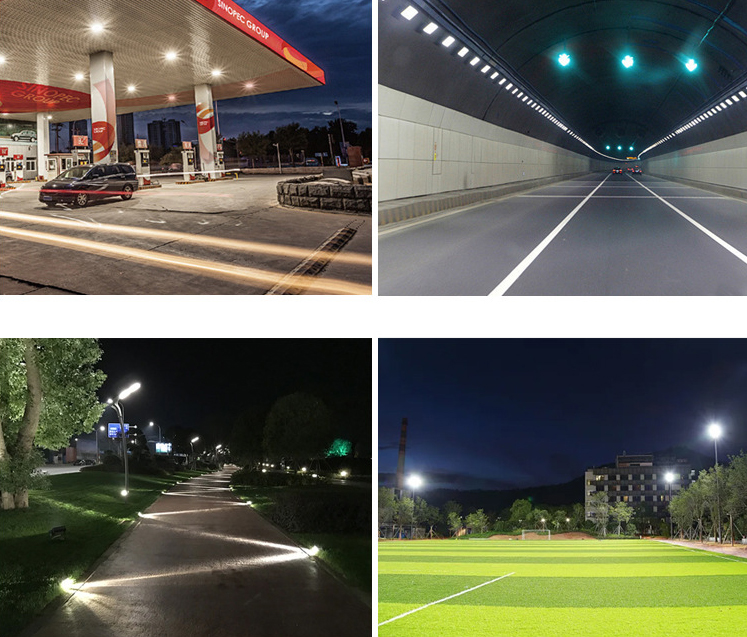

  • Applicable Places: Outdoor stadiums, parks, building exteriors, construction sites

Description

Brand-name chip


Adjustable installation angle


Integrated die-cast lamp body

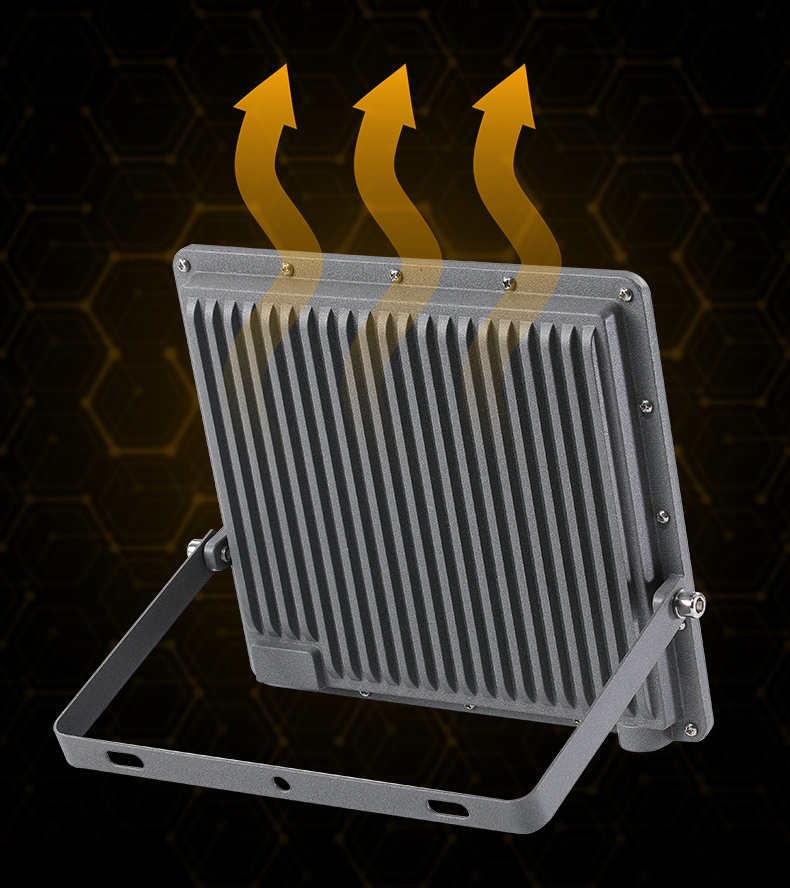

Optimized product heat dissipation structure design. The lamp temperature rise is well controlled, the temperature difference between inside and outside is small, heat is evenly distributed, and the luminous flux maintenance rate is high.


High-lumen chips are used.
Selected high-quality chips provide bright illumination, long service life, slow light decay, and low-carbon energy efficiency.

  • High luminous efficacy

  • Low light decay

  • Long lifespan

  • Low energy consumption

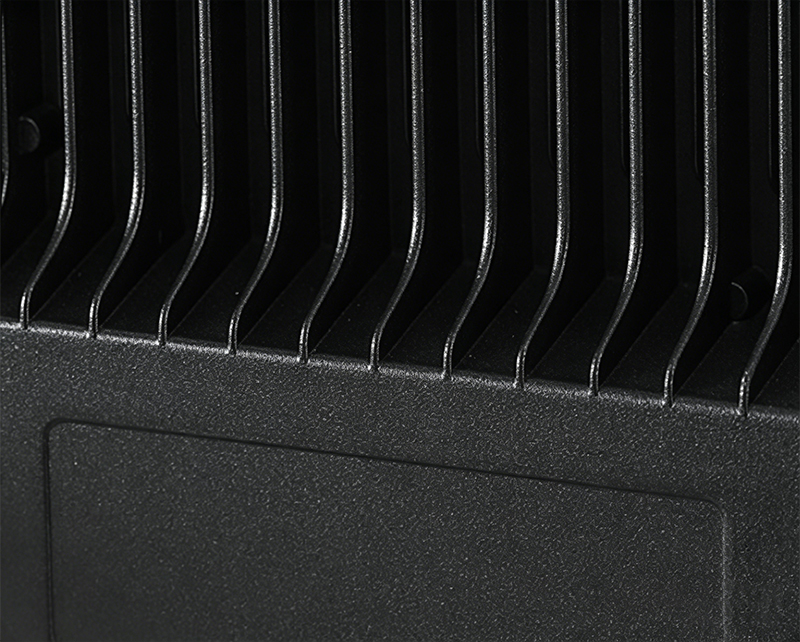

Integrated die-cast aluminum lamp body
The all-aluminum housing has the characteristic of rapid heat dissipation and can prevent rust and corrosion for a long time outdoors. This is a quality that plastic and iron housings cannot match.

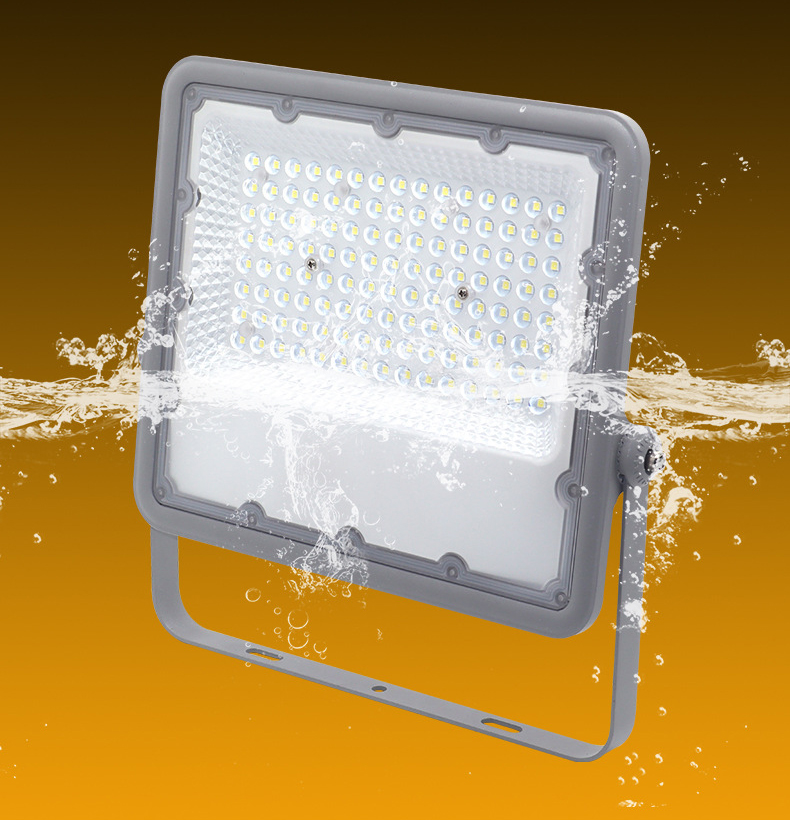

IP65 waterproof and dustproof rating
Waterproof connectors are used, featuring waterproofing, anti-siphon, and pressure balance functions, effectively preventing water accumulation caused by fogging due to large temperature differences between inside and outside.

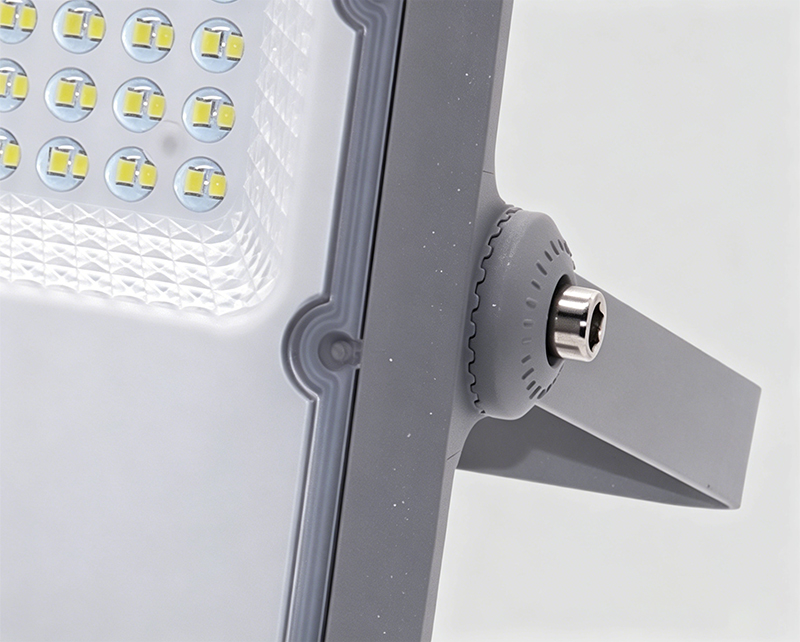

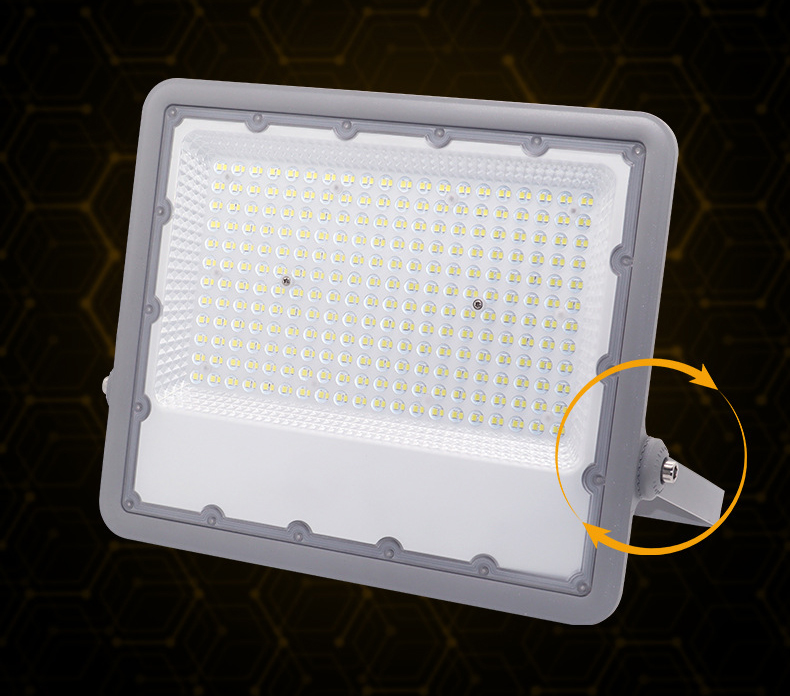

Adjustable angles for multi-directional lighting
Large-angle adjustable bracket allows flexible adjustment of lighting direction. Installation is unrestricted with wide applicability.


Multiple installation methods:

  • Wall mounting

  • Ceiling mounting

  • Pole mounting

  • Surface mounting

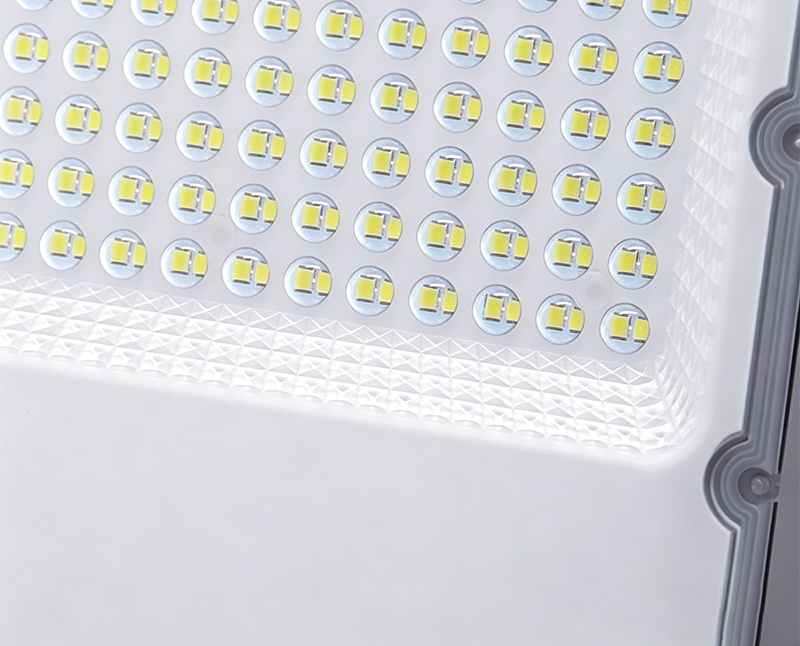

Optical PC lens
UV-resistant material, resistant to yellowing and high temperature with long-term use.

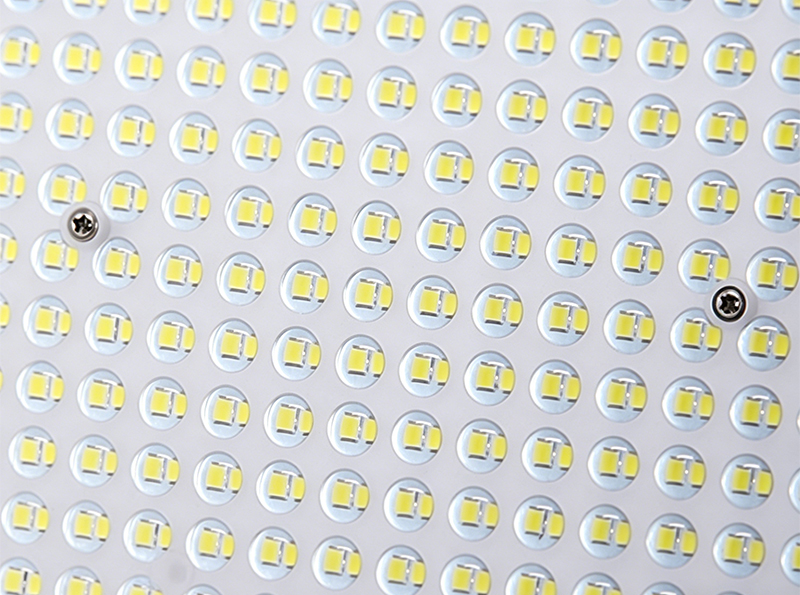

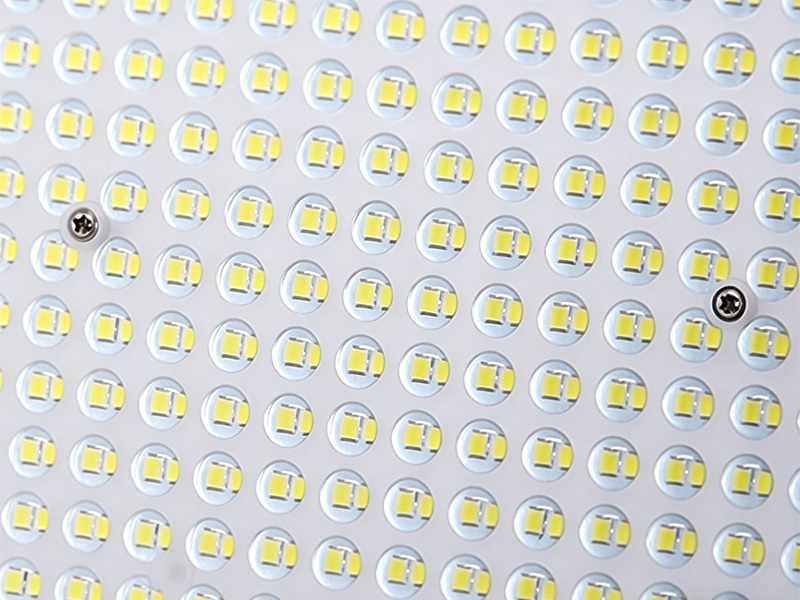

Brand-name lamp bead
Stronger luminous efficacy, illuminates farther.


Thickened glass cover
High-transparency glass cover with strong pressure resistance and high temperature resistance.


Aluminum lamp body
Made of aluminum with spray-painted surface treatment for anti-corrosion, rust prevention, and fade resistance.


The product details are as follows in the table below:

Product Model50W White Light AC180-265V100W White Light AC180-265V150W White Light AC180-265V200W White Light AC180-265V
Lamp Dimensions175*220*40mm
200*250*40mm255*295*40mm278*333*40mm
Package Dimensions46*25.5*37.5cm
46*29*42.5cm48*34.5*27.5cm47*39.5*29.5cm
Lamp Weight520g
660g
1000g1430g
LED Bead Type2835 1W / 6V 6500K
Number of lenses40
60120120
Lens angle90°


Aluminum substrate parameters2835 / 3030 6V (5C8B) (5C16B)2835 / 3030 6V (5C12B) (6C20B)2835 / 3030 6V (5C24B) (6C40B)2835 / 3030 6V (5C36B) (6C60B)
