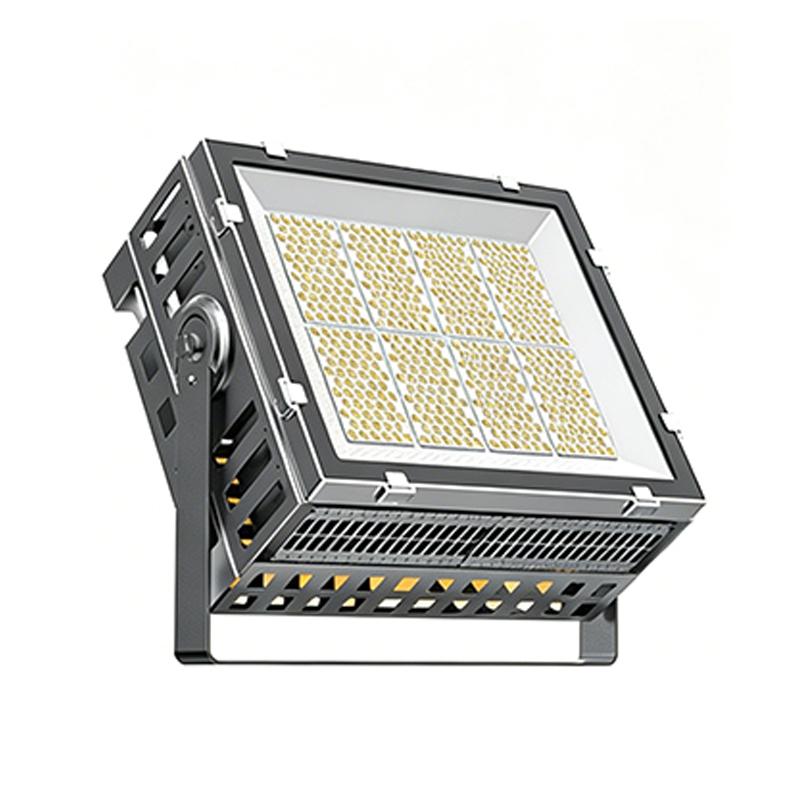

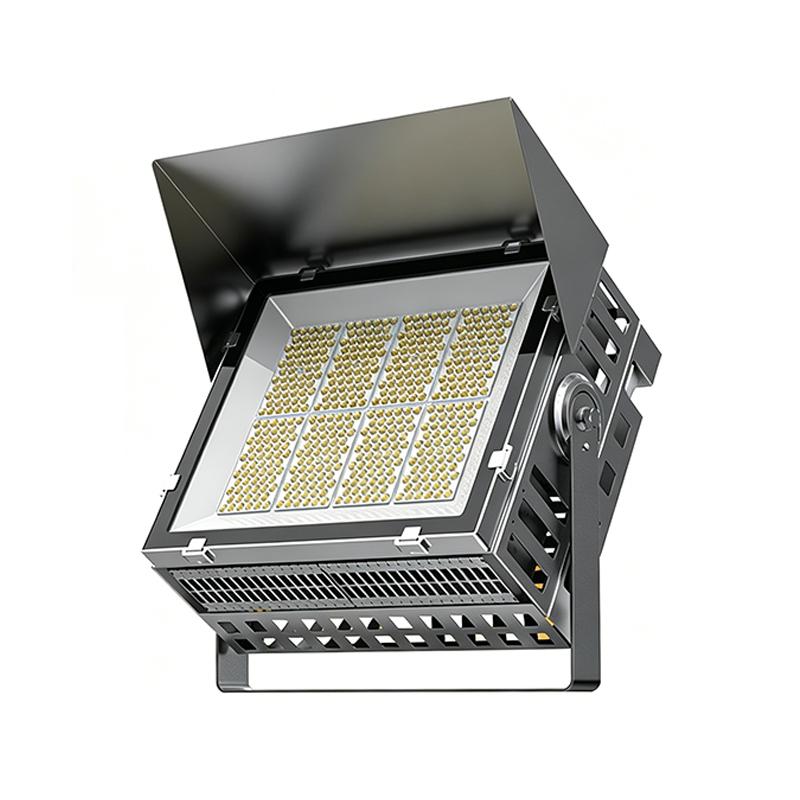

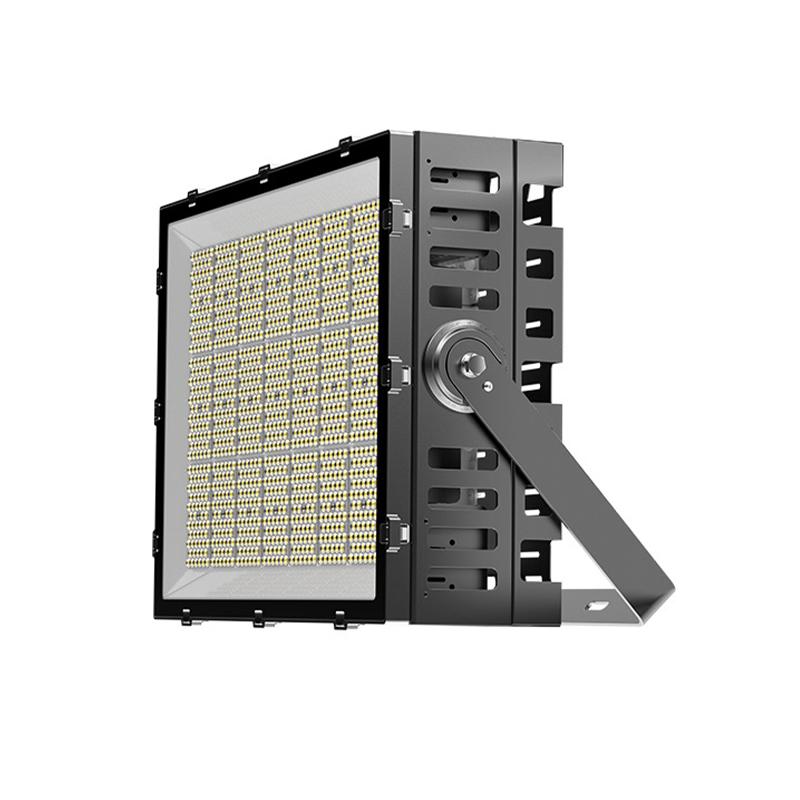

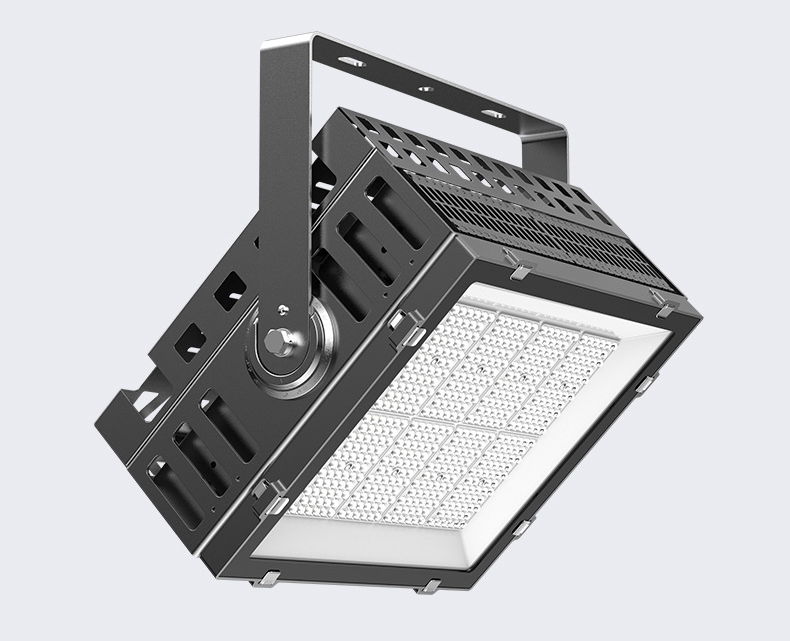

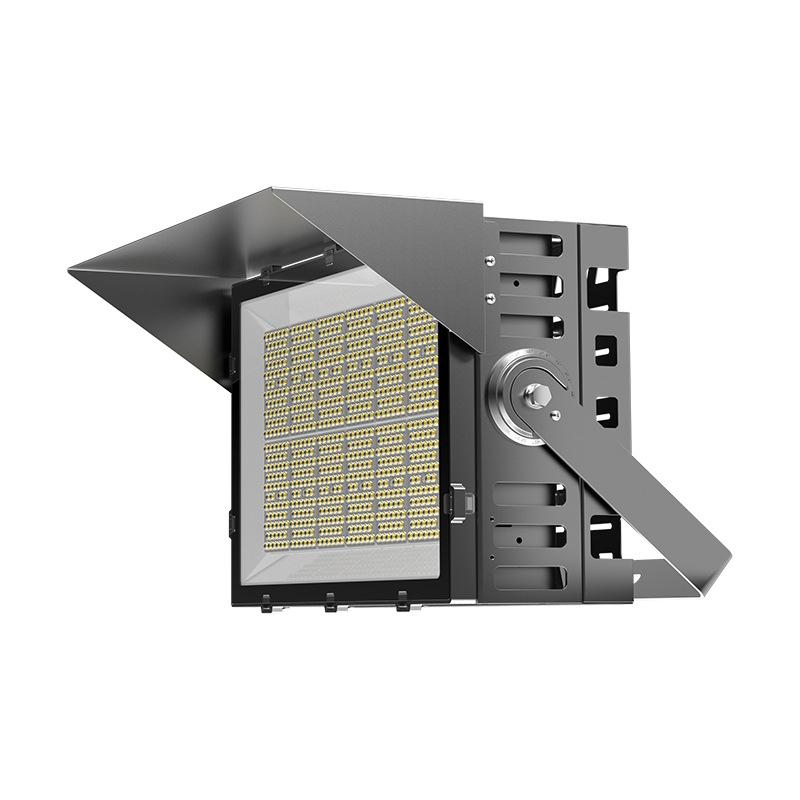

Floodlight

  • Product Name: Floodlight

  • Product Specifications: 300/400W, 500/600W, 1000/1200W

  • Input Voltage: AC85-265 (V)

  • Power Supply Method: Socket power supply

  • Housing Material: Aluminum

  • Protection Rating: IP65

  • Luminous Flux: 1000 (LM)

  • Beam Angle: 10/20/30/50/60/80/90 (degrees)

  • True Power Rating: True power

  • Color Rendering Index: 80

  • Average Illuminance: 120

  • Lifespan: 50000 (H)

  • Application Scenarios: Suitable for football fields, indoor stadiums, squares, construction sites, etc.

Description

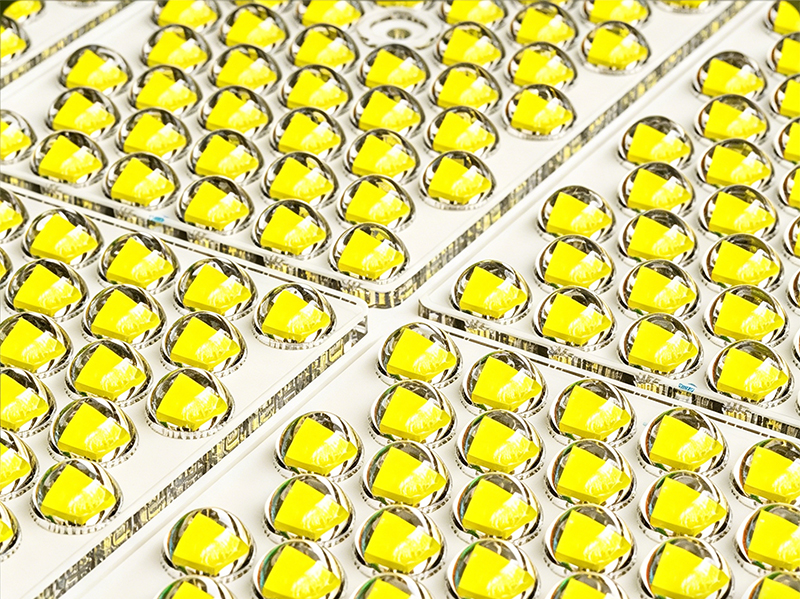

Optical lens chips are used.
Selected high-quality chips provide bright illumination, long service life, slow light decay, and low-carbon energy efficiency.

  • High luminous efficacy

  • Low light decay

  • Long lifespan

  • Low energy consumption

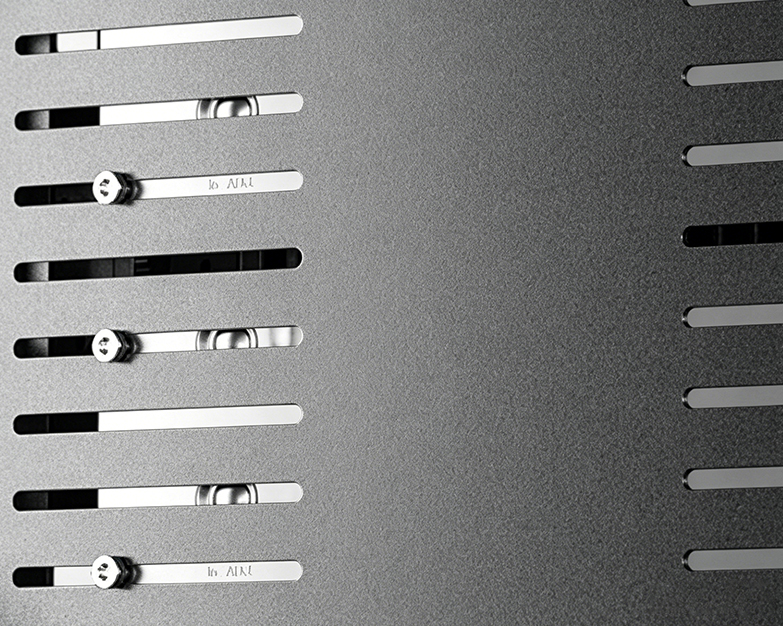

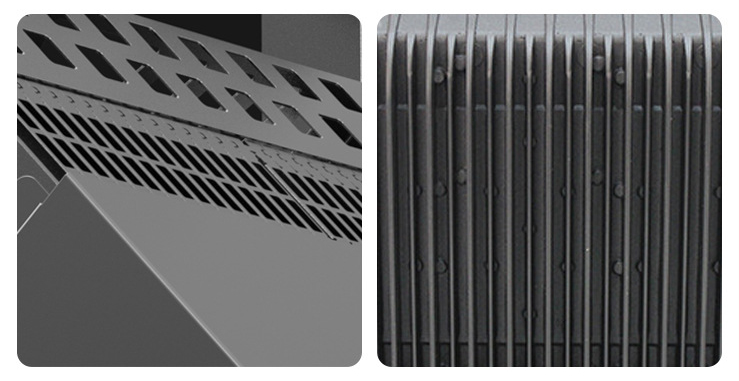

The key to a good stadium light lies in heat dissipation – newly upgraded fin heat dissipation housing
The temperature generated by high-power LED lights during operation can reach up to 125°C. When the temperature exceeds 75°C, the service life of the LED beads will be greatly reduced.


  • Newly Upgraded
    Fin Heat Dissipation Housing
    Upgraded heat dissipation housing, integrated molded back shell, environmentally friendly thickened aluminum material, strong corrosion resistance. The air strong convection heat dissipation design significantly improves heat dissipation performance index – comparable to upgrading from a traditional fan to a premium air conditioner.

  • Standard Model
    Standard Heat Sink
    Standard heat sink offers average heat dissipation performance and is not suitable for continuous high-power LED lighting.

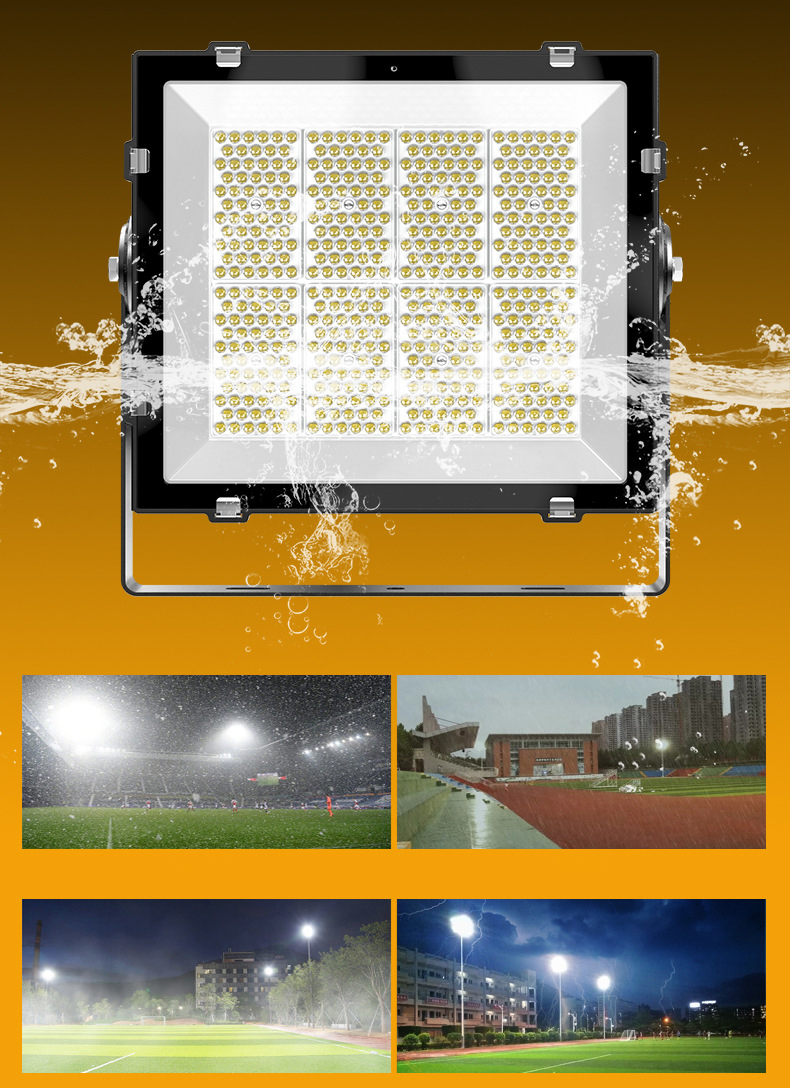

IP65 Waterproof and Dustproof Rating
Fully sealed waterproof design with waterproof lens potted and sealed. Can be used freely in harsh weather conditions such as heavy snow, high humidity, and heavy fog.

  1. Snowy weather

  2. Rainy weather

  3. Foggy weather

  4. Thunderstorm weather

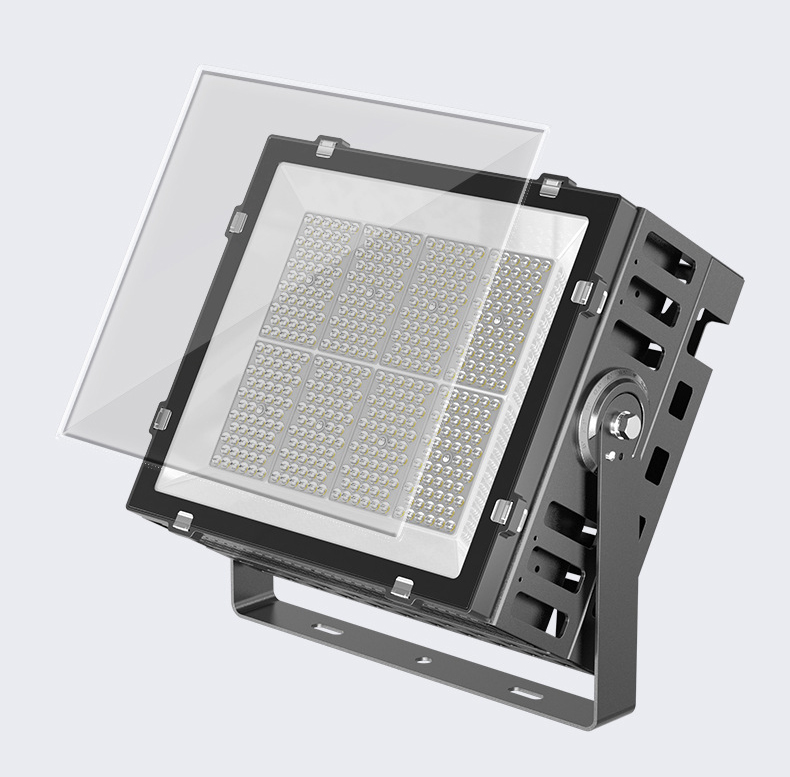

Waterproof glass cover
Made of tempered glass cover with multi-layer protection and thickened material, not easily damaged, high light transmittance, restores true light color.

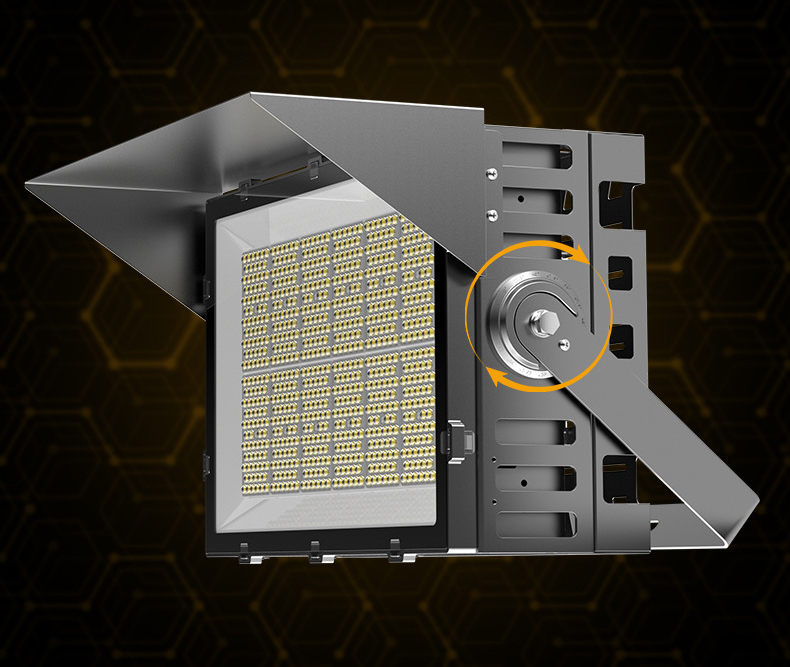

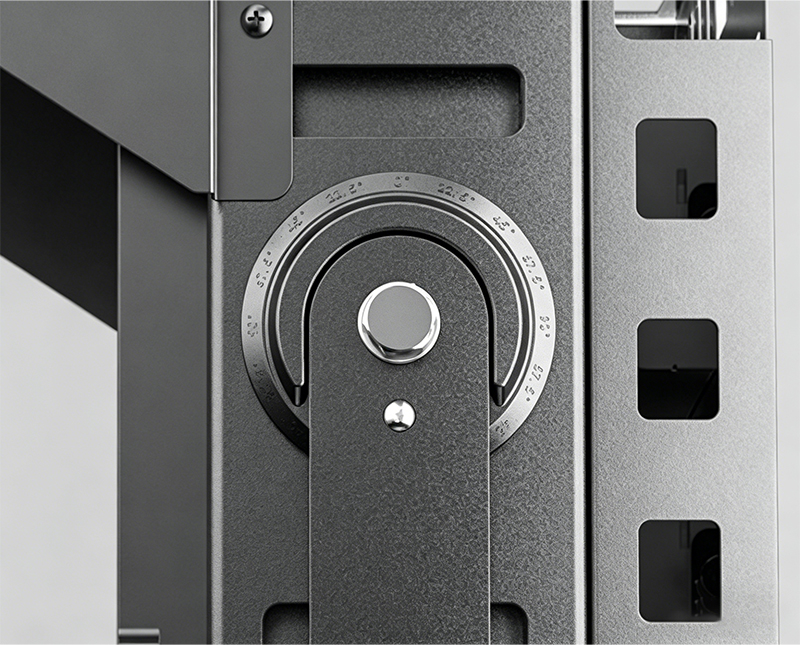

Adjustable angles for multi-directional lighting
High-strength rigid bracket allows free adjustment of lighting angle to suit different usage scenarios, ensuring stable installation of the lamp and resistance to damage.

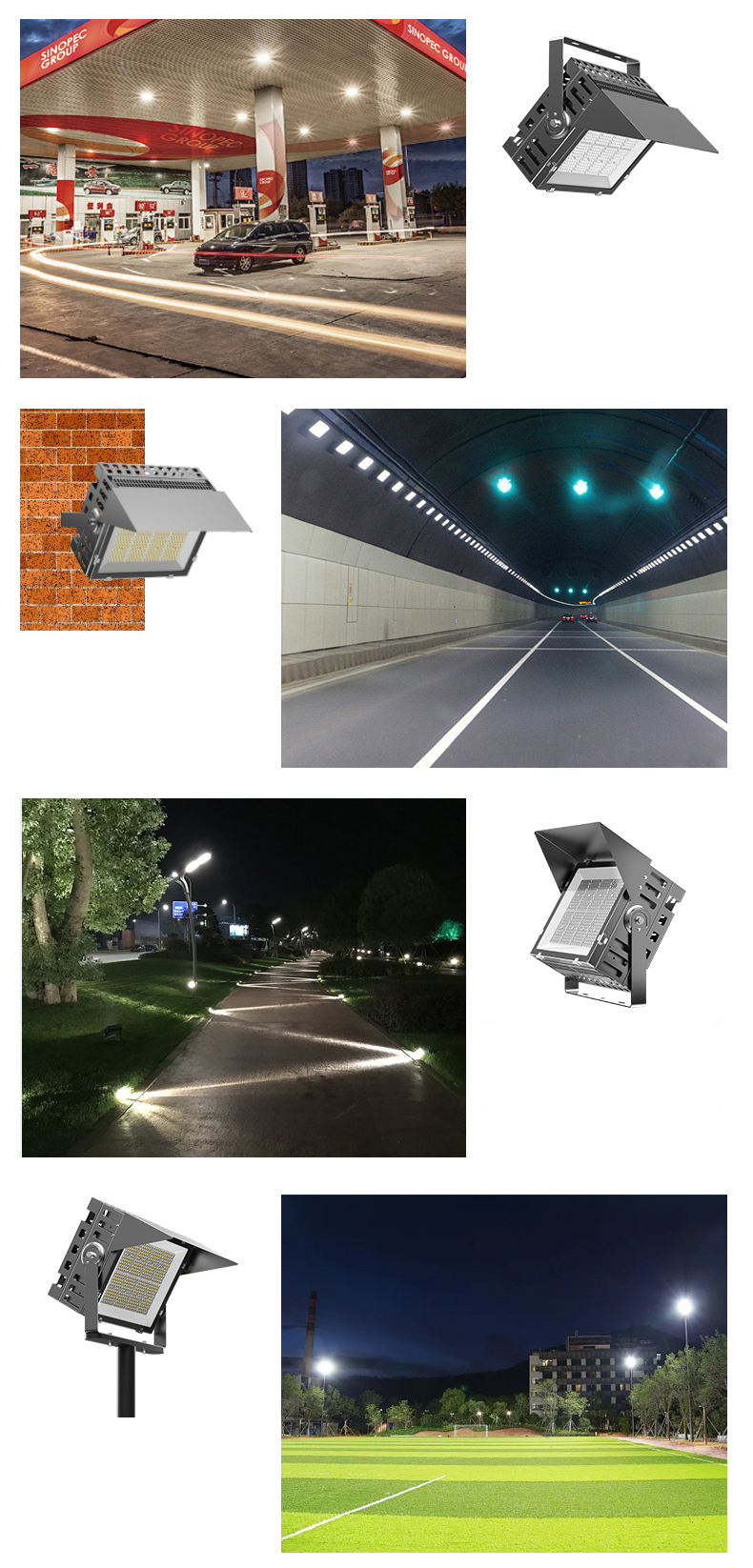

Multiple Installation Methods

  1. Ceiling mounting

  2. Wall mounting

  3. Free-standing mounting

  4. Pole rod mounting


Optical PC lens
UV-resistant material, resistant to yellowing and high temperature with long-term use.

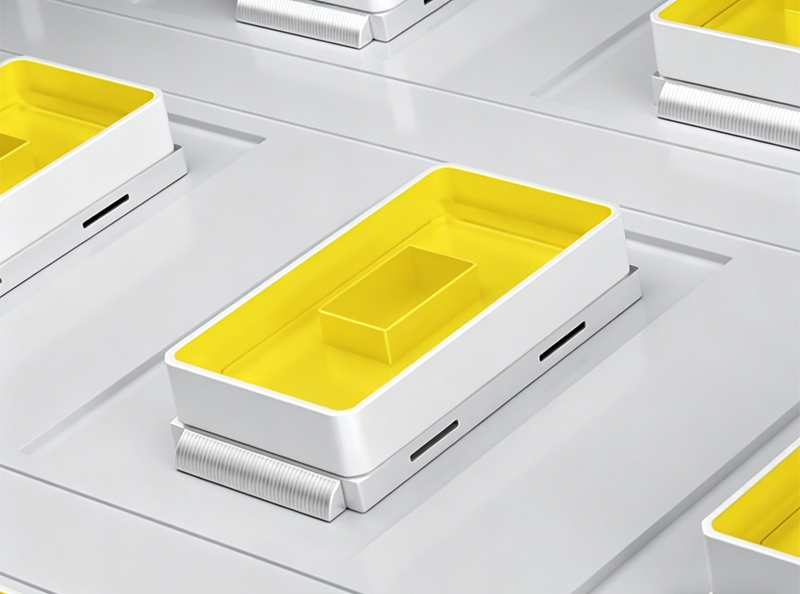

Brand-name lamp bead
Stronger luminous efficacy, illuminates farther.


Brand-name power supply
Sealed design of the compatible brand driver power supply ensures longer service life.


Aluminum lamp body
Made of aluminum with spray-painted surface treatment for anti-corrosion, rust prevention, and fade resistance.


The product details are as follows in the table below:

Product Specifications300/400W500/600W1000/1200W
Lamp MaterialAluminum
Protection RatingIP65
Lamp Color Temperature3000K / 4000K / 6500K
Luminous Efficacy / LM180 LM/W
Whole Lamp Dimensions393.8 × 372 × 163 mm514.2 × 372 × 163 mm576.2 × 473 × 163 mm
Package Dimensions410 × 410 × 210 mm530 × 410 × 210 mm590 × 510 × 215 mm
Lamp Body Weight6.6kg8.6kg13kg
Input Voltage90V-265V
Lamp Body + Package Weight8kg10.4kg15.6kg
Operating Temperature≤60°C
Number of LED Beads3030 - 480 pieces, 2525 - 480 pieces, 5050 - 96 pieces, 3535 - 96 pieces3030 - 720 pieces, 2525 - 720 pieces, 3535 - 144 pieces, 5050 - 144 pieces3030 - 1260 pieces, 2525 - 1260 pieces, 3535 - 252 pieces, 5050 - 252pieces
LED Bead Model and Series Configuration3030 - 60B8C, 2525 - 16B15C × 2, 3535 - 12C4B × 2, 5050 - 24B2C × 2 (Circuits are interconnected; can be connected to one or two power supplies)3030 - 45P8S × 2, 2525 - 24B15C × 2, 3535 - 12C6B × 2, 5050 - 36B2C × 2 3030 - 45B7C × 4, 2525 - 21B15C × 4, 3535 - 9P14X S2, 5050 - 63B2C × 2 (Can be connected to 2 or 4 power supplies)
Special Notes3030 - Lens angles: 30°, 60°, 90° / 2525 - Lens angles: 20°, 50°, 80°
3535 - Lens angle: 10° / 5050 - Lens angles: 10°, 30°, 60°
3030 - Lens angles: 30°, 60°, 90° / 2525 - Lens angles: 20°, 50°, 80°
3535 - Lens angle: 10° / 5050 - Lens angles: 10°, 30°, 60°
3030 - Lens angles: 30°, 60°, 90° / 2525 - Lens angles: 20°, 50°, 80°
3535 - Lens angle: 10° / 5050 - Lens angles: 10°, 30°, 60°
